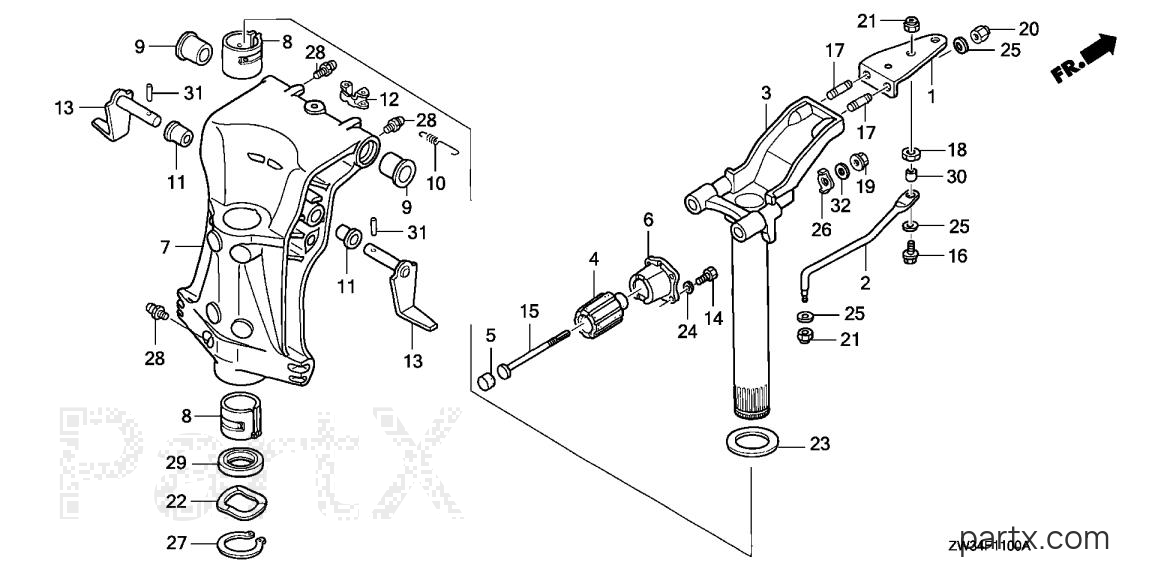

2005 Marine Engine BF - BF50A5 LHTA SWIVEL CASE diagram
003
Honda
FRAME, MOUNTING50100-ZW4-H02
Required: 1
FRAME, MOUNTING
N
$366.95
You save $91.25
004
Honda
RUBBER, MOUNTING50151-ZV5-000
Required: 2
RUBBER, MOUNTING (UPPER)
N
$75.24
You save $13.28
005
Honda
RUBBER, MOUNTING50153-ZV5-000
Required: 2
RUBBER, MOUNTING (UPPER) (B)
N
$4.45
You save $0.79
006
Honda
HLDR, MOUNTING *NH8*50167-ZV5-000ZA
Required: 2
HOLDER, MOUNTING (UPPER) *NH8*(DARK GRAY) (NOT AVAILABLE)
N
$43.04
You save $7.60
007
Required: 1
CASE, SWIVEL *NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
CASE, SWIVEL *NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
Price unavailable
008
Honda
LINER, SWIVEL CASE50211-ZV5-003
Required: 2
LINER, SWIVEL CASE
N
$9.42
You save $1.66
009
Honda
BUSH, SWIVEL CASE50214-ZV5-003
Required: 2
BUSH, SWIVEL CASE
N
$8.65
You save $1.53
010
Honda
SPRING, TILT LEVER50515-ZV5-000
Required: 1
SPRING, TILT LEVER
N
$3.65
You save $0.65
-50%
011
Honda
BUSH, TILT ARM50522-ZV5-000
Required: 2
BUSH, TILT ARM
N
In stock
Only 1 remaining
$3.80
You save $3.80
012
Honda
BRACKET, TILTING50527-ZV5-000
Required: 1
BRACKET, TILTING
N
$11.97
You save $2.11
013
Honda
STOPPER, TILT50529-ZW4-H00
Required: 2
STOPPER, TILT
N
$55.98
You save $9.88
014
Honda
BOLT, HEX. (6X18)90101-ZV1-000
Required: 8
BOLT, HEX. (6X18)
N
$3.21
You save $0.57
015
Honda
BOLT (10X130)90101-ZV5-003
Required: 2
BOLT, SPECIAL (10X130)
N
$52.41
You save $9.25
017
Honda
BOLT, STUD (10X28)90109-ZV5-000
Required: 2
BOLT, STUD (10X28)
N
$7.22
You save $1.28
019
Honda
NUT, FLANGE (10MM)90306-ZW4-003
Required: 2
NUT, FLANGE (10MM)
N
$4.90
You save $0.86
022
Honda
WASHER, WAVE (40MM)90501-ZV5-000
Required: 1
WASHER, WAVE (40MM)
N
$8.25
You save $1.46
023
Honda
WASHER (34MM)90504-ZV5-000
Required: 1
WASHER, THRUST (34MM)
N
$8.25
You save $1.46
024
Honda
WASHER, PLAIN (6MM)90506-ZV4-000
Required: 8
WASHER, PLAIN (6MM)
N
$2.77
You save $0.49
026
Honda
WASHER, SPECIAL90544-ZV5-020
Required: 2
WASHER, SPECIAL
N
$4.30
You save $0.76
027
Honda
CIRCLIP (39MM)90651-ZW4-000
Required: 1
CIRCLIP (OUTER) (39MM)
N
$5.98
You save $1.06
028
Honda
NIPPLE, GREASE90951-ZV7-010
Required: 3
NIPPLE, GREASE
N
In stock
Only 3 remaining
$2.14
You save $0.38
029
Honda
OIL SEAL (39.5X52X6)91256-ZV5-003
Required: 1
OIL SEAL (39.5X52X6) (ARAI)
N
$8.81
You save $1.55
031
Honda
PIN, SPRING (2.5X20)94305-25203
Required: 2
PIN, SPRING (2.5X20)
N
$1.55
You save $0.27
032
Honda
WASHER, PLAIN (10MM)90501-ZW4-000
Required: 2
WASHER, PLAIN (10MM)
N
$2.69
You save $0.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
