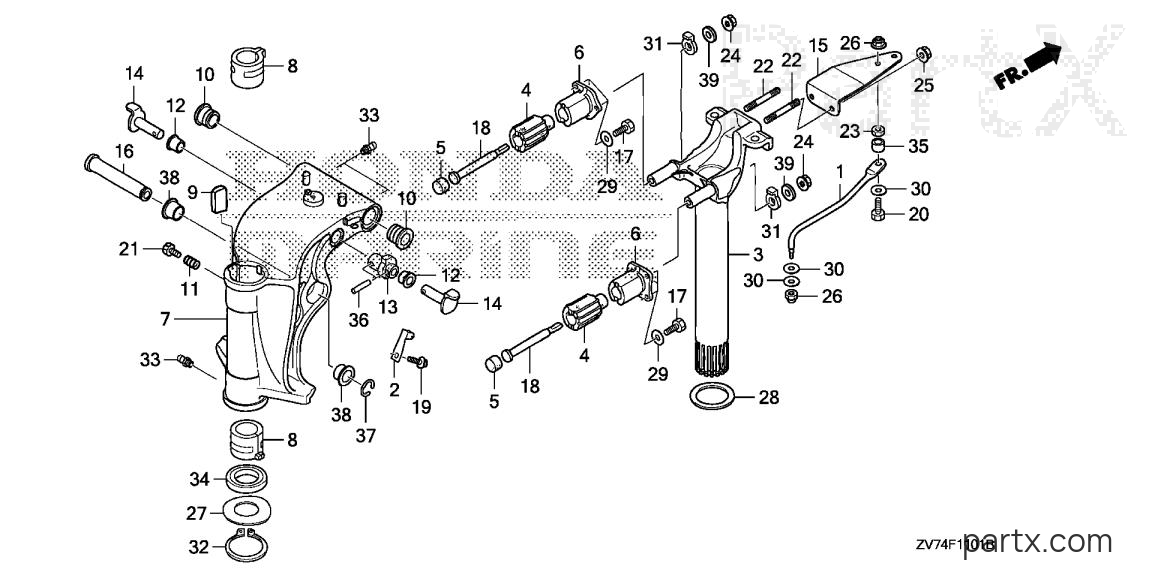

2004 Marine Engine BF - BF25D4 SRTA SWIVEL CASE (2) diagram
001
Honda
ROD, STEERING17853-ZV5-000
Required: 1
ROD, STEERING
N
$90.44
You save $15.96
002
Honda
SPRING, CLICK24210-ZV1-010
Required: 1
SPRING, CLICK
N
$11.59
You save $2.05
003
Honda
FRAME, MOUNTING50100-ZW2-F13
Required: 1
FRAME, MOUNTING
N
$393.01
You save $69.35
004
Honda
RUBBER, MOUNTING50151-ZV5-000
Required: 2
RUBBER, MOUNTING (UPPER)
N
$75.24
You save $13.28
005
Honda
RUBBER, MOUNTING50153-ZV5-000
Required: 2
RUBBER, MOUNTING (UPPER) (B)
N
$4.45
You save $0.79
006
Honda
HOLDER *NH282MU*50167-ZV7-000ZA
Required: 2
HOLDER, MOUNTING (UPPER) *NH282MU*(OYSTER SILVER METALLIC-U)
N
$54.96
You save $9.70
006
Honda
HOLDER, MOUNTING50167-ZV7-000
Required: 2
HOLDER, MOUNTING (UPPER)
N
$32.59
You save $5.75
007
Required: 1
CASE, SWIVEL *NH282MU*(OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
N
Price unavailable
007
Honda
CASE *NH282MU*50201-ZW2-F12ZA
Required: 1
CASE *NH282MU*
N
$315.03
You save $55.59
008
Honda
LINER, SWIVEL CASE50211-ZV5-003
Required: 2
LINER, SWIVEL CASE
N
$9.42
You save $1.66
010
Honda
BUSH, SWIVEL CASE50214-ZV5-003
Required: 2
BUSH, SWIVEL CASE
N
$8.65
You save $1.53
-50%
012
Honda
BUSH, TILT ARM50522-ZV5-000
Required: 2
BUSH, TILT ARM
N
In stock
Only 1 remaining
$3.80
You save $3.80
013
Honda
BRACKET, TILTING50527-ZY1-870
Required: 1
BRACKET, TILTING
N
$15.74
You save $2.78
014
Honda
STOPPER, TILT50529-ZY1-870
Required: 2
STOPPER, TILT
N
$46.07
You save $8.13
015
Honda
PLATE, STEERING53234-ZV7-781
Required: 1
PLATE, STEERING
N
$49.78
You save $8.78
016
Honda
PIN, CYLINDER56532-ZY1-870
Required: 1
PIN, CYLINDER (UPPER)
N
$21.47
You save $3.79
017
Honda
BOLT, HEX. (6X18)90101-ZV1-000
Required: 6
BOLT, HEX. (6X18)
N
$3.21
You save $0.57
018
Honda
BOLT (10X130)90101-ZV5-003
Required: 2
BOLT, SPECIAL (10X130)
N
$52.41
You save $9.25
019
Honda
BOLT, FLANGE (6X12)90102-ZW9-000
Required: 1
BOLT, FLANGE (6X12)
N
$2.40
You save $0.42
020
Honda
BOLT (3/8-24UNF)90105-ZV5-000
Required: 1
BOLT (3/8-24UNF)
N
$7.80
You save $1.38
022
Honda
BOLT, STUD (10X28)90109-ZV5-000
Required: 2
BOLT, STUD (10X28)
N
$7.22
You save $1.28
023
Honda
NUT (3/8-24UNF)90302-ZV5-000
Required: 1
NUT (3/8-24UNF)
N
$9.79
You save $1.73
024
Honda
NUT, FLANGE (10MM)90306-ZW4-003
Required: 2
NUT, FLANGE (10MM)
N
$4.90
You save $0.86
025
Honda
NUT (10MM)90306-ZV5-003
Required: 2
NUT, SELF-LOCK (10MM)
N
$3.84
You save $0.68
026
Honda
NUT (3/8-24UNF)90307-ZV5-003
Required: 2
NUT, SELF-LOCK (3/8-24UNF)
N
$7.31
You save $1.29
027
Honda
WASHER, WAVE (40MM)90501-ZV5-000
Required: 1
WASHER, WAVE (40MM)
N
$8.25
You save $1.46
028
Honda
WASHER (34MM)90504-ZV5-000
Required: 1
WASHER, THRUST (34MM)
N
$8.25
You save $1.46
029
Honda
WASHER, PLAIN (6MM)90506-ZV4-000
Required: 6
WASHER, PLAIN (6MM)
N
$2.77
You save $0.49
030
Honda
WASHER (10MM)90514-ZV4-000
Required: 3
WASHER (10MM)
N
$1.92
You save $0.34
031
Required: 2
WASHER, SPECIAL
N
Price unavailable
032
Honda
CIRCLIP (39MM)90651-ZW4-000
Required: 1
CIRCLIP (OUTER) (39MM)
N
$5.98
You save $1.06
033
Honda
NIPPLE, GREASE90951-ZV7-010
Required: 3
NIPPLE, GREASE
N
In stock
Only 3 remaining
$2.14
You save $0.38
034
Honda
OIL SEAL (39.5X52X6)91256-ZV5-003
Required: 1
OIL SEAL (39.5X52X6) (ARAI)
N
$8.81
You save $1.55
-50%
035
Honda
COLLAR, STEERING ROD91560-ZV5-000
Required: 1
COLLAR, STEERING ROD
N
In stock
Only 1 remaining
$2.04
You save $2.04
036
Honda
PIN, SPRING (2.5X20)94305-25203
Required: 2
PIN, SPRING (2.5X20)
N
$1.55
You save $0.27
037
Honda
E-RING (15MM)94540-15029
Required: 1
E-RING (15MM)
N
$9.06
You save $1.60
038
Honda
BUSH, CYLINDER56513-ZV5-000
Required: 2
BUSH, CYLINDER (LOWER)
N
$4.27
You save $0.75
039
Honda
WASHER, PLAIN (10MM)90501-ZW4-000
Required: 2
WASHER, PLAIN (10MM)
N
$2.69
You save $0.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
