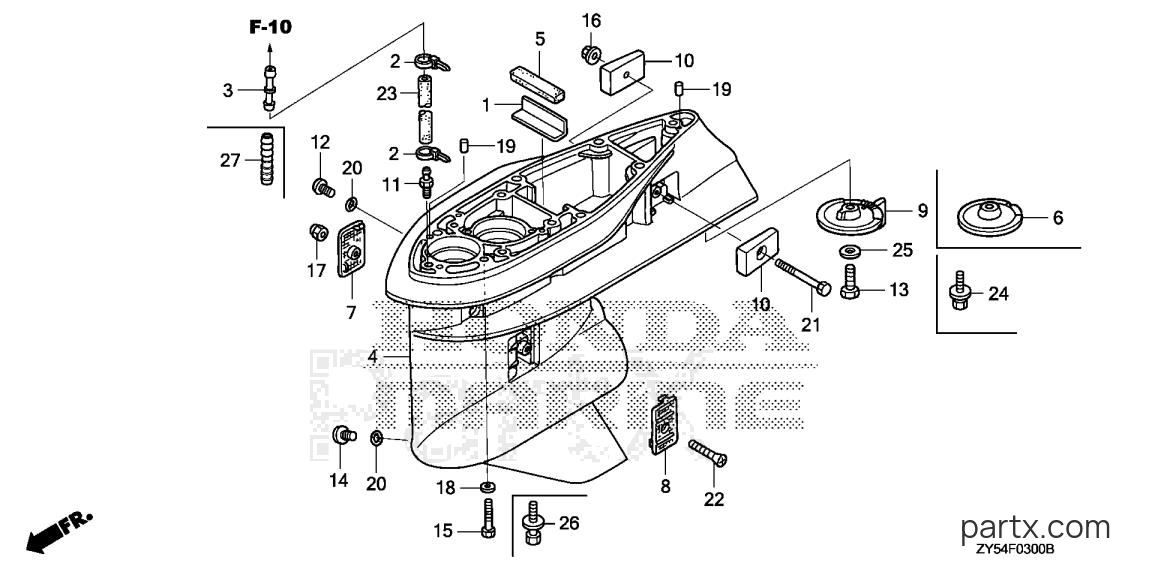

2007 And Later Marine Engine BF - BF135AK0 XCA GEAR CASE diagram
001
Honda
PLATE19286-ZW1-B00
Required: 1
PLATE, RUBBER SETTING
N
$7.11
You save $1.25
002
Honda
BAND, WIRE32161-KM3-003
Required: 2
BAND, WIRE
N
$2.94
You save $0.52
003
Honda
JOINT B, WASHER TUBE38562-663-920
Required: 1
JOINT B, WASHER TUBE (MITSUBA)
N
$9.32
You save $1.64
004
Honda
CASE, GEAR *NH282MU*41101-ZY6-020ZA
Required: 1
CASE, GEAR *NH282MU*(OYSTER SILVER METALLIC-U)
N
$859.43
You save $151.67
005
Honda
GROMMET, GEAR CASE41102-ZW1-B00
Required: 1
GROMMET, GEAR CASE
N
$7.11
You save $1.25
007
Honda
SCREEN, R. WATER41104-ZY6-000
Required: 1
SCREEN, R. WATER
N
$10.88
You save $1.92
008
Honda
SCREEN, L. WATER41105-ZY6-000
Required: 1
SCREEN, L. WATER
N
$10.88
You save $1.92
009
Required: 1
TAB, TRIM *NH282MU*(OYSTER SILVER METALLIC-U)
N
Price unavailable
009
Honda
TAB,TRIM*NH282MU*41107-ZX2-C00ZB
Required: 1
TAB,TRIM*NH282MU*
N
$45.77
You save $8.08
010
Honda
METAL, ANODE41109-ZW1-B00
Required: 2
METAL, ANODE
N
$20.48
You save $3.62
011
Honda
NIPPLE, SENSOR41172-ZV5-000
Required: 1
NIPPLE, SENSOR
N
$8.65
You save $1.53
012
Honda
BOLT, OIL CHECK90101-ZW9-003
Required: 1
BOLT, OIL CHECK
N
$2.98
You save $0.74
013
Honda
BOLT, HEX. (10X32)90103-ZY3-000
Required: 1
BOLT, HEX. (10X32)
N
$6.09
You save $1.07
014
Honda
BOLT, DRAIN PLUG90120-ZY3-000
Required: 1
BOLT, DRAIN PLUG
N
$16.22
You save $2.86
015
Honda
BOLT, HEX. (10X40)90123-ZV5-010
Required: 7
BOLT, HEX. (10X40)
N
$7.36
You save $1.30
016
Honda
NUT, SELF-LOCK (6MM)90205-PP9-020
Required: 1
NUT, SELF-LOCK (6MM)
N
$10.01
You save $1.77
016
Honda
NUT, SELF-LOCK (6MM)90205-ZY1-000
Required: 1
NUT, SELF-LOCK (6MM)
N
$5.39
You save $0.95
017
Honda
NUT, SELF-LOCK (5MM)90302-ZV4-000
Required: 1
NUT, SELF-LOCK (5MM)
N
$5.54
You save $0.98
018
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 7
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
019
Honda
PIN, DOWEL (6X10)90756-ZV5-000
Required: 2
PIN, DOWEL (6X10)
N
$2.99
You save $0.53
020
Honda
O-RING (6.9X1.45)91301-ZW4-003
Required: 2
O-RING (6.9X1.45)
N
$1.06
You save $0.26
021
Honda
BOLT, HEX. (6X50)92101-06050-4J
Required: 1
BOLT, HEX. (6X50)
N
$1.36
You save $0.24
022
Honda
SCREW, OVAL (5X50)93700-05050-4J
Required: 1
SCREW, OVAL (5X50)
N
$2.65
You save $0.47
023
Honda
BULK HOSE (5X3000)95005-50003-30M
Required: 1
BULK HOSE, VACUUM (5X3000) OEM CUT SIZE: (5X270)
N
$25.02
You save $4.42
024
Honda
BOLT-WASHER (10X32)90103-ZY6-000
Required: 1
BOLT-WASHER (10X32)
N
$3.52
You save $0.62
025
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 1
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
026
Honda
BOLT-WASHER (10X40)90123-ZY6-000
Required: 7
BOLT-WASHER (10X40)
N
$7.29
You save $1.29
027
Honda
END, NIPPLE41171-ZV5-000
Required: 1
END, NIPPLE
N
$6.83
You save $1.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
