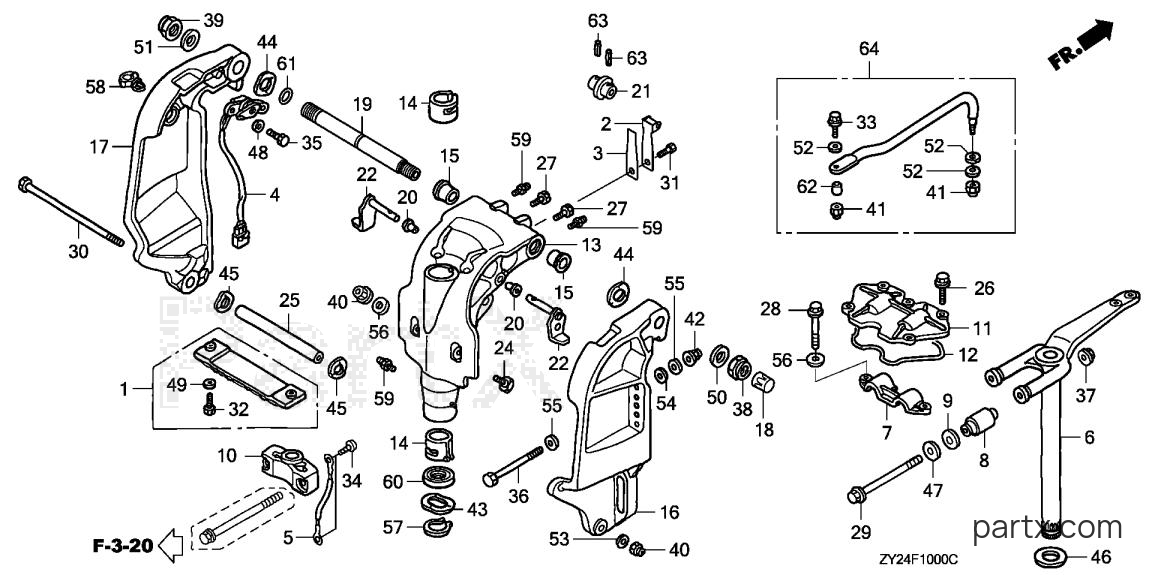

2004 Marine Engine BF - BF225A4 LA STERN BRACKET - SWIVEL CASE diagram
001
Honda
METAL KIT, ANODE06411-ZW1-020
Required: 1
METAL KIT, ANODE
N
$42.88
You save $7.57
002
Honda
SPRING, CLICK24210-ZV1-010
Required: 1
SPRING, CLICK
N
$11.59
You save $2.05
003
Honda
SPRING, CLICK ASSIST24221-ZV4-010
Required: 1
SPRING, CLICK ASSIST
N
$8.25
You save $1.46
004
Honda
SENSOR, TRIM ANGLE35660-ZY3-003
Required: 1
SENSOR ASSY., TRIM ANGLE
N
$202.76
You save $35.78
005
Honda
WIRE (1.5X116MM)40219-ZY3-023
Required: 1
WIRE, LEAD (1.5X116MM)
N
$10.23
You save $1.81
006
Honda
FRAME, MOUNTING50100-ZY3-610
Required: 1
FRAME, MOUNTING (XL) (NOT AVAILABLE)
N
$1126.47
You save $198.79
007
Honda
HOUSING, MOUNTING50109-ZY3-000
Required: 1
HOUSING, MOUNTING (UPPER)
N
$47.35
You save $8.36
008
Honda
MNT, RUBBER (UPPER)50151-ZY3-000
Required: 2
MOUNT, RUBBER (UPPER)
N
$74.10
You save $13.08
009
Honda
RUB, MOUNT STOPPER50153-ZY3-000
Required: 2
RUBBER, MOUNT STOPPER (UPPER)
N
$6.85
You save $1.21
010
Honda
HOUSING (LOWER)50161-ZY3-610
Required: 1
HOUSING, CENTER MOUNTING (LOWER) (XL)
N
$93.73
You save $16.54
011
Honda
COVER, MOUNT (UPPER)50166-ZY3-000
Required: 1
COVER, MOUNT (UPPER)
N
$74.97
You save $13.23
012
Honda
SEAL, MOUNT COVER50168-ZY3-000
Required: 1
SEAL, MOUNT COVER (UPPER)
N
$13.77
You save $2.43
013
Honda
CASE *NH282MU*50201-ZY3-610ZA
Required: 1
CASE, SWIVEL *NH282MU* (XL)(OYSTER SILVER METALLIC-U)
N
$1043.15
You save $184.09
014
Honda
LINER, SWIVEL CASE50211-ZY3-000
Required: 2
LINER, SWIVEL CASE
N
$8.19
You save $1.45
015
Honda
BUSH, SWIVEL CASE50214-ZY3-000
Required: 2
BUSH, SWIVEL CASE
N
$11.88
You save $2.10
016
Honda
BRKT, R. *NH282MU*50301-ZY3-030ZA
Required: 1
BRKT, R. *NH282MU*
N
$435.97
You save $76.94
017
Honda
BRKT, L. *NH282MU*50311-ZY3-020ZA
Required: 1
BRACKET, L. STERN *NH282MU*(OYSTER SILVER METALLIC-U)
N
$473.35
You save $83.53
018
Honda
CAP, TILTING BOLT50331-ZV5-000
Required: 1
CAP, TILTING BOLT
N
$6.65
You save $1.17
019
Honda
SHAFT, TILTING50381-ZY3-000
Required: 1
SHAFT, TILTING
N
$119.99
You save $21.17
020
Honda
BUSH, TILT ARM50522-ZY3-000
Required: 2
BUSH, TILT ARM
N
$9.06
You save $1.60
021
Honda
BRACKET, TILTING50527-ZY3-000
Required: 1
BRACKET, TILTING
N
$11.71
You save $2.07
022
Honda
STOPPER, TILT50529-ZVL-000
Required: 2
STOPPER, TILT
N
$80.63
You save $14.23
024
Required: 2
RECEIVER, THRUST (NOT AVAILABLE)
N
Price unavailable
025
Honda
COLLAR, CYLINDER56539-ZZ0-C00
Required: 1
COLLAR, CYLINDER (LOWER)
N
$72.40
You save $12.78
026
Honda
BOLT, FLANGE (6X20)90005-ZW9-030
Required: 7
BOLT, FLANGE (6X20)
N
$2.09
You save $0.37
027
Honda
BOLT (1/4-28UNF)90102-ZW1-000
Required: 2
BOLT (1/4-28UNF)
N
$7.94
You save $1.40
028
Honda
BOLT, HEX. (10X32)90103-ZY3-000
Required: 3
BOLT, HEX. (10X32)
N
$6.09
You save $1.07
029
Honda
BOLT, HEX. (12X200)90104-ZY3-010
Required: 2
BOLT, HEX. (12X200)
N
$47.65
You save $8.41
030
Honda
BOLT, HEX. (10X235)90108-ZW1-000
Required: 1
BOLT, HEX. (10X235)
N
$40.56
You save $7.16
031
Honda
BOLT, HEX. (6X14)90110-881-000
Required: 1
BOLT, HEX. (6X14)
N
$2.40
You save $0.42
-50%
032
Honda
BOLT, HEX. (6X25)90113-ZV5-000
Required: 2
BOLT, HEX. (6X25)
N
In stock
Only 1 remaining
$1.73
You save $1.73
033
Honda
BOLT (3/8-24UNF)90117-ZY3-000
Required: 1
BOLT (3/8-24UNF)
N
$4.28
You save $0.76
034
Honda
SCREW, PAN (6X8)90119-ZV5-000
Required: 2
SCREW, PAN (6X8)
N
$1.87
You save $0.33
035
Honda
BOLT, HEX. (6X20)90124-ZV4-000
Required: 2
BOLT, HEX. (6X20)
N
$2.40
You save $0.42
036
Honda
BOLT, HEX. (12X119)90129-ZW1-010
Required: 4
BOLT, HEX. (12X119)
N
$21.34
You save $3.77
036
Honda
BOLT, HEX. (12X119)90129-ZW1-010
Required: 6
BOLT, HEX. (12X119)
N
$21.34
You save $3.77
037
Honda
NUT, FLANGE (12MM)90302-ZW5-003
Required: 2
NUT, FLANGE (12MM)
N
$6.95
You save $1.23
038
Required: 1
NUT, SELF-LOCK (7/8-14UNF)
N
Price unavailable
038
Honda
NUT (7/8-14UNF)90304-ZV5-013
Required: 1
NUT, SELF-LOCK (7/8-14UNF)
N
$20.01
You save $3.53
039
Required: 1
NUT, SELF-LOCK (M25X2.0)
N
Price unavailable
039
Honda
NUT (25X2.0)90304-ZW1-013
Required: 1
NUT, SELF-LOCK (25X2.0)
N
$22.25
You save $3.93
040
Honda
NUT (10MM)90306-ZV5-003
Required: 3
NUT, SELF-LOCK (10MM)
N
$3.84
You save $0.68
041
Honda
NUT (3/8-24UNF)90307-ZV5-003
Required: 2
NUT, SELF-LOCK (3/8-24UNF)
N
$7.31
You save $1.29
042
Honda
NUT (12MM)90308-ZW1-003
Required: 4
NUT, SELF-LOCK (12MM)
N
$11.49
You save $2.03
042
Honda
NUT (12MM)90308-ZW1-003
Required: 6
NUT, SELF-LOCK (12MM)
N
$11.49
You save $2.03
043
Honda
WASHER, WAVE (40MM)90501-ZV5-000
Required: 1
WASHER, WAVE (40MM)
N
$8.25
You save $1.46
044
Honda
WASHER, WAVE (26MM)90502-ZV5-000
Required: 2
WASHER, WAVE (26MM)
N
$9.86
You save $1.74
045
Honda
WASHER, WAVE (32MM)90502-ZW1-000
Required: 2
WASHER, WAVE (32MM)
N
$6.56
You save $1.16
046
Honda
WASHER (34MM)90504-ZV5-000
Required: 1
WASHER, THRUST (34MM)
N
$8.25
You save $1.46
047
Required: 2
WASHER, MOUNTING STOPPER (UPPER) (12.1X48.0X5.0)
N
Price unavailable
048
Honda
WASHER, PLAIN (6MM)90504-921-010
Required: 2
WASHER, PLAIN (6MM)
N
$1.43
You save $0.25
049
Honda
WASHER, PLAIN (6MM)90506-ZV4-000
Required: 2
WASHER, PLAIN (6MM)
N
$2.77
You save $0.49
050
Honda
WASHER (7/8") "90509-ZY3-000
Required: 1
WASHER (7/8")
N
$1.34
You save $0.24
051
Honda
WASHER (25MM)90510-ZY3-000
Required: 1
WASHER (25MM)
N
$5.30
You save $0.94
052
Honda
WASHER (10MM)90514-ZV4-000
Required: 3
WASHER (10MM)
N
$1.92
You save $0.34
053
Honda
WASHER, PLAIN (10MM)90545-ZV5-000
Required: 1
WASHER, PLAIN (10MM)
N
$3.08
You save $0.54
054
Honda
WASHER, PLAIN (12MM)90552-ZV5-000
Required: 4
WASHER, PLAIN (12MM)
N
$5.29
You save $0.93
054
Honda
WASHER, PLAIN (12MM)90552-ZV5-000
Required: 6
WASHER, PLAIN (12MM)
N
$5.29
You save $0.93
055
Honda
WASHER, PLAIN (12MM)90559-ZV5-000
Required: 8
WASHER, PLAIN (12MM)
N
$3.14
You save $0.78
055
Honda
WASHER, PLAIN (12MM)90559-ZV5-000
Required: 12
WASHER, PLAIN (12MM)
N
$3.14
You save $0.78
056
Honda
WASHER, PLAIN (10MM)90563-ZV5-000
Required: 5
WASHER, PLAIN (10MM)
N
$2.75
You save $0.49
057
Honda
CIRCLIP (39MM)90651-ZV5-000
Required: 1
CIRCLIP (OUTER) (39MM)
N
$8.87
You save $1.57
058
Honda
CLIP, WIRE HARNESS90681-763-A01
Required: 1
CLIP, WIRE HARNESS
N
$9.11
You save $1.61
059
Honda
NIPPLE, GREASE90951-ZV7-010
Required: 3
NIPPLE, GREASE
N
In stock
Only 3 remaining
$2.14
You save $0.38
060
Honda
OIL SEAL (39.5X52X6)91256-ZV5-003
Required: 1
OIL SEAL (39.5X52X6) (ARAI)
N
$8.81
You save $1.55
061
Honda
O-RING (15.54X2.62)91352-ZV5-000
Required: 1
O-RING (15.54X2.62)
N
$1.97
You save $0.35
062
Honda
COLLAR, STEERING ROD91560-ZY3-000
Required: 1
COLLAR, STEERING ROD
N
$3.86
You save $0.68
063
Honda
PIN, SPRING (3X20)94305-30203
Required: 2
PIN, SPRING (3X20)
N
$1.34
You save $0.24
064
Honda
ROD KIT, STEERING06532-ZY3-U00
Required: 1
ROD KIT, STEERING
N
$89.74
You save $15.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
