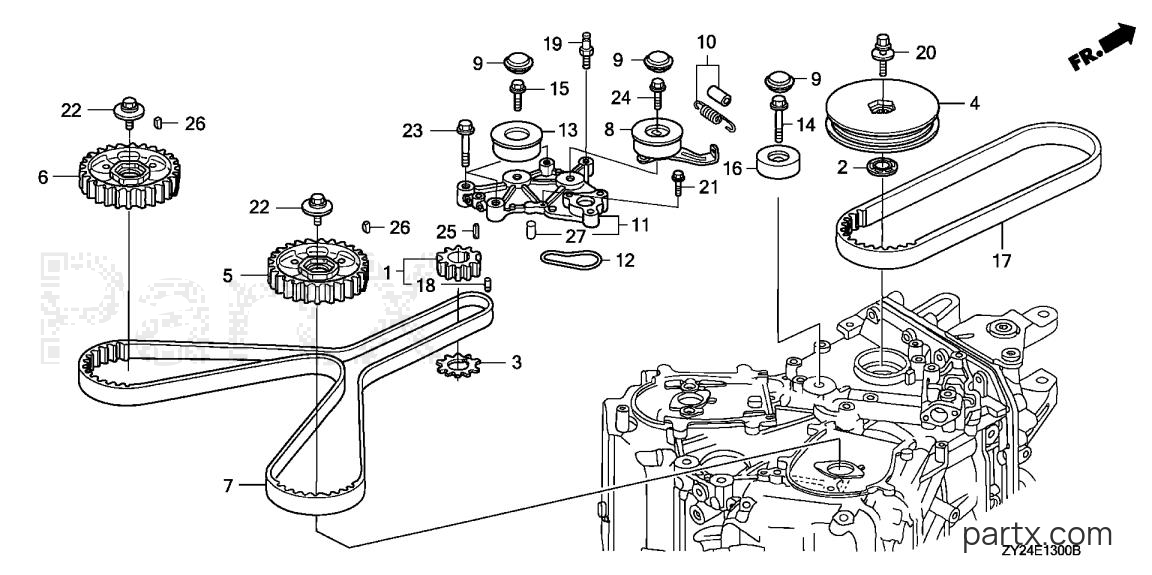

2002 Marine Engine BF - BF200A2 XCA TIMING BELT diagram
001
Required: 1
PULLEY, TIMING BELT DRIVE (NOT AVAILABLE)
N
Price unavailable
002
Honda
PLATE, T/B GUID13622-P8A-A00
Required: 1
PLATE, TIMING BELT GUIDE
N
$4.73
You save $0.83
003
Honda
PLATE, T/B GUID13622-ZY3-000
Required: 1
PLATE, TIMING BELT GUIDE
N
$57.56
You save $10.16
004
Honda
PULLEY, CRANKSHAFT13811-ZY3-000
Required: 1
PULLEY, CRANKSHAFT
N
$121.21
You save $21.39
005
Honda
PULLEY, R. T/B DRVN14261-ZY3-000
Required: 1
PULLEY, R. TIMING BELT DRIVEN
N
$115.40
You save $20.36
006
Honda
PULLEY, L. T/B DRVN14270-ZY3-000
Required: 1
PULLEY, L. TIMING BELT DRIVEN (NOT AVAILABLE)
N
$159.55
You save $28.16
007
Honda
BELT, TIMING14400-P8A-A02
Required: 1
BELT, TIMING (197YU26 GB-323)
N
$180.95
You save $31.59
008
Honda
TENSIONER14510-ZY3-013
Required: 1
TENSIONER, TIMING BELT
N
$124.42
You save $21.96
009
Honda
CAP14515-ZV5-000
Required: 3
CAP, TIMING BELT TENSIONER
N
$6.65
You save $1.17
009
Honda
CAP14515-ZY3-000
Required: 3
CAP, TIMING BELT TENSIONER
N
$4.44
You save $0.78
010
Honda
SPRING, TIM BLT ADJ14520-ZY3-000
Required: 1
SPRING, TIMING BELT ADJUSTING
N
$5.61
You save $0.99
011
Honda
BASE *NH8*14526-ZY3-405ZA
Required: 1
BASE, TIMING BELT TENSIONER *NH8*(DARK GRAY)
N
$153.07
You save $27.01
012
Honda
O-RING14529-ZY3-000
Required: 1
O-RING, TIMING BELT TENSIONER BASE
N
$5.92
You save $1.04
013
Honda
IDLER, TIMING BELT14550-ZY3-003
Required: 1
IDLER, TIMING BELT (KOYO SEIKO)
N
$111.95
You save $19.51
014
Honda
BOLT, IDLER14551-P8A-A01
Required: 1
BOLT, IDLER
N
$14.31
You save $2.53
015
Honda
BOLT14553-ZVL-023
Required: 1
BOLT, TIMING BELT IDLER
N
$10.18
You save $1.80
016
Honda
IDLER B, TIMING BELT14555-ZY3-003
Required: 1
IDLER B, TIMING BELT
N
$86.07
You save $15.19
017
Honda
BELT (6PK745 M-180)31638-ZY3-003
Required: 1
BELT, ALTERNATOR (6PK745 M-180)
N
$34.92
You save $6.16
018
Honda
PIN, VERTICAL SHAFT41122-ZV0-000
Required: 1
PIN, VERTICAL SHAFT
N
$1.53
You save $0.27
019
Honda
BOLT90012-ZZ5-M02
Required: 1
BOLT, TIMING BELT ADJUSTING SPRING
N
$4.22
You save $0.74
020
Honda
BOLT-WASHER (16X49)90017-RJA-003
Required: 1
BOLT-WASHER (16X49)
N
$36.69
You save $6.47
021
Honda
BOLT, FLANGE (6X22)90030-ZY3-000
Required: 1
BOLT, FLANGE (6X22)
N
$1.04
You save $0.18
022
Honda
BOLT-WASHER (12X35)90031-P8A-A01
Required: 2
BOLT-WASHER (12X35)
N
$17.24
You save $3.04
023
Honda
BOLT, FLANGE (10X40)90039-ZVL-010
Required: 3
BOLT, FLANGE (10X40)
N
$1.55
You save $0.27
024
Honda
BOLT, FLANGE (10X43)90040-ZVL-010
Required: 1
BOLT, FLANGE (10X43)
N
$1.80
You save $0.32
025
Honda
KEY (4.5X38.5)90704-PT0-000
Required: 1
KEY (4.5X38.5)
N
$9.04
You save $1.60
026
Honda
KEY, SPECIAL90741-ZY3-000
Required: 2
KEY, SPECIAL
N
$3.84
You save $0.68
027
Honda
PIN, DOWEL (6X10)94301-06100
Required: 1
PIN, DOWEL (6X10)
N
$2.33
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
