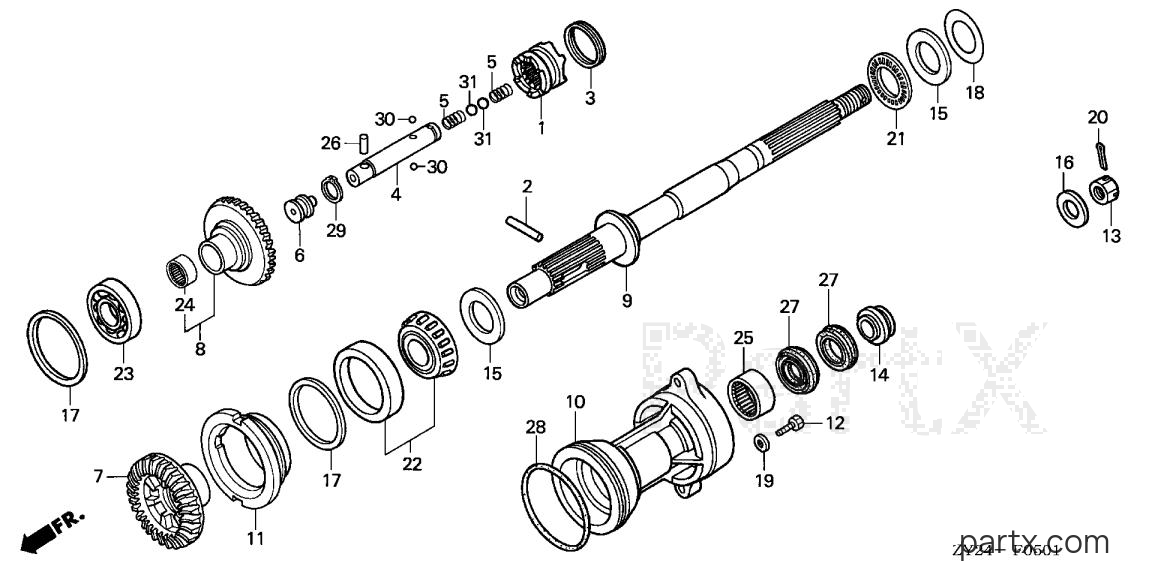

2003 Marine Engine BF - BF200A3 XCA PROPELLER SHAFT (2) diagram
001
Required: 1
SHIFTER, CLUTCH (NOT AVAILABLE)
N
Price unavailable
002
Honda
PIN, SHIFTER (8X50)24102-ZY3-000
Required: 1
PIN, SHIFTER (8X50)
N
$4.28
You save $0.76
003
Honda
RING, CROSS PIN24103-ZY3-000
Required: 1
RING, CROSS PIN
N
$2.80
You save $0.50
004
Required: 1
SLIDER, SHIFT (NOT AVAILABLE)
N
Price unavailable
005
Honda
SPRING, SHIFT24123-ZY3-000
Required: 2
SPRING, SHIFT
N
$2.40
You save $0.42
006
Honda
PLATE, SHIFT24124-ZY3-310
Required: 1
PLATE, SHIFT
N
$17.94
You save $3.16
007
Honda
GEAR (FORWARD 28T)41141-ZY3-B02
Required: 1
GEAR, BEVEL (FORWARD 28T) (COUNTER ROTATION)
N
$332.71
You save $58.71
008
Required: 1
GEAR, RR. BEVEL (28T) (C/R)
N
Price unavailable
009
Required: 1
SHAFT, PROPELLER (NOT AVAILABLE)
N
Price unavailable
010
Required: 1
HOLDER, PROPELLER SHAFT *NH282MU*(OYSTER SILVER METALLIC-U)
N
Price unavailable
011
Honda
HOLDER, BEARING41202-ZY3-700
Required: 1
HOLDER, BEARING (COUNTER ROTATION)
N
$105.91
You save $18.69
012
Honda
BOLT, HEX. (12X45)90123-ZY3-000
Required: 2
BOLT, HEX. (12X45)
N
$10.73
You save $1.89
013
Honda
NUT, CASTLE (18MM)90301-ZW1-B00
Required: 1
NUT, CASTLE (18MM)
N
$12.78
You save $2.26
014
Honda
WASHER90506-ZX2-C00
Required: 1
WASHER, PROPELLER THRUST
N
$43.69
You save $7.71
015
Honda
WASHER90509-ZW5-710
Required: 2
WASHER, THRUST BEARING
N
$16.83
You save $2.97
015
Honda
WASHER90509-ZW5-711
Required: 2
WASHER, THRUST BEARING
N
$16.83
You save $2.97
016
Honda
WASHER, PROPELLER90512-ZX2-C00
Required: 1
WASHER, PROPELLER
N
$42.45
You save $7.49
017
Honda
SHIM A, BEVEL (0.10)90528-ZY3-000
Required: 2
SHIM A, BEVEL (0.10)
N
$19.04
You save $3.36
017
Honda
SHIM B, BEVEL (0.15)90529-ZY3-000
Required: 2
SHIM B, BEVEL (0.15)
N
$19.04
You save $3.36
017
Honda
SHIM C, BEVEL (0.30)90530-ZY3-000
Required: 2
SHIM C, BEVEL (0.30)
N
$19.04
You save $3.36
017
Honda
SHIM D, BEVEL (0.50)90531-ZY3-000
Required: 2
SHIM D, BEVEL (0.50)
N
$19.04
You save $3.36
018
Honda
SHIM A (0.10)90548-ZW5-710
Required: 1
SHIM A, THRUST (0.10)
N
$12.27
You save $2.17
018
Honda
SHIM B (0.15)90549-ZW5-710
Required: 1
SHIM B, THRUST (0.15)
N
$12.27
You save $2.17
018
Honda
SHIM C (0.30)90550-ZW5-710
Required: 1
SHIM C, THRUST (0.30)
N
$12.27
You save $2.17
018
Honda
SHIM D (0.50)90551-ZW5-710
Required: 1
SHIM D, THRUST (0.50)
N
$12.27
You save $2.17
019
Honda
WASHER, PLAIN (12MM)90559-ZV5-000
Required: 2
WASHER, PLAIN (12MM)
N
$3.14
You save $0.78
020
Honda
PIN, SPLIT (4.0)90758-ZW1-B00
Required: 1
PIN, SPLIT (4.0)
N
$1.98
You save $0.50
021
Honda
BEARING, THRUST91005-PT2-N01
Required: 1
BEARING, THRUST (F)
N
$17.90
You save $3.16
022
Honda
BEARING (50X90X21.5)91051-ZY3-003
Required: 1
BEARING, TAPER (50X90X21.5)
N
$70.45
You save $12.43
023
Honda
BEARING (50X90X30.2)91055-ZY3-003
Required: 1
BEARING, ANGULAR (50X90X30.2)
N
$79.93
You save $14.11
024
Honda
BEARING (28X39X30)91056-ZY3-711
Required: 1
BEARING, NEEDLE (28X39X30)
N
$48.43
You save $8.55
025
Honda
BEARING (32X42X30)91057-ZY3-003
Required: 1
BEARING, NEEDLE (32X42X30)
N
$51.61
You save $9.11
026
Honda
ROLLER (4X13.8)91151-ZY3-003
Required: 1
ROLLER (4X13.8)
N
$1.78
You save $0.32
027
Honda
SEAL (30X45X7)91252-ZY3-003
Required: 2
SEAL, WATER (30X45X7)
N
$7.82
You save $1.96
028
Honda
O-RING (105X3.1)91351-ZY3-003
Required: 1
O-RING (105X3.1)
N
$8.33
You save $1.47
029
Honda
CIRCLIP (15MM)94510-15000
Required: 1
CIRCLIP (OUTER) (15MM)
N
$1.19
You save $0.21
030
Honda
BALL (#7) (7/32)96211-07000
Required: 2
BALL, STEEL (#7) (7/32)
N
$1.36
You save $0.24
031
Honda
BALL (#12) (3/8)96211-12000
Required: 2
BALL, STEEL (#12) (3/8)
N
$0.82
You save $0.14
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
