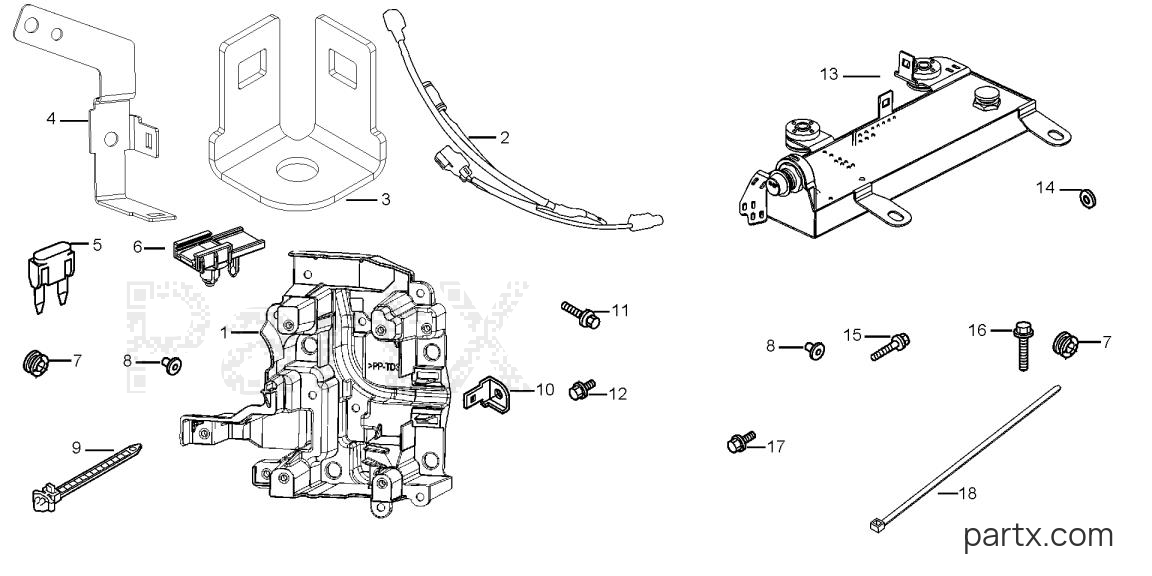

2004 Marine Engine BF - BF200A4 LA ELECTRICAL PARTS BOX - MOTOR CONTROL diagram
001
Honda
CASE30416-ZX2-001AH
Required: 1
CASE, ELECTRONIC PARTS
N
$63.24
You save $11.16
002
Honda
CABLE ASSY., IST32415-ZX2-001AH
Required: 1
CABLE ASSY., IST
N
$225.96
You save $39.88
003
Honda
BRACKET, DOUBLE EPC32101-ZZ3-002AH
Required: 1
BRACKET, DOUBLE EPC
N
$28.68
You save $5.06
004
Honda
BRACKET, TRIPLE EPC32101-ZZ3-003AH
Required: 1
BRACKET, TRIPLE EPC
N
$47.21
You save $8.33
005
Honda
FUSE, MINI (20A)98200-42000
Required: 2
FUSE, MINI (20A)
N
$1.29
You save $0.23
006
Honda
CLIP, DEUTSCH RECEPT90653-ZX2-000AH
Required: 1
CLIP, DEUTSCH RECEPT
N
$11.51
You save $2.03
007
Honda
GROM, RELAY BRACKET38553-ZY9-003
Required: 6
GROMMET, RELAY BRACKET
N
$4.79
You save $0.85
008
Honda
COLLAR91553-ZV5-010
Required: 6
COLLAR, MODULE IGNITION CONTROL CASE (CDI)
N
$3.03
You save $0.53
009
Honda
CLIP (145MM)91541-S0A-003
Required: 3
CLIP, HARNESS BAND (145MM) (BLACK)
N
$4.11
You save $0.73
010
Honda
BRACKET, ACG FUSE32101-ZZ3-010
Required: 2
BRACKET, ACG FUSE
N
$5.71
You save $1.01
011
Honda
BOLT-WASHER (6X27)90003-ZZ5-M01
Required: 6
BOLT-WASHER (6X27) (CT200)
N
$2.89
You save $0.51
012
Honda
BOLT, FLANGE (6X10)90103-ZZ0-M01
Required: 4
BOLT, FLANGE (6X10)
N
$1.48
You save $0.26
013
Honda
CONTROL UNIT34750-ZX2-000AH
Required: 1
CONTROL UNIT, ELECTRONIC IST
N
$1216.44
You save $214.67
014
Honda
WASHER, PLAIN (6MM)90512-ZV4-000
Required: 2
WASHER, PLAIN (6MM)
N
$3.43
You save $0.61
015
Required: 2
BOLT, FLANGE (6X40)
N
Price unavailable
016
Honda
BOLT, FLANGE (6X22)90003-ZY9-M01
Required: 2
BOLT, FLANGE (6X22)
N
$2.18
You save $0.38
-50%
017
Honda
BOLT, FLANGE (6X12)90013-ZW9-000
Required: 1
BOLT, FLANGE (6X12)
N
In stock
Only 4 remaining
$0.98
You save $0.98
018
Honda
TIE (8" BLACK) "32901-ZX2-200AH
Required: 5
TIE, CABLE (8" BLACK)
N
$0.68
You save $0.12
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
