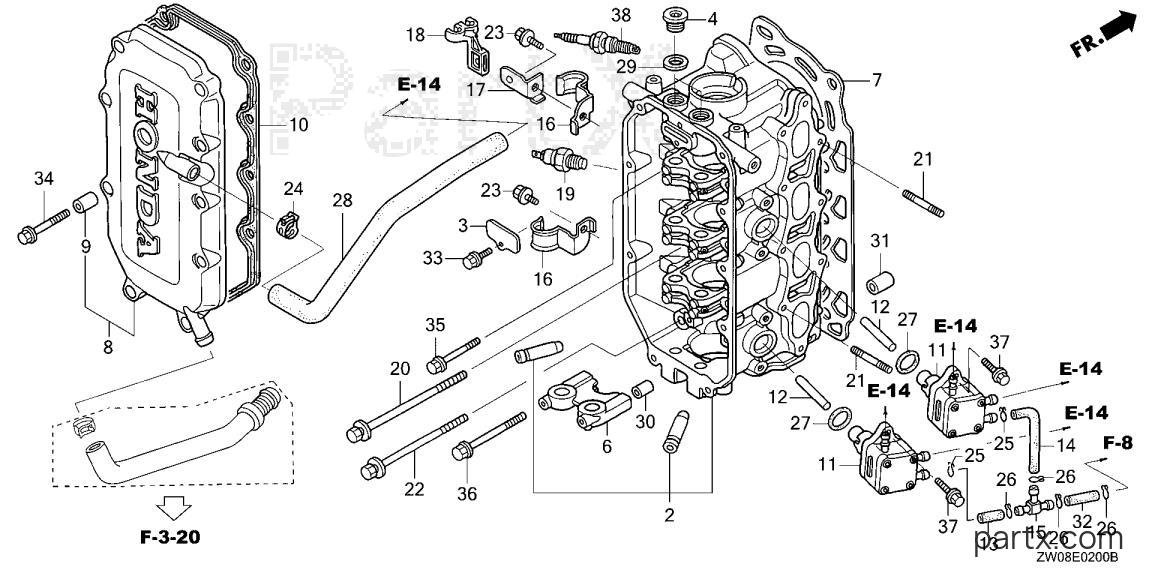

2001 Marine Engine BF - BF90A1 JHTA CYLINDER HEAD diagram
001
Honda
GUIDE, VALVE (OS)12204-ZW1-305
Required: 8
GUIDE, VALVE (OVER SIZE)
N
$13.46
You save $2.38
002
Required: 1
CYLINDER HEAD *NH8*(DARK GRAY)
N
Price unavailable
002
Required: 1
CYLINDER HEAD *NH8*(DARK GRAY) (NOT AVAILABLE)
N
Price unavailable
003
Honda
PLATE, OIL CHAMBER12212-ZW1-000
Required: 1
PLATE, OIL CHAMBER (NOT AVAILABLE)
N
$10.34
You save $1.82
004
Honda
BOLT, SEALING (20MM)12217-ZY9-M01
Required: 2
BOLT, SEALING (20MM)
N
$3.42
You save $0.60
005
Required: 4
GUIDE, EX. VALVE (OVER SIZE)
N
Price unavailable
006
Honda
HOLDER, CAM THRUST12237-ZW1-000
Required: 1
HOLDER, CAM THRUST (NOT AVAILABLE)
N
$77.57
You save $13.69
-50%
007
Honda
GASKET, CYL HD12251-ZW1-014
Required: 1
GASKET, CYLINDER HEAD
N
In stock
Only 1 remaining
$64.63
You save $64.63
008
Required: 1
COVER, CYLINDER HEAD
N
Price unavailable
009
Honda
COLLAR, HEAD COVER12314-ZV5-300
Required: 9
COLLAR, HEAD COVER
N
$5.46
You save $0.96
010
Honda
GASKET, HEAD COVER12391-ZW1-010
Required: 1
GASKET, HEAD COVER
N
$50.06
You save $8.84
011
Required: 2
PUMP ASSY., FUEL (MSDS)
N
Price unavailable
011
Honda
PUMP ASSY., FUEL16700-ZW1-004
Required: 2
PUMP ASSY., FUEL (MSDS)
N
$131.85
You save $23.27
012
Honda
LIFTER, FUEL PUMP16717-ZW1-000
Required: 2
LIFTER, FUEL PUMP
N
$10.12
You save $1.79
013
Required: 1
TUBE B, FUEL (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
TUBE C, FUEL (NOT AVAILABLE)
N
Price unavailable
$10.49
You save $1.85
016
Honda
CLAMP, HOSE19416-ZW1-000
Required: 2
CLAMP, HOSE
N
$11.51
You save $2.03
017
Required: 1
STAY A, IGNITION WIRE CLAMP (NOT AVAILABLE)
N
Price unavailable
018
Required: 1
CLAMP A, IGNITION WIRE (NOT AVAILABLE)
N
Price unavailable
019
Honda
SWITCH, THERMOSTAT35670-ZW1-013
Required: 1
SWITCH ASSY., THERMOSTAT
N
$45.42
You save $8.02
020
Honda
BOLT-WASHER (10X140)90005-PM3-003
Required: 8
BOLT-WASHER (10X140) (SAGA)
N
$11.37
You save $2.01
021
Honda
BOLT, STUD (8X22)90006-ZW1-000
Required: 2
BOLT, STUD (8X22)
N
$3.74
You save $0.66
022
Honda
BOLT-WASHER90008-PZ1-003
Required: 2
BOLT-WASHER (10X120.5) (SAGA)
N
$5.58
You save $0.98
023
Honda
BOLT, FLANGE (6X12)90013-ZV0-010
Required: 2
BOLT, FLANGE (6X12)
N
In stock
Only 2 remaining
$1.90
You save $0.48
024
Honda
CLAMP, TUBE (D22)90602-ZV5-013
Required: 1
CLAMP, TUBE (D22)
N
$2.48
You save $0.44
025
Honda
CLIP, TUBE (B10)90603-ZV4-000
Required: 2
CLIP, TUBE (B10)
N
$1.60
You save $0.28
026
Honda
CLIP, TUBE (B12)90604-ZV0-000
Required: 4
CLIP, TUBE (B12)
N
$1.55
You save $0.27
-50%
027
Honda
O-RING (20.8X2.4)91351-MG7-003
Required: 2
O-RING (20.8X2.4)
N
In stock
Only 2 remaining
$1.66
You save $1.66
028
Required: 1
TUBE, BREATHER (NOT AVAILABLE)
N
Price unavailable
-50%
029
Honda
WASHER, DRAIN (20MM)94109-20000
Required: 2
WASHER, DRAIN PLUG (20MM)
N
In stock
5+ in stock
$0.85
You save $0.85
030
Honda
PIN, DOWEL (8X14)94301-08140
Required: 2
PIN, DOWEL (8X14)
N
$2.33
You save $0.41
031
Honda
PIN A, DOWEL (12X16)94301-12160
Required: 2
PIN A, DOWEL (12X16)
N
$2.55
You save $0.45
032
Honda
BULK HOSE (7.5X8000)95001-75008-60M
Required: 1
BULK HOSE, FUEL (7.5X8000) OEM CUT SIZE: (7.3X55)
N
$124.58
You save $21.98
033
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 1
BOLT, FLANGE (6X12)
N
In stock
Only 1 remaining
$1.58
You save $0.40
034
Honda
BOLT, FLANGE (6X35)95701-06035-02
Required: 9
BOLT, FLANGE (6X35)
N
$1.12
You save $0.20
035
Honda
BOLT, FLANGE (8X40)95701-08040-02
Required: 4
BOLT, FLANGE (8X40)
N
$1.50
You save $0.26
036
Honda
BOLT, FLANGE (6X80)95801-06080-09
Required: 2
BOLT, FLANGE (6X80)
N
$1.85
You save $0.33
037
Honda
BOLT, FLANGE (6X20)96001-06020-02
Required: 4
BOLT, FLANGE (6X20)
N
$1.36
You save $0.24
038
Honda
SPARK PLUG (DR7EA)98069-5771P
Required: 4
SPARK PLUG (DR7EA) (NGK)
N
$2.38
You save $0.60
-50%
038
Honda
S/PLG (X22ESR-U)98069-57726
Required: 4
SPARK PLUG (X22ESR-U) (DENSO)
N
In stock
Only 1 remaining
$1.49
You save $1.49
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
