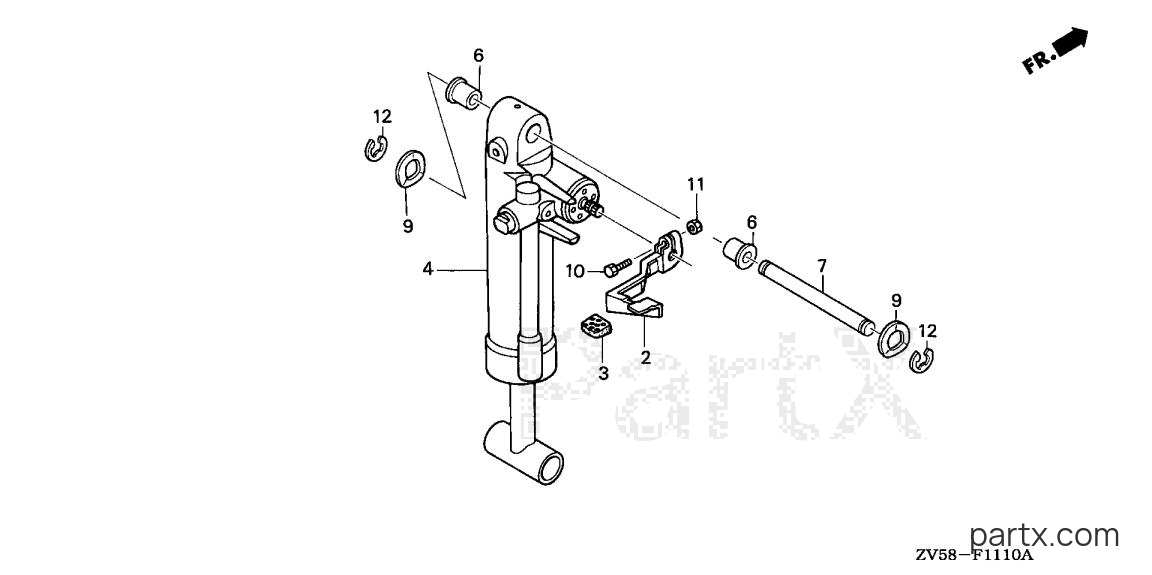

2001 Marine Engine BF - BF40A1 LHA SHOCK ABSORBER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF40A1 LHA - SHOCK ABSORBER
Change View:
LEVER, TILT
002
Honda
LEVER, TILT50517-ZV5-000
Required: 1
LEVER, TILT
N
Cross Ship
Leaves in 2-5 days
$56.82
$48.30
You save $8.52
More details
GRIP, LEVER
003
Honda
GRIP, LEVER50543-ZV5-000
Required: 1
GRIP, LEVER
N
Cross Ship
Leaves in 2-5 days
$11.10
$9.44
You save $1.67
More details
S/ABS ASSY. *NH283*
004
Honda
S/ABS ASSY. *NH283*51601-ZV5-013ZA
Required: 1
SHOCK ABSORBER ASSY. *NH283*(STIN GRAY) (NOT AVAILABLE)
N
Cross Ship
Leaves in 2-5 days
$750.18
$637.65
You save $112.53
More details
BUSH, CYLINDER
006
Honda
BUSH, CYLINDER56512-ZV5-000
Required: 2
BUSH, CYLINDER (UPPER)
N
Cross Ship
Leaves in 2-5 days
$4.08
$3.47
You save $0.61
More details
PIN, CYLINDER
007
Honda
PIN, CYLINDER56532-ZZ5-C00
Required: 1
PIN, CYLINDER (UPPER)
N
Cross Ship
Leaves in 2-5 days
$22.70
$19.29
You save $3.41
More details
009
Required: 2
WASHER, WAVE (24MM) (NOT AVAILABLE)
N
Price unavailable
BOLT, HEX. (6X25)
010
Honda
BOLT, HEX. (6X25)92101-06025-4J
Required: 1
BOLT, HEX. (6X25)
N
Cross Ship
Leaves in 2-5 days
$1.08
$0.92
You save $0.16
More details
NUT, HEX. (6MM)
011
Honda
NUT, HEX. (6MM)94001-06490-0S
Required: 1
NUT, HEX. (6MM)
N
Cross Ship
Leaves in 2-5 days
$2.74
$2.33
You save $0.41
More details
E-RING (10MM)
012
Honda
E-RING (10MM)94540-10029
Required: 2
E-RING (10MM)
N
Cross Ship
Leaves in 2-5 days
$9.04
$7.68
You save $1.36
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
