All diagrams for this model

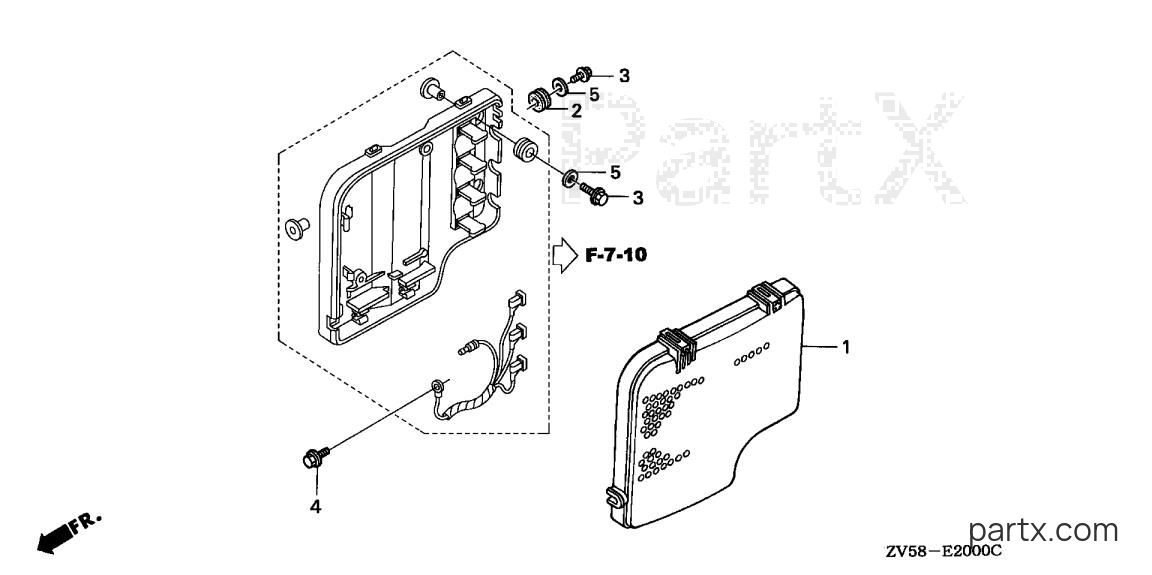

2000 Marine Engine BF - BF40AY LHA C.D.I. UNIT COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF40AY LHA - C.D.I. UNIT COVER
Change View:
COVER
001
Honda
COVER30588-ZV5-013
Required: 1
COVER, IGNITION CONTROL MODULE(CDI)
N
Cross Ship
Leaves in 2-5 days
$35.78
$30.41
You save $5.37
More details
GROM, CASE (LOWER)
002
Honda
GROM, CASE (LOWER)40102-ZV5-000
Required: 2
GROMMET, CASE (LOWER)
N
Cross Ship
Leaves in 2-5 days
$3.52
$2.99
You save $0.53
More details
BOLT, FLANGE (6X25)
003
Honda
BOLT, FLANGE (6X25)90121-ZV0-010
Required: 4
BOLT, FLANGE (6X25)
N
Cross Ship
Leaves in 2-5 days
$3.04
$2.58
You save $0.46
More details
BOLT, FLANGE (6X12)
004
Honda
BOLT, FLANGE (6X12)90122-ZV1-010
Required: 1
BOLT, FLANGE (6X12)
N
Cross Ship
Leaves in 2-5 days
$2.04
$1.73
You save $0.31
More details
WASHER, PLAIN (6MM)
005
Honda
WASHER, PLAIN (6MM)94103-06200
Required: 4
WASHER, PLAIN (6MM)
N
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
