All diagrams for this model

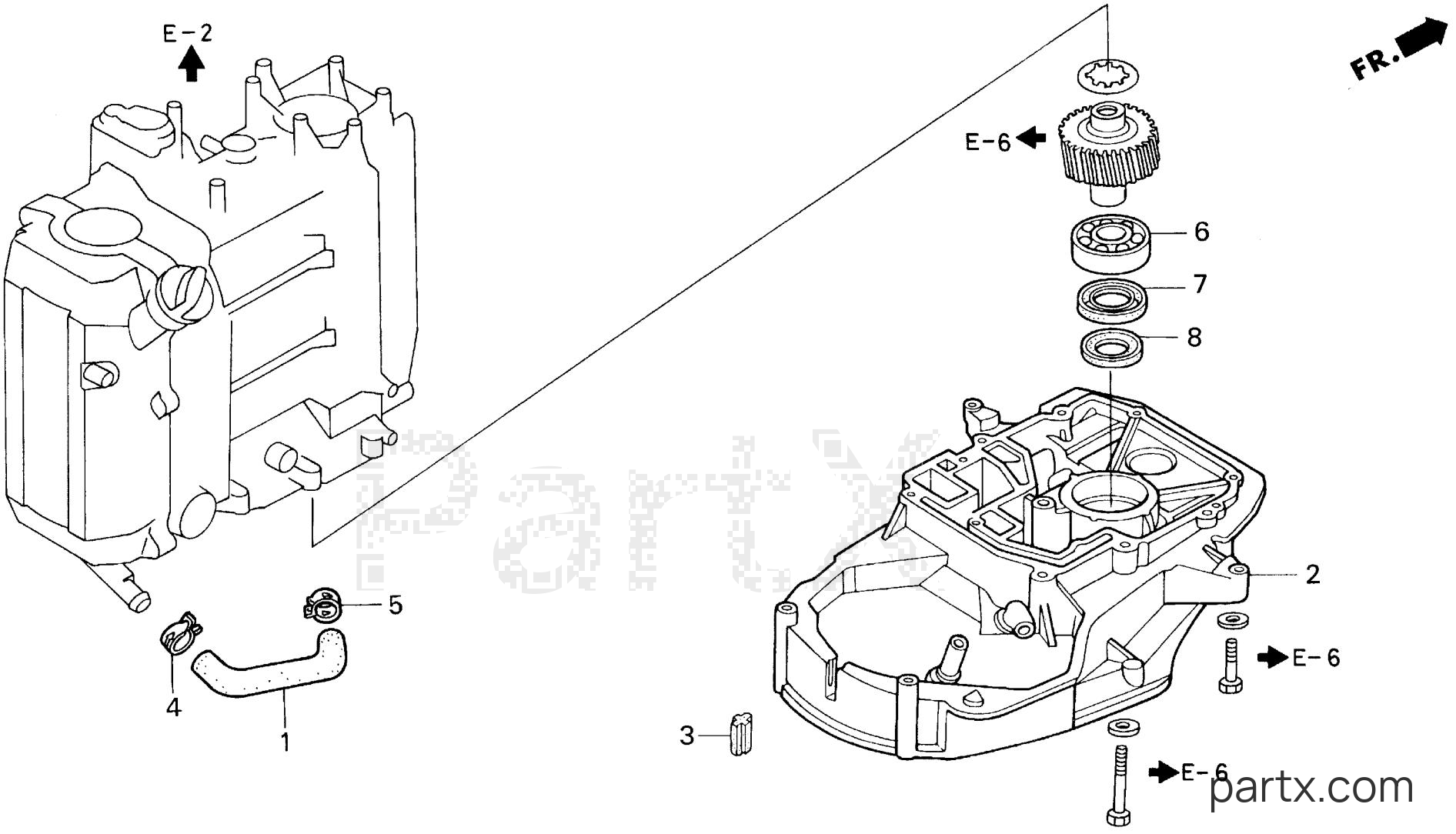

1999 Marine Engine BF - BF50AX SRJA PRIMARY GEAR CASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF50AX SRJA - PRIMARY GEAR CASE
Change View:
001
Required: 1
TUBE, OIL
N
Price unavailable
002
Required: 1
CASE, PRIMARY GEAR *NH8*(DARK GRAY)
N
Price unavailable
RUBBER, SEAL
003
Honda
RUBBER, SEAL23161-ZV5-000
Required: 1
RUBBER, SEAL (NOT AVAILABLE)
N
Cross Ship
Leaves in 2-5 days
$3.56
$3.03
You save $0.53
More details
CLAMP, TUBE (D22)
004
Honda
CLAMP, TUBE (D22)90602-ZV5-013
Required: 1
CLAMP, TUBE (D22)
N
Cross Ship
Leaves in 2-5 days
$2.92
$2.48
You save $0.44
More details
CLAMP, TUBE (D18.8)
005
Honda
CLAMP, TUBE (D18.8)90602-ZV3-030
Required: 1
CLAMP, TUBE (D18.8)
N
Cross Ship
Leaves in 2-5 days
$4.48
$3.81
You save $0.67
More details
BEARING (6205)
006
Honda
BEARING (6205)91024-ZV5-003
Required: 1
BEARING, RADIAL BALL (6205)
N
Cross Ship
Leaves in 2-5 days
$20.58
$17.49
You save $3.09
More details
OIL SEAL (25X40X7)
007
Honda
OIL SEAL (25X40X7)91204-ZV5-005
Required: 1
OIL SEAL (25X40X7)
N
Cross Ship
Leaves in 2-5 days
$14.92
$12.68
You save $2.24
More details
SEAL (17X26X7)
008
Honda
SEAL (17X26X7)91221-ZV5-005
Required: 1
SEAL, WATER (17X26X7)
N
Cross Ship
Leaves in 2-5 days
$9.58
$8.14
You save $1.44
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
