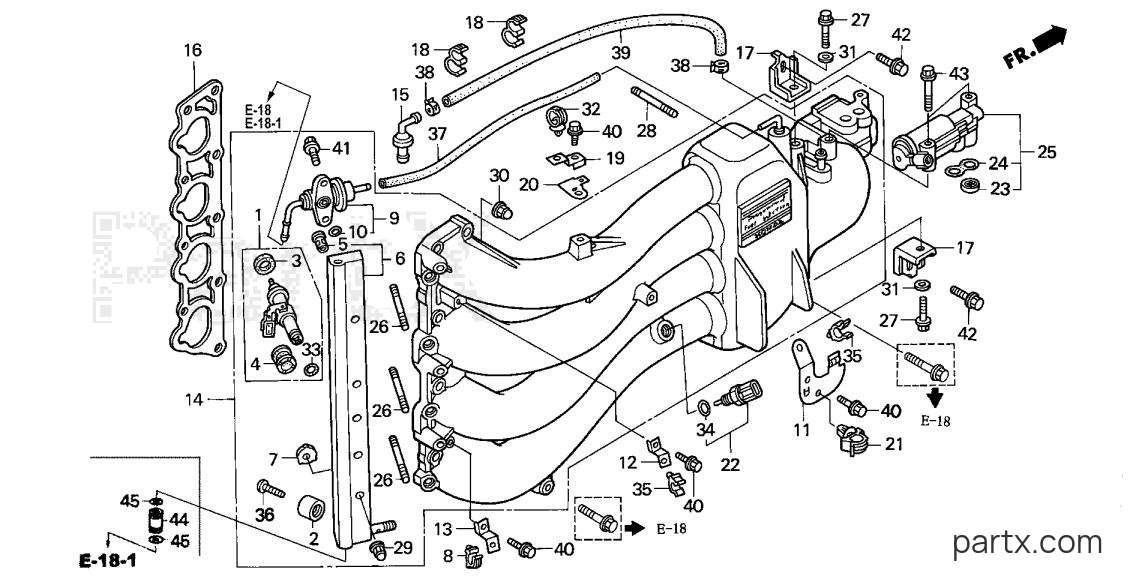

2001 Marine Engine BF - BF130A1 XA INTAKE MANIFOLD diagram
001
Honda
INJECTOR SET, FUEL06164-PCA-000
Required: 4
INJECTOR SET, FUEL
N
$394.15
You save $69.56
002
Honda
METAL, ANODE12155-ZV5-000
Required: 2
METAL, ANODE
N
$10.78
You save $1.90
002
Honda
METAL, ANODE12155-ZV5-010
Required: 2
METAL, ANODE
N
In stock
Only 5 remaining
$10.14
You save $2.54
003
Honda
SEAL RING, INJECTOR16472-P0H-A01
Required: 4
SEAL RING, INJECTOR (NOK)
N
$24.82
You save $4.38
004
Honda
CUSHION RING16473-P10-A01
Required: 4
CUSHION RING, INJECTOR (NOK)
N
$8.86
You save $1.56
004
Required: 4
CUSHION RING, INJECTOR (OTSUKA)
N
Price unavailable
005
Honda
MESH, FUEL FILTER16614-P5G-003
Required: 1
MESH, FUEL FILTER
N
$13.96
You save $2.46
006
Required: 1
LINE, FUEL (NOT AVAILABLE)
N
Price unavailable
007
Honda
INSULATOR, FUEL PIPE16638-PH3-S00
Required: 3
INSULATOR, FUEL PIPE
N
$5.93
You save $1.05
-50%
008
Honda
CLIP, TUBE16731-ZE2-003
Required: 1
CLIP, TUBE
N
In stock
Only 1 remaining
$1.46
You save $1.46
009
Honda
REGULATOR, PRESSURE16740-ZW5-003
Required: 1
REGULATOR ASSY., PRESSURE
N
$107.68
You save $19.00
010
Honda
O-RING16741-PG7-005
Required: 1
O-RING, PRESSURE REGULATOR
N
$4.32
You save $0.76
011
Required: 1
BRACKET, HOSE CLAMP (A)
N
Price unavailable
011
Honda
BRACKET, HOSE CLAMP16816-ZW5-010
Required: 1
BRACKET, HOSE CLAMP (A)
N
$9.71
You save $1.71
012
Honda
BRACKET, HOSE CLAMP16817-ZW5-010
Required: 1
BRACKET, HOSE CLAMP (B)
N
$5.52
You save $0.98
013
Honda
BRACKET, TUBE CLAMP16818-ZW5-010
Required: 1
BRACKET, TUBE CLAMP
N
$5.52
You save $0.98
014
Honda
MANIFOLD, IN. *NH8*17100-ZW5-010ZA
Required: 1
MANIFOLD ASSY., IN. *NH8*(DARK GRAY) (SOURCE: VINTAGE PARTS INC.)
N
$1935.19
You save $341.51
015
Honda
VALVE ASSY., PCV17130-PK1-003
Required: 1
VALVE ASSY., PCV
N
$49.81
You save $8.79
016
Honda
GASKET, IN. MANIFOLD17151-ZW5-000
Required: 1
GASKET, IN. MANIFOLD
N
$15.71
You save $2.77
017
Honda
STAY, IN. MANIFOLD17161-ZW5-010
Required: 2
STAY, IN. MANIFOLD (A)
N
$10.37
You save $1.83
018
Honda
CLAMP (7.5-11.5)17439-PY3-A01
Required: 2
CLAMP, TUBE (7.5-11.5) (BLACK)
N
$6.12
You save $1.08
019
Honda
BRACKET, CLIP A32112-ZW5-010
Required: 1
BRACKET, CLIP A
N
$4.83
You save $0.85
020
Honda
BRACKET, CONNECTOR32118-ZW5-010
Required: 1
BRACKET, CONNECTOR (D)
N
$3.64
You save $0.64
021
Honda
CLAMP, WIRE32660-MJ6-710
Required: 1
CLAMP, WIRE
N
$3.88
You save $0.68
022
Honda
SENSOR, AIR TEMP35665-ZW5-003
Required: 1
SENSOR ASSY., AIR TEMPERATURE
N
$21.86
You save $3.86
023
Honda
FILTER36454-PS4-003
Required: 1
FILTER, ELECTRONIC AIR CONTROLVALVE (TOYO ROKI)
N
$11.65
You save $2.05
-50%
024
Honda
GASKET36455-PV0-000
Required: 1
GASKET, ELECTRONIC AIR CONTROLVALVE (KEIHIN)
N
In stock
Only 1 remaining
$3.33
You save $3.33
025
Honda
VALVE ASSY.36550-ZW5-003
Required: 1
VALVE ASSY., ELECTRONIC AIR CONTROL (NOT AVAILABLE)
N
$287.67
You save $50.77
026
Honda
BOLT 2, STUD (6X35)90003-ZW5-010
Required: 3
BOLT 2, STUD (6X35)
N
$4.25
You save $0.75
027
Honda
BOLT, SPECIAL (8X16)90004-ZW5-000
Required: 2
BOLT, SPECIAL (8X16)
N
$9.45
You save $1.67
028
Honda
BOLT 2, STUD (8X35)90005-ZW5-000
Required: 2
BOLT 2, STUD (8X35) (NOT AVAILABLE)
N
$2.06
You save $0.36
029
Honda
NUT, CAP (6MM)90204-ZW5-000
Required: 3
NUT, CAP (6MM)
N
$1.17
You save $0.21
030
Honda
NUT, CAP (10MM)90201-HA0-000
Required: 9
NUT, CAP (10MM)
N
$7.34
You save $1.30
031
Honda
WASHER (14X23)90403-ZW5-010
Required: 2
WASHER (14X23)
N
$7.92
You save $1.40
032
Honda
CLIP, HARNESS90691-ZB7-003
Required: 1
CLIP, HARNESS
N
$3.47
You save $0.61
033
Honda
O-RING (7.3X2.2)91301-PM7-003
Required: 4
O-RING (7.3X2.2) (ARAI)
N
$3.69
You save $0.65
033
Honda
O-RING91301-P2F-A01
Required: 4
O-RING (7.3X2.2) (NOK)
N
$3.69
You save $0.65
$4.28
You save $0.76
035
Honda
CLAMP, PURGE HOSE91594-SR3-911
Required: 2
CLAMP, PURGE HOSE
N
$9.35
You save $1.65
-50%
036
Honda
SCREW, PAN (6X18)93500-06018-4J
Required: 2
SCREW, PAN (6X18)
N
In stock
Only 3 remaining
$0.99
You save $0.99
037
Honda
BULK HOSE (3.5X3000)95001-35003-60M
Required: 1
BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X340)
N
$25.02
You save $4.42
038
Honda
CLAMP, TUBE (D12)90602-ZW5-030
Required: 2
CLAMP, TUBE (D12)
N
$2.06
You save $0.36
039
Honda
BULK HOSE (7.3X1000)95005-75001-20M
Required: 1
BULK HOSE, VACUUM (7.3X1000) OEM CUT SIZE: (7.3X370)
N
$26.93
You save $4.75
040
Honda
BOLT, FLANGE (6X12)95701-06012-02
Required: 4
BOLT, FLANGE (6X12)
N
$2.18
You save $0.38
041
Honda
BOLT, FLANGE (6X14)95701-06014-02
Required: 2
BOLT, FLANGE (6X14)
N
$1.17
You save $0.21
042
Honda
BOLT, FLANGE (8X18)95701-08018-02
Required: 2
BOLT, FLANGE (8X18)
N
$1.53
You save $0.27
043
Honda
BOLT, FLANGE (8X45)95701-08045-02
Required: 2
BOLT, FLANGE (8X45)
N
$2.01
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
