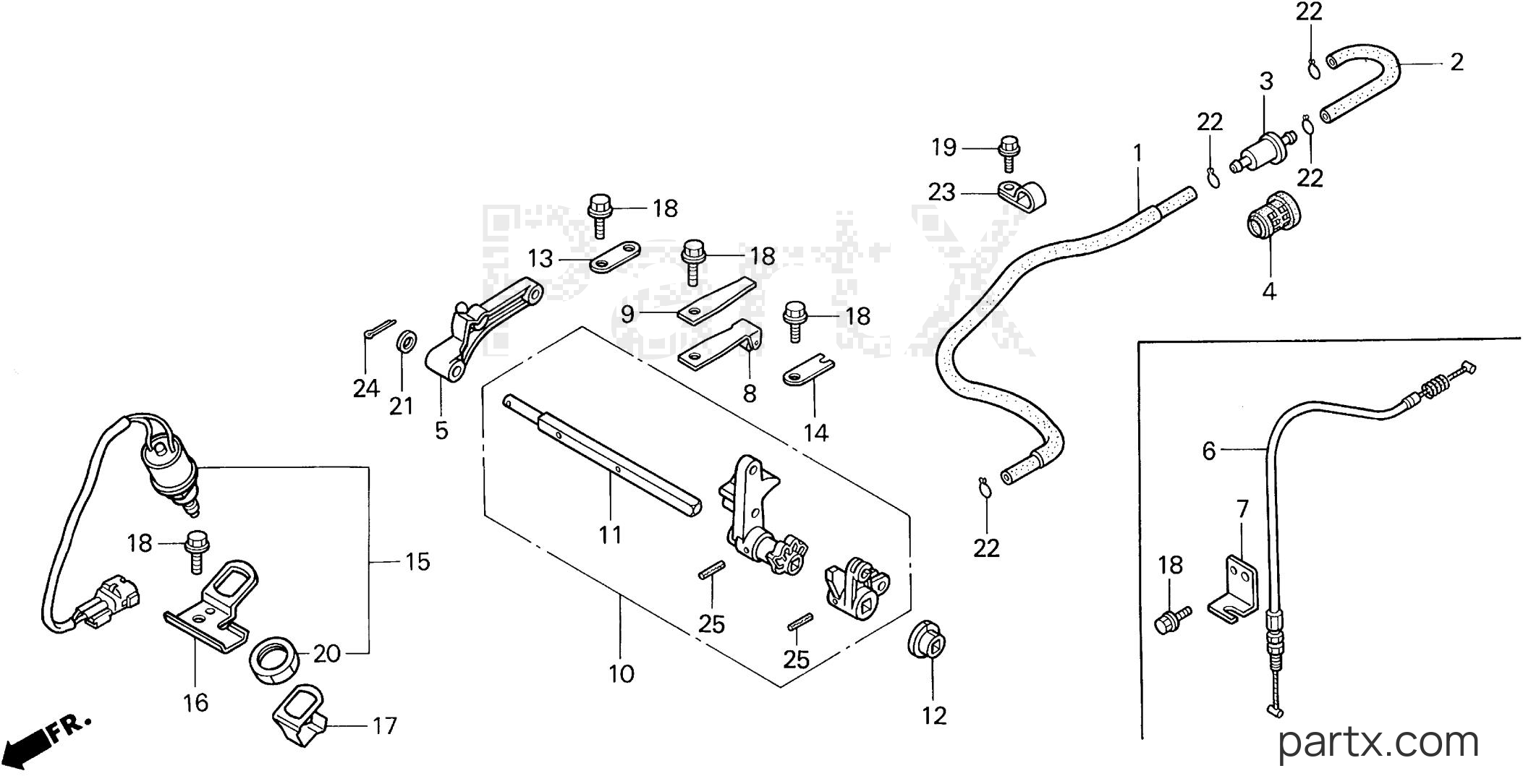

1999 Marine Engine BF - BF25AX LHSA SHIFT SHAFT diagram
001
Honda
TUBE, FUEL16850-ZV7-000
Required: 1
TUBE, FUEL (NOT AVAILABLE)
N
$27.47
You save $4.85
002
Honda
TUBE B, FUEL16861-ZV7-000
Required: 1
TUBE B, FUEL (NOT AVAILABLE)
N
$6.26
You save $1.10
003
Honda
FILTER, FUEL16910-ZV4-015
Required: 1
FILTER, FUEL
N
$15.81
You save $2.79
004
Honda
SUSPENSION, STRAINER16915-ZV4-000
Required: 1
SUSPENSION, STRAINER
N
$7.24
You save $1.28
006
Honda
CABLE17940-ZV7-000
Required: 1
CABLE, NEUTRAL STARTING
N
$15.49
You save $2.73
007
Required: 1
BRACKET, NEUTRAL START CABLE
N
Price unavailable
008
Honda
SPRING, CLICK24210-ZV1-010
Required: 1
SPRING, CLICK
N
$11.59
You save $2.05
009
Honda
SPRING, CLICK ASSIST24221-ZV4-010
Required: 1
SPRING, CLICK ASSIST
N
$8.25
You save $1.46
010
Honda
SHAFT, SHIFT24610-ZV7-010
Required: 1
SHAFT, SHIFT
N
$46.09
You save $8.13
011
Honda
SHAFT, SHIFT24611-ZV7-300
Required: 1
SHAFT, SHIFT
N
$26.37
You save $4.65
012
Honda
BUSH, SHAFT24621-ZV4-010
Required: 1
BUSH, SHAFT
N
$4.90
You save $0.86
013
Required: 1
PLATE, SHIFT
N
Price unavailable
013
Honda
PLATE, SHIFT24625-ZV5-010
Required: 1
PLATE, SHIFT
N
$2.55
You save $0.45
014
Required: 1
PLATE, SHIFT SHAFT
N
Price unavailable
014
Honda
PLATE, SHIFT SHAFT24626-ZV5-010
Required: 1
PLATE, SHIFT SHAFT
N
$2.55
You save $0.45
018
Required: 5
BOLT, FLANGE (6X12) (CT200)
N
Price unavailable
019
Honda
BOLT, FLANGE (5X10)90019-ZV1-010
Required: 1
BOLT, FLANGE (5X10)
N
$1.53
You save $0.27
022
Honda
CLIP, TUBE (B10)90603-ZV4-000
Required: 4
CLIP, TUBE (B10)
N
$1.60
You save $0.28
023
Honda
CLIP (14MM)90628-750-000
Required: 1
CLIP (14MM)
N
$2.40
You save $0.42
025
Honda
PIN, SPRING (3X20)94305-30203
Required: 2
PIN, SPRING (3X20)
N
$1.34
You save $0.24
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
