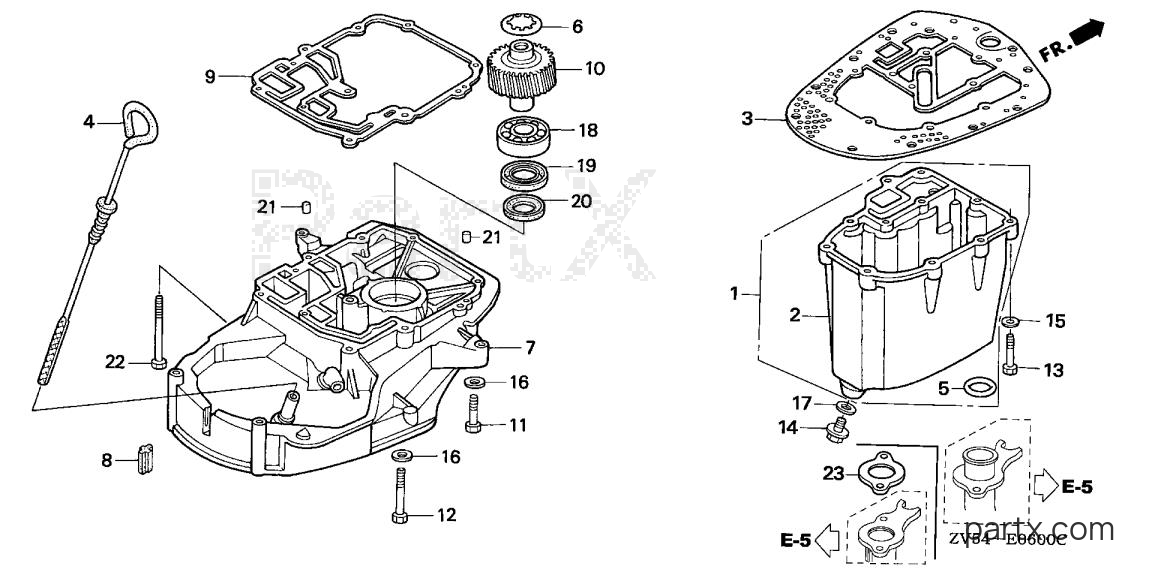

1998 Marine Engine BF - BF50AW SRJA OIL PAN diagram
001
Required: 1
PAN KIT, OIL *TGRAY*(GRAY) (N/A: USE 04102-ZV5-000) (ALT. PNO: 04102-ZV5-000)
N
Price unavailable
002
Honda
PAN, OIL *TGRAY*11311-ZV5-040ZA
Required: 1
PAN, OIL *TGRAY*(GRAY)
N
$142.00
You save $25.06
003
Honda
GASKET, OIL PAN11381-ZV5-004
Required: 1
GASKET, OIL PAN
N
$50.71
You save $8.95
004
Honda
DIPSTICK, OIL15650-ZV5-000
Required: 1
DIPSTICK, OIL
N
$17.17
You save $3.03
005
Required: 1
GASKET, EX. PIPE (NOT AVAILABLE)
N
Price unavailable
006
Honda
SPRING, THRUST23134-ZV5-000
Required: 1
SPRING, THRUST
N
$4.45
You save $0.79
007
Required: 1
CASE, PRIMARY GEAR *NH8*(DARK GRAY)
N
Price unavailable
007
Required: 1
CASE, PRIMARY GEAR *NH8*(DARK GRAY)
N
Price unavailable
008
Honda
RUBBER, SEAL23161-ZV5-000
Required: 1
RUBBER, SEAL (NOT AVAILABLE)
N
$3.03
You save $0.53
009
Required: 1
GASKET, PRIMARY GEAR CASE
N
Price unavailable
009
Honda
GASKET23162-ZV5-024
Required: 1
GASKET, PRIMARY GEAR CASE
N
$32.08
You save $5.66
010
Honda
GEAR (33T)23437-ZV5-000
Required: 1
GEAR, PRIMARY DRIVEN (33T)
N
$165.85
You save $29.27
011
Honda
BOLT, HEX. (8X35)90009-ZV5-000
Required: 2
BOLT, HEX. (8X35)
N
$4.71
You save $0.83
012
Honda
BOLT, HEX. (8X55)90010-ZV5-000
Required: 4
BOLT, HEX. (8X55)
N
$5.30
You save $0.94
-50%
013
Honda
BOLT, HEX. (6X25)90113-ZV5-000
Required: 11
BOLT, HEX. (6X25)
N
In stock
Only 1 remaining
$1.73
You save $1.73
014
Honda
BOLT, DRAIN PLUG90131-ZV5-000
Required: 1
BOLT, DRAIN PLUG
N
$8.40
You save $1.48
015
Honda
WASHER, PLAIN (6MM)90506-ZV4-000
Required: 11
WASHER, PLAIN (6MM)
N
$2.77
You save $0.49
016
Honda
WASHER, PLAIN (8MM)90507-ZV4-000
Required: 6
WASHER, PLAIN (8MM)
N
$2.50
You save $0.44
017
Honda
WASHER, DRAIN (12MM)90601-ZE2-000
Required: 1
WASHER, DRAIN PLUG (12MM)
N
$2.53
You save $0.63
018
Honda
BEARING (6205)91024-ZV5-003
Required: 1
BEARING, RADIAL BALL (6205)
N
$17.49
You save $3.09
019
Honda
OIL SEAL (25X40X7)91204-ZV5-005
Required: 1
OIL SEAL (25X40X7)
N
$12.68
You save $2.24
020
Honda
SEAL (17X26X7)91221-ZV5-005
Required: 1
SEAL, WATER (17X26X7)
N
$8.14
You save $1.44
021
Honda
PIN, DOWEL (6X10)94303-06100
Required: 2
PIN, DOWEL (6X10)
N
$2.33
You save $0.41
022
Honda
BOLT, FLANGE (8X75)95701-08075-08
Required: 4
BOLT, FLANGE (8X75)
N
$2.99
You save $0.53
023
Honda
GASKET, EX. PIPE18291-ZV5-010
Required: 1
GASKET, EX. PIPE
N
$3.30
You save $0.58
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
