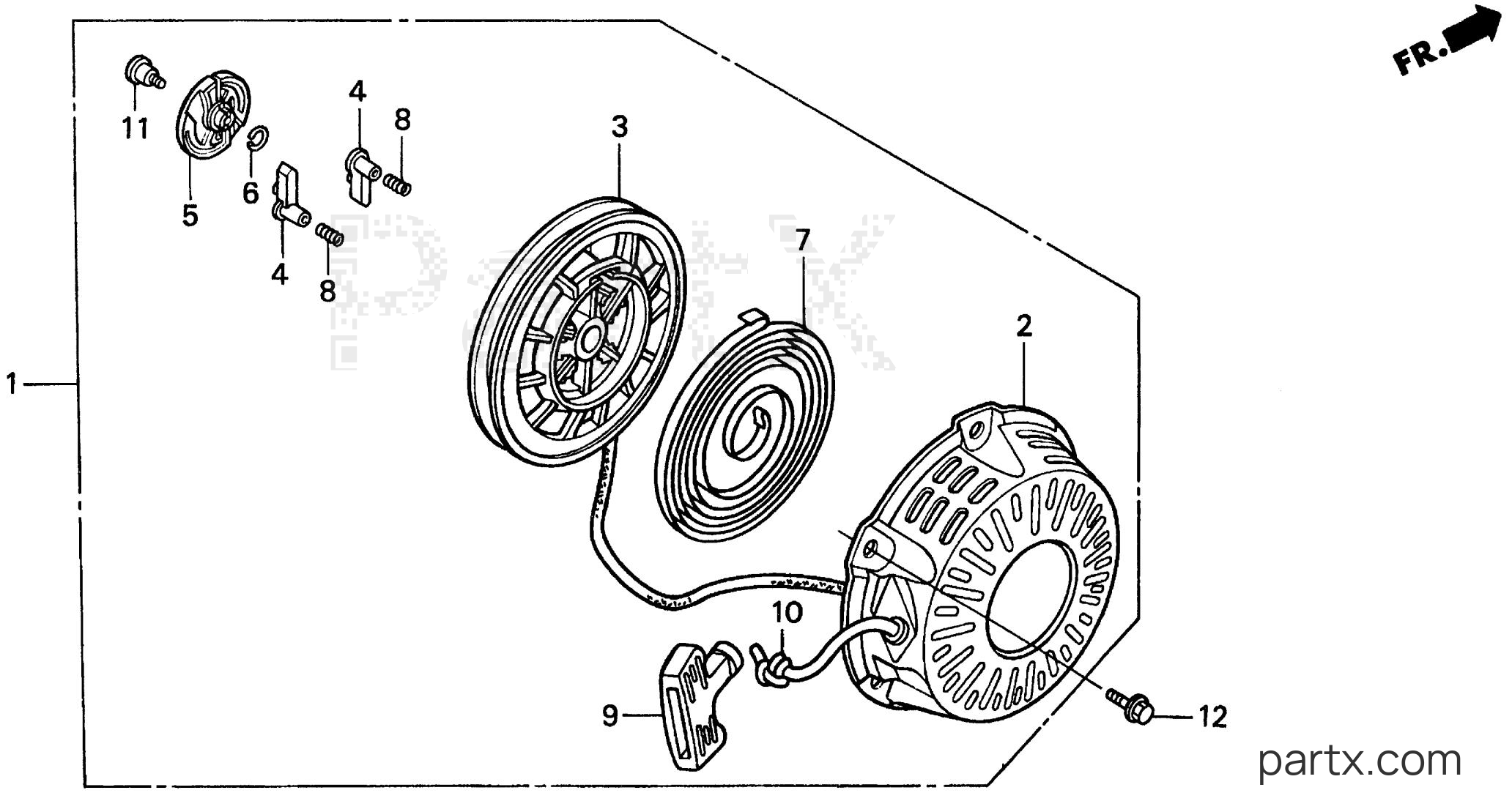

All Years Generator EZ - EZ2500 A RECOIL STARTER diagram
001
Honda
STARTER ASSY. *NH1*28400-ZH8-013ZB
Required: 1
STARTER ASSY., RECOIL *NH1*(BLACK)
N
$82.82
You save $14.62
002
Honda
CASE *NH1*28410-ZH8-003ZB
Required: 1
CASE, RECOIL STARTER *NH1*(BLACK)
N
$120.79
You save $21.32
003
Honda
REEL, RECOIL STARTER28420-ZH8-013
Required: 1
REEL, RECOIL STARTER (NATURAL)
N
$38.34
You save $6.77
004
Honda
RATCHET, STARTER28422-ZH8-013
Required: 2
RATCHET, STARTER
N
$7.31
You save $1.29
005
Honda
GUIDE, RATCHET28433-ZH8-003
Required: 1
GUIDE, RATCHET
N
$10.74
You save $1.90
006
Honda
SPRING, FRICTION28441-ZH8-003
Required: 1
SPRING, FRICTION
N
$5.00
You save $0.88
007
Honda
SPRING28442-ZH8-003
Required: 1
SPRING, RECOIL STARTER
N
$15.30
You save $2.70
008
Honda
SPRING, RETURN28443-ZH8-003
Required: 2
SPRING, RETURN
N
$4.95
You save $0.87
009
Honda
KNOB, RECOIL STARTER28461-ZH8-013
Required: 1
KNOB, RECOIL STARTER
N
$6.88
You save $1.21
010
Honda
ROPE, RECOIL STARTER28462-ZH8-003
Required: 1
ROPE, RECOIL STARTER
N
$10.12
You save $1.79
011
Honda
SCREW, SETTING90003-ZH8-003
Required: 1
SCREW, SETTING
N
$5.61
You save $0.99
012
Honda
BOLT, FLANGE (6X10)90008-ZE2-003
Required: 3
BOLT, FLANGE (6X10)
N
$1.50
You save $0.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
