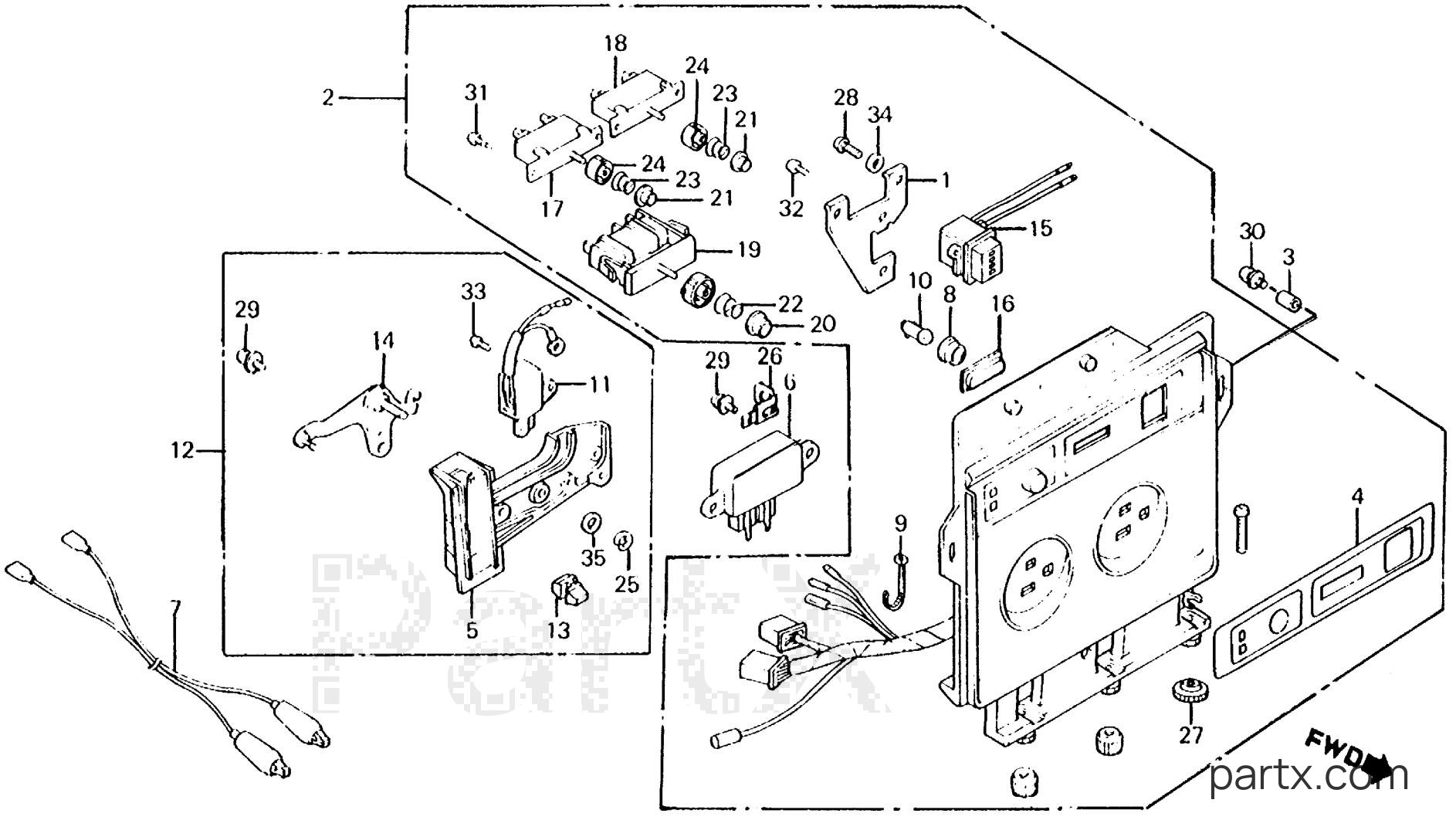

All Years Generator EX - EX800 A PANEL diagram
001
Required: 1
HOLDER, CONNECTOR (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
PANEL ASSY., CONTROL (NOT AVAILABLE)
N
Price unavailable
003
Required: 3
COLLAR, PANEL (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
MARK, PANEL (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
BRACKET, ENGINE SWITCH (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
TIMER UNIT, ALERT (NOT AVAILABLE)
N
Price unavailable
007
Honda
WIRE ASSY., CHARGE32650-825-005
Required: 1
WIRE ASSY., CHARGE
N
$14.88
You save $2.63
007
Honda
WIRE ASSY., CHARGE32650-825-015
Required: 1
WIRE ASSY., CHARGE
N
$14.88
You save $2.63
008
Required: 1
GROMMET (NOT AVAILABLE)
N
Price unavailable
$3.77
You save $0.67
010
Honda
BULB, DASH (6V 3W)34902-202-000
Required: 1
BULB, DASH (6V 3W)
N
$3.50
You save $0.62
011
Required: 1
SWITCH ASSY., STOP (NOT AVAILABLE)
N
Price unavailable
012
Required: 1
BRACKET ASSY., ENGINE SWITCH (NOT AVAILABLE)
N
Price unavailable
013
Honda
KNOB, ENGINE SWITCH36112-ZA7-000
Required: 1
KNOB, ENGINE SWITCH
N
$11.44
You save $2.02
014
Required: 1
LEVER, PETCOCK (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
METER, FREQUENCY (NOT AVAILABLE)
N
Price unavailable
016
Honda
LENS, LAMP37901-ZA7-013
Required: 1
LENS, LAMP (NOT AVAILABLE)
N
$3.20
You save $0.56
017
Required: 1
PROTECTOR, D.C. CIRCUIT (12A) (NOT AVAILABLE)
N
Price unavailable
018
Required: 1
PROTECTOR, CIRCUIT (NOT AVAILABLE)
N
Price unavailable
019
Required: 1
PROTECTOR, CIRCUIT (2A) (NOT AVAILABLE)
N
Price unavailable
020
Required: 1
CAP, BREAKER (NOT AVAILABLE)
N
Price unavailable
021
Required: 2
CAP, BREAKER (NOT AVAILABLE)
N
Price unavailable
022
Required: 1
SPRING, RETURN (NOT AVAILABLE)
N
Price unavailable
023
Required: 2
SPRING, RETURN (NOT AVAILABLE)
N
Price unavailable
024
Required: 2
HOLDER, BREAKER (NOT AVAILABLE)
N
Price unavailable
025
Required: 1
CLIP, LOCK PIN (NOT AVAILABLE)
N
Price unavailable
026
Honda
CLIP (2X50)90105-727-000
Required: 1
CLIP (2X50)
N
$3.28
You save $0.58
027
Honda
NUT, SPECIAL (6MM)90381-812-710
Required: 1
NUT, SPECIAL (6MM)
N
$2.04
You save $0.36
028
Honda
SCREW, PAN (3X8)93500-03008-0H
Required: 2
SCREW, PAN (3X8)
N
$0.76
You save $0.14
029
Honda
SCREW-WASHER (5X16)93891-05016-08
Required: 4
SCREW-WASHER (5X16)
N
$1.19
You save $0.21
030
Honda
SCREW-WASHER (5X12)93894-05012-08
Required: 3
SCREW-WASHER (5X12)
N
$1.00
You save $0.18
031
Honda
SCREW, TAPPING (3X8)93901-22120
Required: 6
SCREW, TAPPING (3X8)
N
$6.54
You save $1.16
032
Honda
SCREW, TAP (4X10)93901-24220
Required: 2
SCREW, TAPPING (4X10)
N
$3.43
You save $0.61
033
Honda
SCREW, TAPPING (3X8)93901-32120
Required: 2
SCREW, TAPPING (3X8)
N
$0.85
You save $0.15
034
Honda
WASHER, PLAIN (3MM)94101-03800
Required: 2
WASHER, PLAIN (3MM)
N
$1.02
You save $0.18
035
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
N
$0.64
You save $0.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
