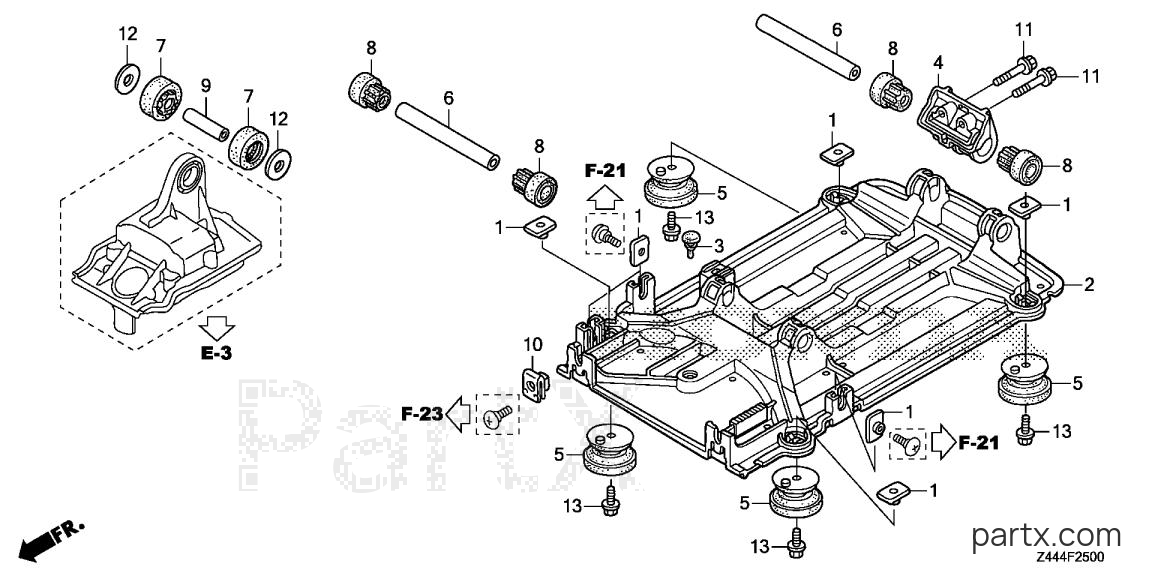

All Years Generator EU - EU2200IT A1 UNDER COVER diagram
001
Honda
NUT, SPECIAL (6MM)61304-Z39-C30
Required: 7
NUT, SPECIAL (6MM)
N
$1.78
You save $0.32
002
Honda
COVER (LOWER)63710-Z44-000
Required: 1
COVER (LOWER)
N
$28.98
You save $5.12
003
Required: 1
GROMMET, PAD SETTING (NOT AVAILABLE)
N
Price unavailable
004
Honda
BRACKET68322-Z07-000
Required: 1
BRACKET, ENGINE MOUNTING
N
$13.70
You save $2.42
005
Honda
RUBBER (LOWER)68325-Z44-A30
Required: 4
RUBBER (LOWER)
N
$3.23
You save $0.81
006
Honda
COLLAR A, INSULATOR68333-Z44-A30
Required: 2
COLLAR A, INSULATOR
N
$4.49
You save $0.79
007
Honda
INSULATOR (UPPER)68335-Z07-000
Required: 2
INSULATOR (UPPER)
N
$3.42
You save $0.60
008
Honda
INSULATOR (LOWER)68338-Z07-000
Required: 4
INSULATOR (LOWER)
N
$3.69
You save $0.65
009
Honda
COLLAR B, INSULATOR68339-Z44-A30
Required: 1
COLLAR B, INSULATOR
N
$2.86
You save $0.50
010
Honda
NUT, FENDER SETTING84601-HA7-670
Required: 2
NUT, FENDER SETTING
N
$5.94
You save $1.48
011
Honda
BOLT (6X32) (CT200)90017-883-000
Required: 2
BOLT, FLANGE (6X32) (CT200)
N
$2.77
You save $0.49
012
Honda
WASHER, PLAIN (10MM)90551-Z44-000
Required: 2
WASHER, PLAIN (10MM)
N
$1.17
You save $0.21
013
Honda
BOLT, FLANGE (6X10)95701-06010-08
Required: 4
BOLT, FLANGE (6X10)
N
$1.57
You save $0.39
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
