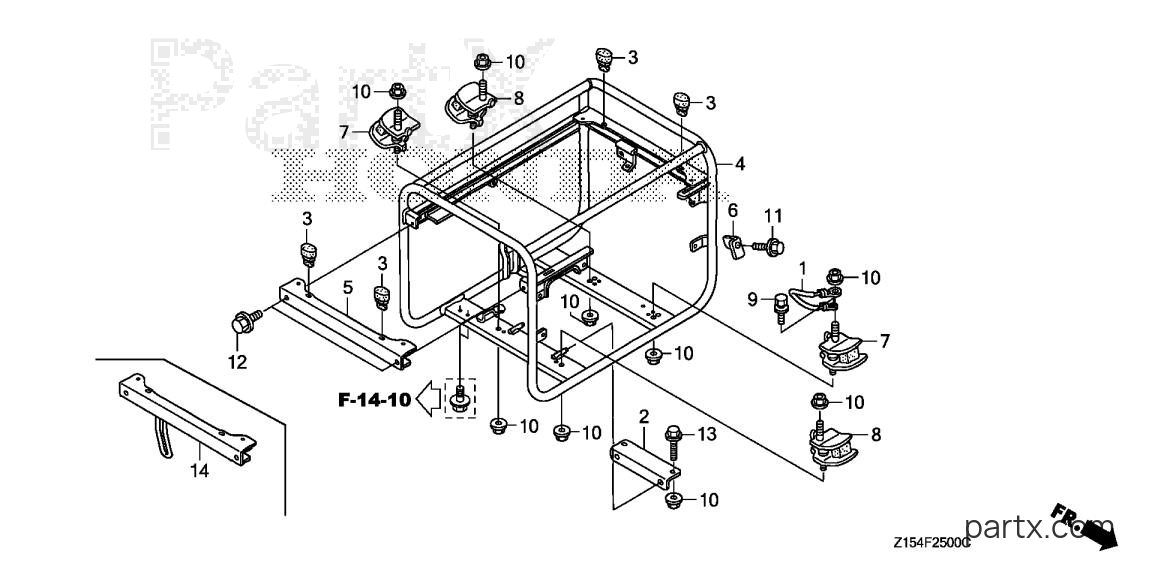

All Years Generator EP - EP2500CX1 ACH FRAME diagram
001
Honda
CABLE, SUB-GROUND32610-Z15-A80
Required: 1
CABLE, SUB-GROUND
N
$4.71
You save $0.83
002
Honda
BRACKET, STOPPER50138-Z15-000
Required: 1
BRACKET, STOPPER (NOT AVAILABLE)
N
$20.21
You save $3.57
003
Honda
RUBBER50153-ZR6-000
Required: 4
RUBBER, FUEL TANK MOUNTING
N
$5.07
You save $0.89
004
Honda
FRAME *NH1*50310-Z15-A30ZA
Required: 1
FRAME *NH1* (CX)(BLACK)
N
$309.20
You save $54.56
005
Honda
FRAME, SIDE *NH1*50315-Z15-R60ZA
Required: 1
FRAME, SIDE *NH1* (CX)(BLACK) (NOT AVAILABLE)
N
$29.90
You save $5.28
006
Honda
PLATE, GUARD50339-ZR4-T60
Required: 1
PLATE, GUARD
N
$4.62
You save $0.82
007
Honda
RUBBER, FR. (LOWER)68326-Z15-B70
Required: 2
RUBBER, FR. (LOWER) (NOT AVAILABLE)
N
$19.02
You save $3.36
008
Honda
RUBBER, RR. (LOWER)68327-Z15-B70
Required: 2
RUBBER, RR. (LOWER)
N
$22.36
You save $3.95
009
Honda
BOLT, GROUND (6X16)90148-SE0-003
Required: 1
BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)
N
$8.96
You save $1.58
010
Honda
NUT, FLANGE (8MM)94050-08000
Required: 10
NUT, FLANGE (8MM)
N
In stock
5+ in stock
$0.94
You save $0.24
011
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 1
BOLT, FLANGE (6X12)
N
In stock
Only 1 remaining
$1.58
You save $0.40
012
Honda
BOLT, FLANGE (8X16)95701-08016-07
Required: 2
BOLT, FLANGE (8X16)
N
$1.87
You save $0.33
-50%
013
Honda
BOLT, FLANGE (8X35)95701-08035-00
Required: 2
BOLT, FLANGE (8X35)
N
In stock
Only 2 remaining
$1.40
You save $1.40
014
Honda
FRAME, SIDE *NH1*50315-Z15-A30ZA
Required: 1
FRAME, SIDE *NH1* (CX)(BLACK)
N
$35.53
You save $6.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
