All diagrams for this model

All Years Generator EM - EM3800SX AN CONTROL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

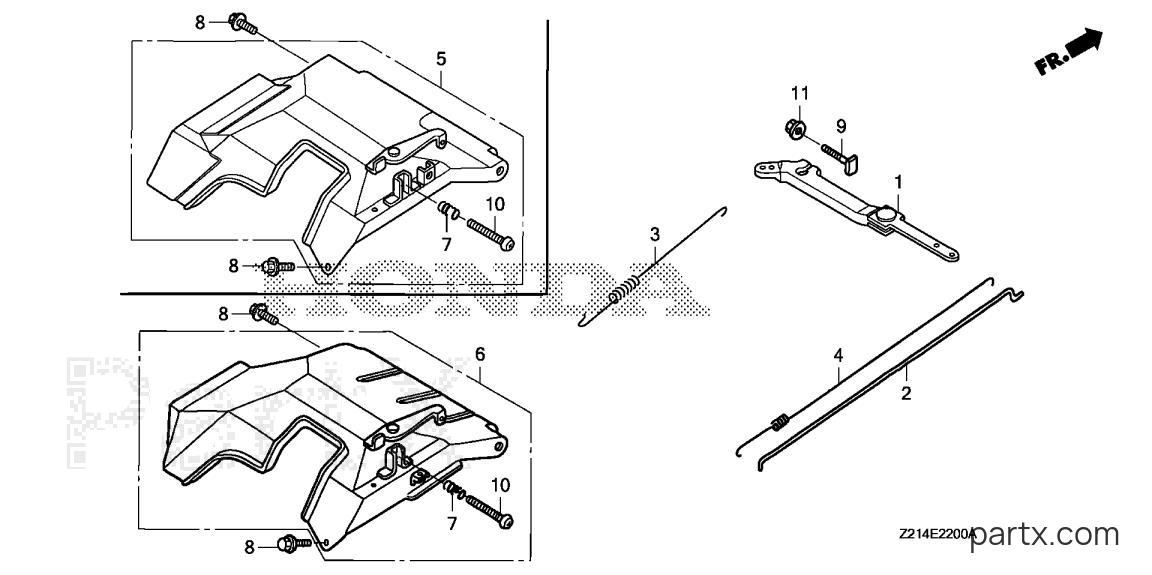

Honda EM3800SX AN - CONTROL
Change View:
ARM, GOVERNOR
001
Honda
ARM, GOVERNOR16550-ZE2-700
Required: 1
ARM, GOVERNOR
N
Cross Ship
Leaves in 2-5 days
$20.48
$17.41
You save $3.07
More details
ROD, GOVERNOR
002
Honda
ROD, GOVERNOR16555-ZE2-000
Required: 1
ROD, GOVERNOR
N
Cross Ship
Leaves in 2-5 days
$5.14
$4.37
You save $0.77
More details
SPRING (L=145.0MM)
003
Honda
SPRING (L=145.0MM)16561-ZE2-000
Required: 1
SPRING, GOVERNOR (L=145.0MM) (WIRE DIAMETER 1.0MM)
N
Cross Ship
Leaves in 2-5 days
$5.58
$4.74
You save $0.84
More details
SPRING
004
Honda
SPRING16562-ZE2-700
Required: 1
SPRING, THROTTLE RETURN
N
Cross Ship
Leaves in 2-5 days
$4.86
$4.13
You save $0.73
More details
CONTROL ASSY.
005
Honda
CONTROL ASSY.16570-ZK2-F80
Required: 1
CONTROL ASSY.
N
Cross Ship
Leaves in 2-5 days
$62.18
$52.85
You save $9.33
More details
SPRING
007
Honda
SPRING16584-883-300
Required: 1
SPRING, CONTROL ADJUSTING
N
Cross Ship
Leaves in 2-5 days
$4.86
$4.13
You save $0.73
More details
BOLT, GOVERNOR ARM
009
Honda
BOLT, GOVERNOR ARM90015-ZE5-010
Required: 1
BOLT, GOVERNOR ARM
N
Cross Ship
Leaves in 2-5 days
$3.06
$2.60
You save $0.46
More details
SCREW, PAN (5X35)
010
Honda
SCREW, PAN (5X35)93500-05035-0A
Required: 1
SCREW, PAN (5X35)
N
Cross Ship
Leaves in 2-5 days
$1.34
$1.14
You save $0.20
More details
NUT, FLANGE (6MM)
011
Honda
NUT, FLANGE (6MM)94050-06000
Required: 1
NUT, FLANGE (6MM)
N
Cross Ship
Leaves in 2-5 days
$0.82
$0.66
You save $0.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
