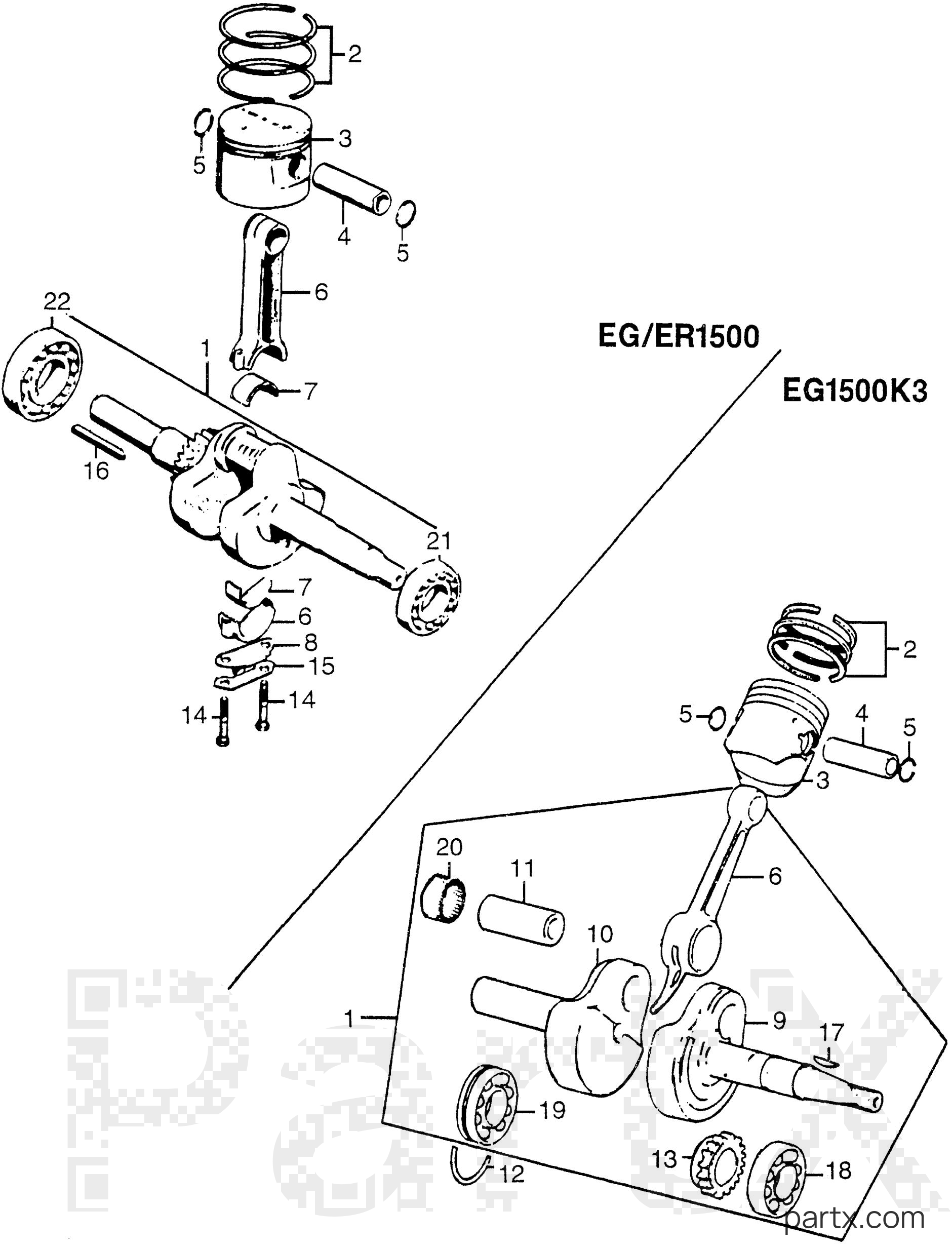

All Years Generator EG - EG1500K3 A CRANKSHAFT - PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda EG1500K3 A - CRANKSHAFT - PISTON
Change View:
001
Required: 1
CRANKSHAFT ASSY. (NOT AVAILABLE)
N
Price unavailable
RING SET (STD)
002
Honda
RING SET (STD)13011-848-010
Required: 1
RING SET, PISTON (STD)
N
Cross Ship
Leaves in 2-5 days
$38.36
$32.61
You save $5.75
More details
002
Required: 1
RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
PISTON (STD) (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
PIN, PISTON (NOT AVAILABLE)
N
Price unavailable
CLIP (18MM)
005
Honda
CLIP (18MM)94601-18000
Required: 2
CLIP, PISTON PIN (18MM)
N
Cross Ship
Leaves in 2-5 days
$1.24
$1.05
You save $0.19
More details
006
Required: 1
ROD, CONNECTING (NOT AVAILABLE)
N
Price unavailable
007
Required: 2
BEARING, CONNECTING ROD (STD) (NOT AVAILABLE)
N
Price unavailable
007
Required: 2
BEARING, CONNECTING ROD (0.25) (NOT AVAILABLE)
N
Price unavailable
007
Required: 2
BEARING, CONNECTING ROD (0.50) (NOT AVAILABLE)
N
Price unavailable
007
Required: 2
ROD, BEARING (NOT AVAILABLE)
N
Price unavailable
008
Required: 1
OIL DIPPER (NOT AVAILABLE)
N
Price unavailable
014
Required: 2
BOLT, CONNECTING ROD (NOT AVAILABLE)
N
Price unavailable
014
Required: 2
BOLT, CONNECTING ROD (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
WASHER, CONNECTING ROD LOCK (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
WASHER, CONNECTING ROD LOCK (NOT AVAILABLE)
N
Price unavailable
KEY (7X7X33)
016
Honda
KEY (7X7X33)90741-889-810
Required: 1
KEY (7X7X33) (OVER SIZE) (YELLOW)
N
Cross Ship
Leaves in 2-5 days
$9.32
$7.92
You save $1.40
More details
BEARING (6205)
021
Honda
BEARING (6205)96100-62050-10
Required: 1
BEARING, RADIAL BALL (6205)
N
Cross Ship
Leaves in 2-5 days
$26.56
$22.58
You save $3.98
More details
BEARING (6206)
022
Honda
BEARING (6206)96100-62060-00
Required: 1
BEARING, RADIAL BALL (6206)
N
Cross Ship
Leaves in 2-5 days
$30.46
$25.89
You save $4.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
