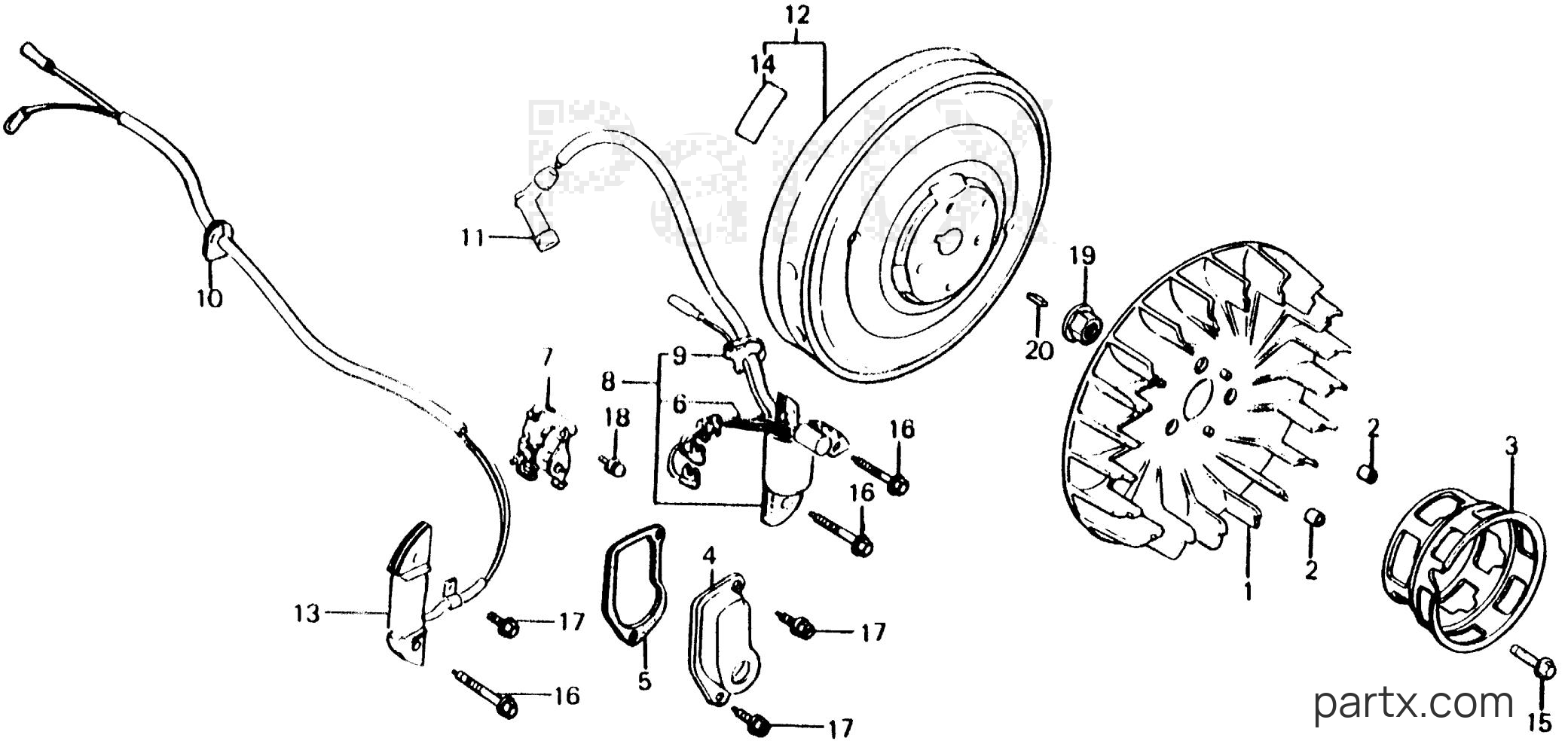

All Years Generator EG - EG1400Z A FLYWHEEL - POINTS diagram
001
Required: 1
FAN, COOLING
N
Price unavailable
002
Honda
COLLAR, FAN19512-883-000
Required: 3
COLLAR, FAN
N
$1.84
You save $0.32
003
Required: 1
PULLEY, STARTER (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
COVER, BREAKER (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
GASKET, BREAKER COVER (NOT AVAILABLE)
N
Price unavailable
$18.26
You save $3.22
007
Honda
POINTS ASSY.30280-883-005
Required: 1
POINTS ASSY.
N
$28.66
You save $5.06
008
Required: 1
COIL ASSY., IGNITION (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
GROMMET, WIRE
N
Price unavailable
010
Honda
GROMMET, WIRE30564-ZA5-000
Required: 1
GROMMET, WIRE
N
$5.29
You save $0.93
011
Required: 1
CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)
N
Price unavailable
012
Required: 1
FLYWHEEL (POINT) (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
COIL ASSY., BACK-UP (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
MARK, FLYWHEEL CAUTION (NOT AVAILABLE)
N
Price unavailable
015
Honda
BOLT, FLANGE (6X16)95701-06016-08
Required: 3
BOLT, FLANGE (6X16)
N
$1.55
You save $0.27
016
Honda
BOLT (6X32) (CT200)90017-883-000
Required: 4
BOLT, FLANGE (6X32) (CT200)
N
$2.77
You save $0.49
017
Honda
BOLT (5X10) (CT200)90019-883-000
Required: 3
BOLT, FLANGE (5X10) (CT200)
N
$2.57
You save $0.45
018
Honda
SCREW-WASHER (5X12)90051-883-000
Required: 1
SCREW-WASHER (5X12)
N
$1.73
You save $0.31
019
Honda
NUT, SPECIAL (14MM)90201-878-003
Required: 1
NUT, SPECIAL (14MM)
N
$6.26
You save $1.10
020
Honda
KEY (25X18)94401-25180
Required: 1
KEY, WOODRUFF (25X18)
N
$1.43
You save $0.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
