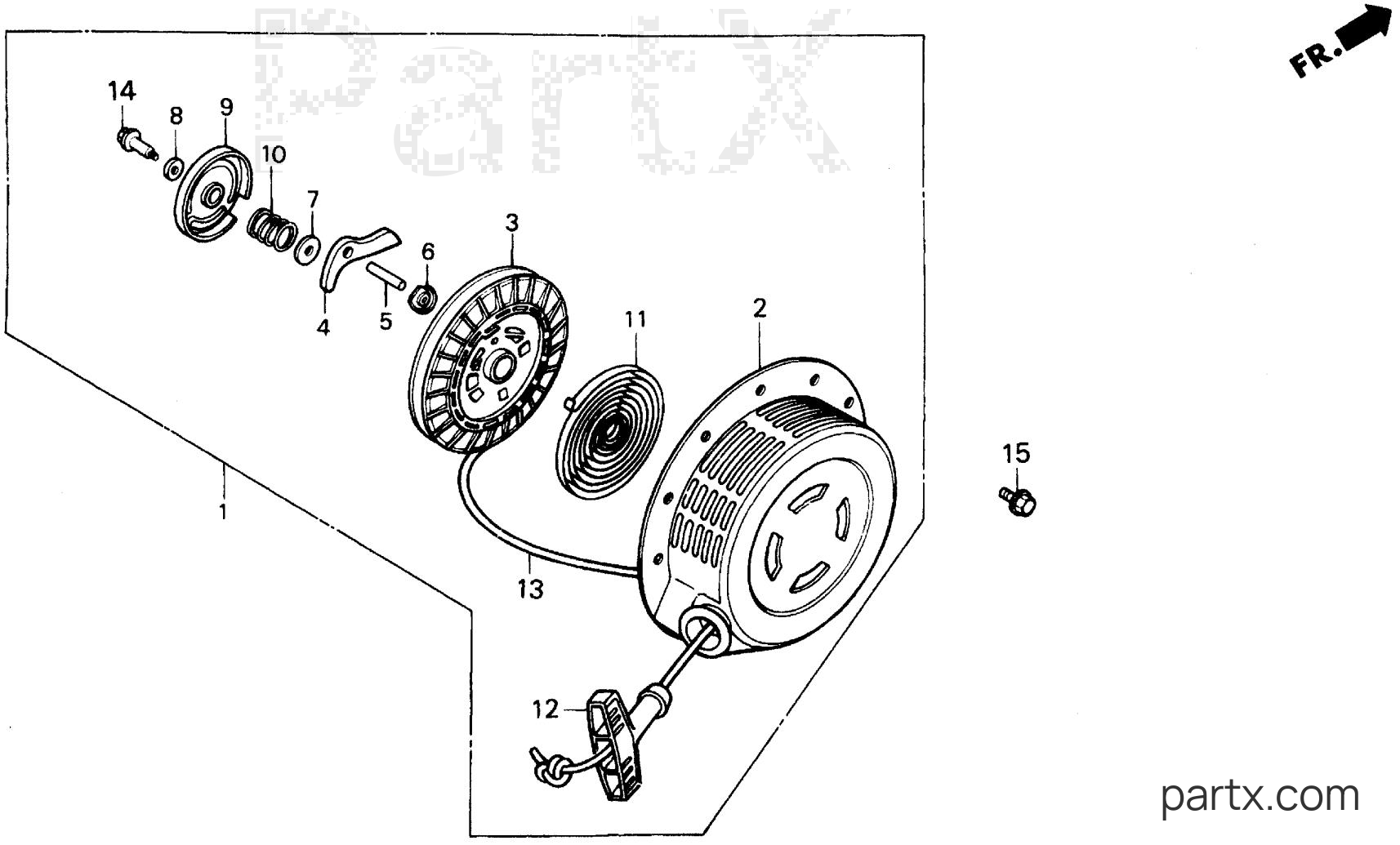

All Years Generator EB - EB5000X A RECOIL STARTER diagram
001
Honda
STARTER ASSY,RECO28400-ZE8-305
Required: 1
STARTER ASSY,RECO
N
$69.20
You save $12.21
002
Required: 1
CASE, RECOIL STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)
N
Price unavailable
003
Honda
REEL, STARTER28420-ZE8-812
Required: 1
REEL, STARTER
N
$48.64
You save $8.58
004
Required: 1
RATCHET, STARTER
N
Price unavailable
005
Honda
SHAFT, RATCHET28423-ZE1-711
Required: 1
SHAFT, RATCHET
N
$7.72
You save $1.36
006
Required: 1
PLATE, GUIDE
N
Price unavailable
006
Honda
PLATE, GUIDE28424-ZE1-712
Required: 1
PLATE, GUIDE
N
$4.01
You save $0.71
007
Honda
PLATE A, FRICTION28431-ZE1-711
Required: 1
PLATE A, FRICTION
N
$2.86
You save $0.50
008
Required: 1
PLATE B, FRICTION
N
Price unavailable
009
Required: 1
COVER, STARTER REEL
N
Price unavailable
010
Honda
SPRING, FRICTION28441-883-T20
Required: 1
SPRING, FRICTION
N
$2.75
You save $0.49
010
Honda
SPRING, FRICTION28441-ZE1-711
Required: 1
SPRING, FRICTION (D=18.5MM / L=20.5MM)
N
$2.75
You save $0.49
011
Honda
SPRING, RETURN28442-ZE1-713
Required: 1
SPRING, RETURN
N
$18.24
You save $3.22
012
Honda
GRIP, STARTER28461-889-631
Required: 1
GRIP, STARTER
N
$9.30
You save $1.64
013
Required: 1
ROPE, STARTER (N/A: USE ALT P/N 08560-ZG921-11)
N
Price unavailable
014
Honda
BOLT, REEL COVER90003-ZG0-003
Required: 1
BOLT, REEL COVER
N
$2.35
You save $0.41
015
Honda
BOLT, FLANGE (6X8)95701-06008-00
Required: 3
BOLT, FLANGE (6X8)
N
$3.38
You save $0.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
