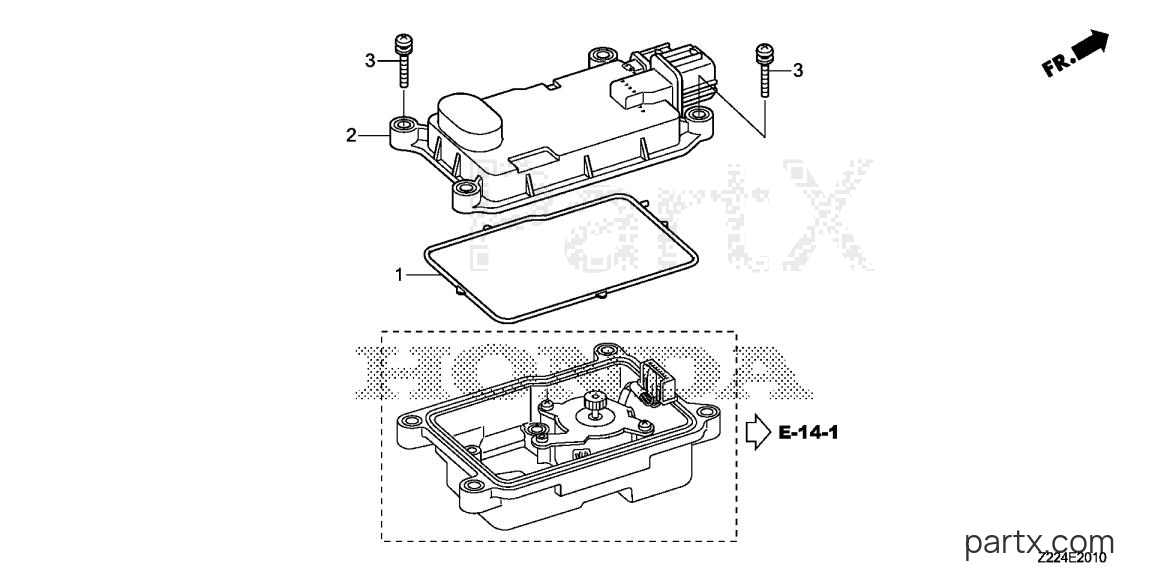

All Years Generator EB - EB6500X1 AT1 ELECTRONIC CONTROL UNIT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda EB6500X1 AT1 - ELECTRONIC CONTROL UNIT
Change View:
SEAL
001
Honda
SEAL16755-Z5T-W00
Required: 1
SEAL, ELECTRONIC CONTROL UNIT COVER
N
Cross Ship
Leaves in 2-5 days
$8.40
$6.72
You save $1.68
More details
CONTROL UNIT, EL
002
Honda
CONTROL UNIT, EL34750-Z1C-D22
Required: 1
CONTROL UNIT, ELECTRONIC
N
Cross Ship
Leaves in 2-5 days
$209.46
$167.95
You save $41.51
More details
SCREW-WASHER (4X20)
003
Honda
SCREW-WASHER (4X20)93891-04020-07
Required: 4
SCREW-WASHER (4X20)
N
Cross Ship
Leaves in 2-5 days
$1.12
$0.95
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
