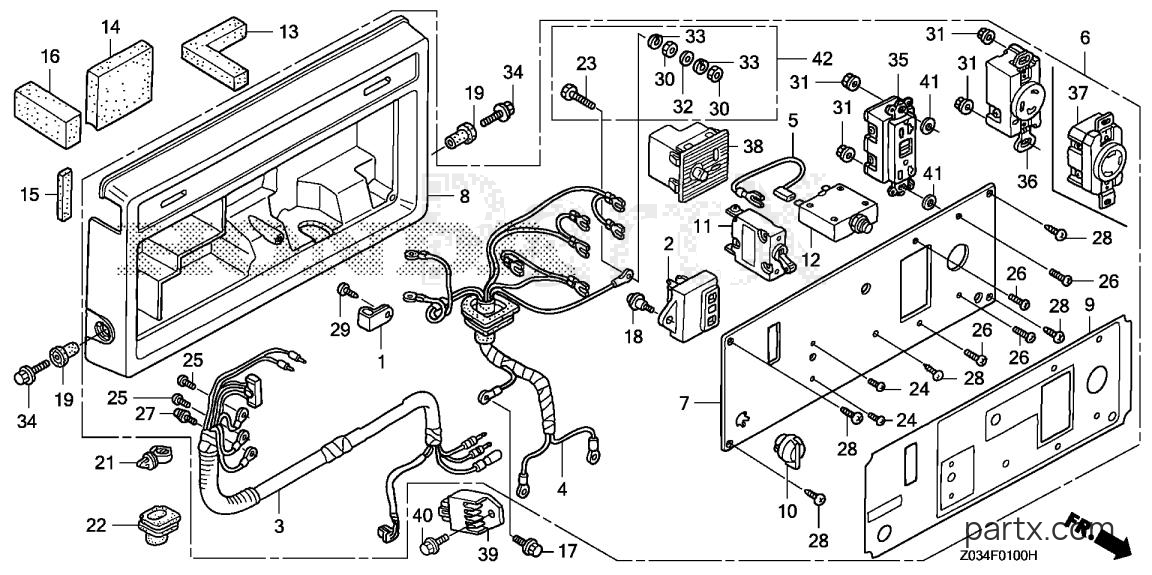

All Years Generator EB - EB3000C AG/A CONTROL BOX (EB2500C~@@~@@ EB3000C~@@~@@ EB3000CK1) diagram
001
Honda
CLAMP C, CABLE30566-895-000
Required: 1
CLAMP C, CABLE
N
$3.84
You save $0.68
002
Honda
IGNITION UNIT30585-Z03-C02
Required: 1
IGNITION UNIT
N
$80.55
You save $14.22
003
Required: 1
WIRE HARNESS ASSY., MAIN
N
Price unavailable
003
Required: 1
WIRE HARNESS ASSY., MAIN (NOT AVAILABLE)
N
Price unavailable
004
Honda
SUB-WIRE HARNESS32105-Z03-C31
Required: 1
SUB-WIRE HARNESS ASSY.
N
$56.98
You save $10.06
006
Required: 1
BOX ASSY., CONTROL (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
BOX ASSY., CONTROL (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
BOX ASSY., CONTROL (NOT AVAILABLE)
N
Price unavailable
007
Honda
PANEL, CONTROL32345-Z03-E32
Required: 1
PANEL, CONTROL
N
$110.58
You save $19.52
008
Honda
CASE, CONTROL (C1)32356-Z03-S10
Required: 1
CASE, CONTROL (C1)
N
$64.55
You save $11.39
009
Honda
MARK, CONTROL PANEL32366-Z03-E30
Required: 1
MARK, CONTROL PANEL
N
$97.39
You save $17.19
010
Honda
SWITCH, ENGINE STOP35120-Z11-E01
Required: 1
SWITCH ASSY., ENGINE STOP (RED)
N
$15.84
You save $2.80
011
Honda
BREAKER (20A)38220-ZD8-F31
Required: 1
BREAKER, CIRCUIT (20A)
N
$58.36
You save $10.30
013
Honda
INSULATOR63268-Z03-000
Required: 1
INSULATOR (A)
N
$10.74
You save $1.90
014
Honda
INSULATOR63269-Z03-000
Required: 1
INSULATOR (B)
N
$14.06
You save $2.48
015
Honda
INSULATOR63270-Z03-000
Required: 1
INSULATOR (C)
N
$2.77
You save $0.49
016
Honda
INSULATOR63271-Z03-020
Required: 1
INSULATOR (D)
N
$4.23
You save $0.75
017
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 1
BOLT, FLANGE (6X12) (CT200)
N
In stock
Only 3 remaining
$1.60
You save $0.28
018
Honda
SCREW, PAN (5X13)90108-MN0-000
Required: 1
SCREW, PAN (5X13)
N
$1.85
You save $0.33
019
Honda
NUT, WELL (6MM)90301-Z03-000
Required: 2
NUT, WELL (6MM)
N
$2.31
You save $0.41
021
Honda
CLIP, HARNESS90691-ZB7-003
Required: 1
CLIP, HARNESS
N
$3.47
You save $0.61
022
Honda
GROMMET, HARN91651-ZD8-K61
Required: 1
GROMMET, WIRE HARNESS
N
$4.93
You save $0.87
023
Honda
BOLT, HEX. (6X22)92101-06022-0A
Required: 1
BOLT, HEX. (6X22)
N
$1.60
You save $0.28
024
Honda
SCREW, PAN (3X5)93500-03005-1G
Required: 2
SCREW, PAN (3X5)
N
$0.76
You save $0.14
025
Honda
SCREW, PAN (3X8)93500-03008-0H
Required: 2
SCREW, PAN (3X8)
N
$0.76
You save $0.14
026
Honda
SCREW, PAN (4X10)93500-04010-0H
Required: 4
SCREW, PAN (4X10)
N
$0.94
You save $0.17
027
Honda
SCREW-WASHER (4X8)93893-04008-00
Required: 1
SCREW-WASHER (4X8)
N
$1.39
You save $0.25
028
Honda
SCREW, TAP (5X10)93911-25180
Required: 5
SCREW, TAPPING (5X10)
N
$0.58
You save $0.10
029
Honda
SCREW, TAP (5X12)93913-25210
Required: 1
SCREW, TAPPING (5X12)
N
$0.54
You save $0.10
030
Honda
NUT, HEX. (6MM)94001-06390-0S
Required: 2
NUT, HEX. (6MM)
N
$1.67
You save $0.29
031
Honda
NUT, FLANGE (4MM)94050-04080
Required: 4
NUT, FLANGE (4MM)
N
$1.29
You save $0.23
032
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
N
$0.64
You save $0.16
033
Honda
WASHER, SPRING (6MM)94111-06800
Required: 2
WASHER, SPRING (6MM)
N
$1.17
You save $0.21
034
Honda
BOLT, FLANGE (6X20)95701-06020-00
Required: 2
BOLT, FLANGE (6X20)
N
In stock
Only 1 remaining
$1.84
You save $0.32
035
Honda
RECPTL (20A/125V)32330-Z08-E42
Required: 1
RECEPTACLE (20A/125V)
N
$289.10
You save $51.02
036
Honda
RECPTL (20A/125V)32331-899-630
Required: 1
RECEPTACLE (20A/125V) (NOT AVAILABLE)
N
$30.36
You save $5.36
042
Honda
TERMINAL SET, GROUND31428-Z03-C00
Required: 1
TERMINAL SET, GROUND
N
$4.59
You save $0.81
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
