All diagrams for this model

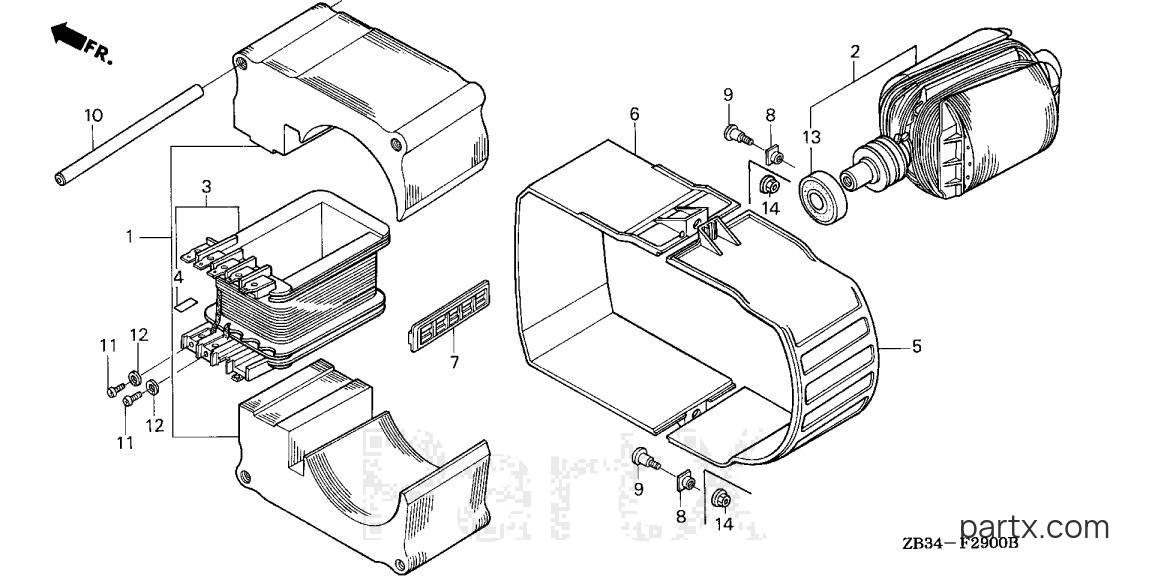

All Years Generator EB - EB2200X A ROTOR - STATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda EB2200X A - ROTOR - STATOR
Change View:
001
Required: 1
CORE SET, STATOR (NOT AVAILABLE)
N
Price unavailable
001
Required: 1
CORE SET, STATOR
N
Price unavailable
ROTOR
002
Honda
ROTOR31130-ZS2-H62
Required: 1
ROTOR (EZ-R)
N
Cross Ship
Leaves in 2-5 days
$385.06
$327.30
You save $57.76
More details
003
Required: 1
BOBBIN, STATOR COIL
N
Price unavailable
003
Required: 1
BOBBIN, STATOR COIL (NOT AVAILABLE)
N
Price unavailable
MARK, WIRE COLOR
004
Honda
MARK, WIRE COLOR31154-ZA5-830
Required: 1
MARK, WIRE COLOR
N
Cross Ship
Leaves in 2-5 days
$1.18
$1.00
You save $0.18
More details
005
Required: 1
COVER, R. STATOR (NOT AVAILABLE)
N
Price unavailable
COVER, L. STATOR
006
Honda
COVER, L. STATOR31182-ZB3-000
Required: 1
COVER, L. STATOR (NOT AVAILABLE)
N
Cross Ship
Leaves in 2-5 days
$30.06
$25.55
You save $4.51
More details
007
Required: 1
STIFFENER, STATOR (NOT AVAILABLE)
N
Price unavailable
NUT, SPECIAL (5MM)
008
Honda
NUT, SPECIAL (5MM)90016-ZA5-000
Required: 2
NUT, SPECIAL (5MM)
N
Cross Ship
Leaves in 2-5 days
$5.10
$4.33
You save $0.77
More details
BOLT
009
Honda
BOLT90018-ZA5-000
Required: 2
BOLT, STATOR COVER SETTING
N
Cross Ship
Leaves in 2-5 days
$2.24
$1.90
You save $0.34
More details
PIN, DOWEL (11X121)
010
Honda
PIN, DOWEL (11X121)90701-ZB3-000
Required: 4
PIN, DOWEL (11X121)
N
Cross Ship
Leaves in 2-5 days
$27.34
$23.24
You save $4.10
More details
SCREW, PAN (5X8)
011
Honda
SCREW, PAN (5X8)93500-05008-3J
Required: 2
SCREW, PAN (5X8)
N
Cross Ship
Leaves in 2-5 days
$1.14
$0.97
You save $0.17
More details
WASHER, SPRING (5MM)
012
Honda
WASHER, SPRING (5MM)94111-05800
Required: 2
WASHER, SPRING (5MM)
N
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
BEARING ASSY. (6203)
013
Honda
BEARING ASSY. (6203)91051-ZB3-003
Required: 1
BEARING ASSY. (6203)
N
Cross Ship
Leaves in 2-5 days
$22.06
$18.75
You save $3.31
More details
BEARING (6203UU)
013
Honda
BEARING (6203UU)96150-62030-10
Required: 1
BEARING, RADIAL BALL (6203UU)
N
Cross Ship
Leaves in 2-5 days
$21.28
$17.02
You save $4.26
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
