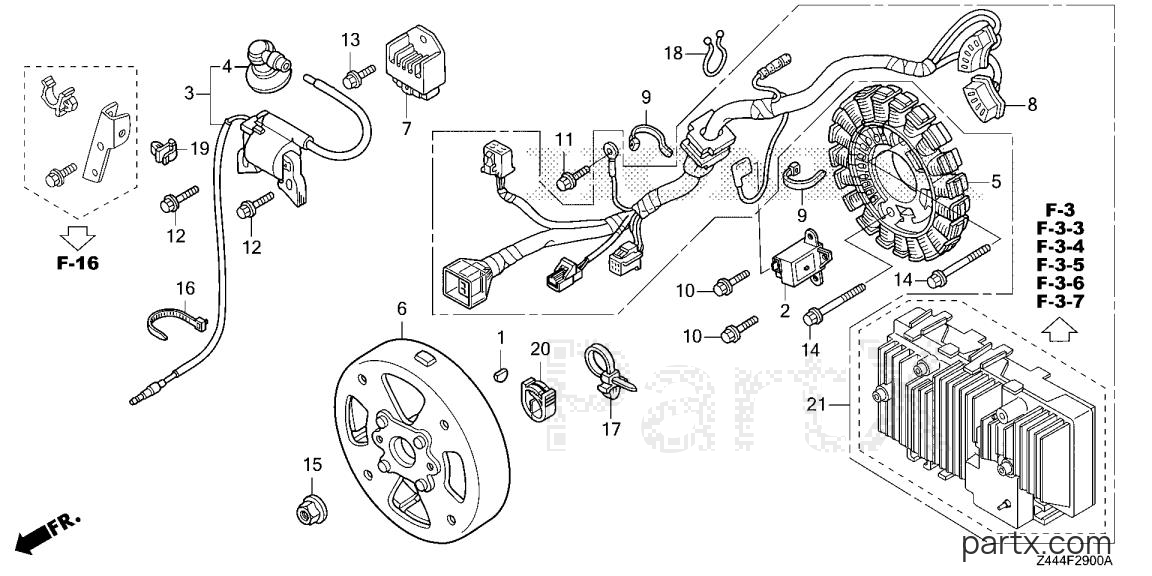

All Years Generator EU - EU2200IT AG1 ROTOR - STATOR diagram
001
Honda
KEY (25X18)13331-Z8B-900
Required: 1
KEY, SPECIAL WOODRUFF (25X18)
N
$5.02
You save $0.88
002
Honda
GENERATOR, PULSE30300-Z07-003
Required: 1
GENERATOR, PULSE
N
$32.79
You save $5.79
003
Honda
COIL ASSY., IGNITION30500-Z44-A01
Required: 1
COIL ASSY., IGNITION
N
$20.82
You save $3.67
004
Honda
CAP ASSY.30700-Z39-C91
Required: 1
CAP ASSY., NOISE SUPPRESSOR
N
$8.84
You save $1.56
$78.48
You save $13.85
$62.84
You save $11.09
008
Honda
WIRE HARNESS ASSY.32158-Z44-F31
Required: 1
WIRE HARNESS ASSY., GENERATOR
N
$53.19
You save $9.39
008
Honda
WIRE HARNESS ASSY.32158-Z44-F32
Required: 1
WIRE HARNESS ASSY., GENERATOR
N
$48.04
You save $8.48
009
Honda
BAND, NYLON83645-GG0-000
Required: 2
BAND, NYLON
N
$2.01
You save $0.35
010
Honda
BOLT (5X14) (CT200)90012-ZM3-U30
Required: 2
BOLT, FLANGE (5X14) (CT200)
N
$1.85
You save $0.33
011
Honda
BOLT (5X10) (CT200)90019-883-000
Required: 1
BOLT, FLANGE (5X10) (CT200)
N
$2.57
You save $0.45
012
Honda
BOLT (6X20) (CT200)90022-888-010
Required: 2
BOLT, FLANGE (6X20) (CT200)
N
$2.50
You save $0.44
014
Honda
BOLT, FLANGE (5X35)90101-Z44-000
Required: 2
BOLT, FLANGE (5X35)
N
$1.31
You save $0.23
015
Honda
NUT, SPECIAL (14MM)90201-Z0T-800
Required: 1
NUT, SPECIAL (14MM)
N
$2.41
You save $0.43
016
Honda
BAND, HARNESS90673-SK7-A01
Required: 1
BAND, HARNESS (BLACK)
N
$5.05
You save $0.89
017
Honda
BAND, HARN (150MM)90676-SA8-003
Required: 1
BAND, WIRE HARNESS (150MM) (BLUE)
N
$5.20
You save $0.92
018
Honda
BAND, TUBE90683-GS9-670
Required: 1
BAND, TUBE
N
$2.67
You save $0.47
019
Honda
CLIP, WIRE HARNESS90683-SB3-003
Required: 1
CLIP, WIRE HARNESS
N
$7.04
You save $1.24
020
Honda
CLIP, WIRE HARNESS90683-ZX2-003
Required: 1
CLIP, WIRE HARNESS
N
$6.54
You save $1.16
021
Honda
UNIT KIT, INVERTER06310-Z44-J30
Required: 1
UNIT KIT, INVERTER (EB-AG)
N
$237.18
You save $41.86
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
