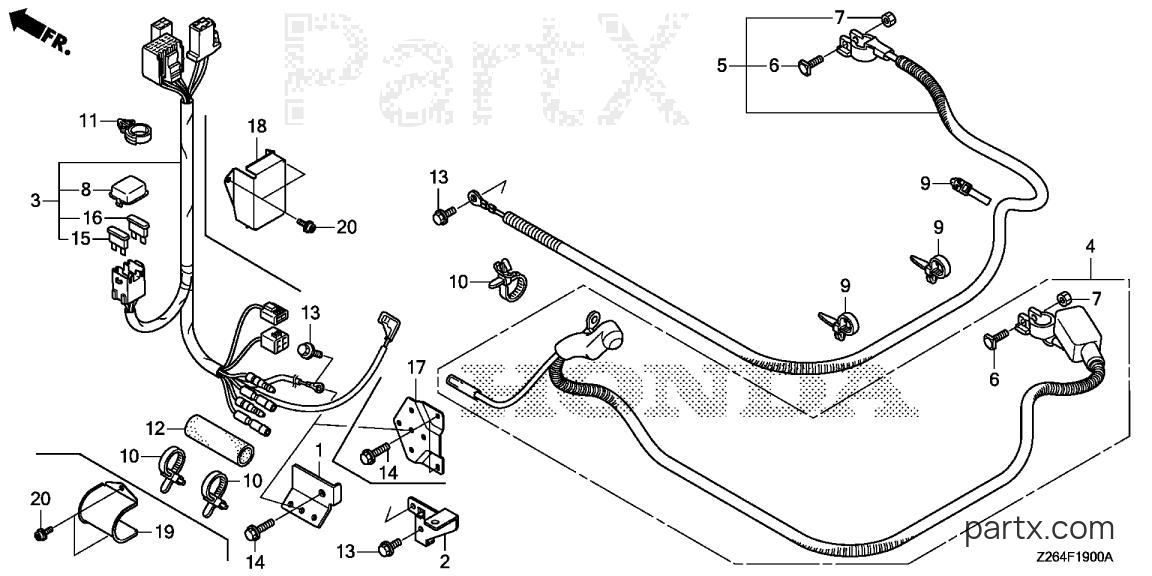

All Years Generator EB - EB10000 AH WIRE HARNESS diagram
002
Honda
BRACKET32104-Z26-E80
Required: 1
BRACKET, WIRE HARNESS CLIP (B)
N
$9.25
You save $1.63
003
Honda
WIRE HARNESS, ENGINE32110-Z26-F30
Required: 1
WIRE HARNESS ASSY., ENGINE (AG)
N
$112.18
You save $19.80
004
Honda
CABLE ASSY., STARTER32410-Z26-C30
Required: 1
CABLE ASSY., STARTER
N
$61.45
You save $10.84
005
Honda
CABLE ASSY., GROUND32600-Z26-C30
Required: 1
CABLE ASSY., GROUND
N
$65.84
You save $11.62
006
Honda
BOLT32601-SK7-900
Required: 2
BOLT, BATTERY TERMINAL
N
$9.81
You save $1.73
007
Honda
NUT32602-SK7-900
Required: 2
NUT, BATTERY TERMINAL
N
$6.00
You save $1.06
008
Honda
CASE, FUSE (2P)38224-SB2-003
Required: 1
CASE, FUSE (2P)
N
$16.35
You save $2.89
009
Honda
TIE, CABLE90672-ZB4-000
Required: 3
TIE, CABLE
N
$3.06
You save $0.54
010
Honda
BAND, WIRE HARNESS90676-Z26-003
Required: 3
BAND, WIRE HARNESS
N
$3.40
You save $0.60
011
Honda
CLIP, HARNESS90684-ZA0-601
Required: 1
CLIP, HARNESS
N
$3.64
You save $0.64
012
Honda
TUBE, CORD91451-Z26-F30
Required: 1
TUBE, CORD
N
$10.15
You save $1.79
013
Honda
BOLT, FLANGE (6X10)95701-06010-00
Required: 3
BOLT, FLANGE (6X10)
N
$1.23
You save $0.31
014
Honda
BOLT, FLANGE (6X20)95701-06020-00
Required: 2
BOLT, FLANGE (6X20)
N
In stock
Only 1 remaining
$1.84
You save $0.32
015
Honda
FUSE, BLADE (5A)98200-30500
Required: 1
FUSE, BLADE (5A)
N
$1.36
You save $0.24
016
Honda
FUSE, BLADE (20A)98200-32000
Required: 1
FUSE, BLADE (20A)
N
$1.36
You save $0.24
017
Honda
BRACKET32103-Z26-F30
Required: 1
BRACKET, WIRE HARNESS CLIP (A)
N
$21.74
You save $3.84
018
Honda
COVER *NH105*32106-Z26-F30ZA
Required: 1
COVER, TAMPER PROOF (UPPER) *NH105*(MAT BLACK)
N
$22.71
You save $4.01
019
Honda
COVER, TAMPER PROOF32107-Z26-F30
Required: 1
COVER, TAMPER PROOF (LOWER)
N
$12.66
You save $2.24
020
Honda
BOLT (6X12)90101-Z26-F30
Required: 4
BOLT, FLANGE TORX (6X12)
N
$3.16
You save $0.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
