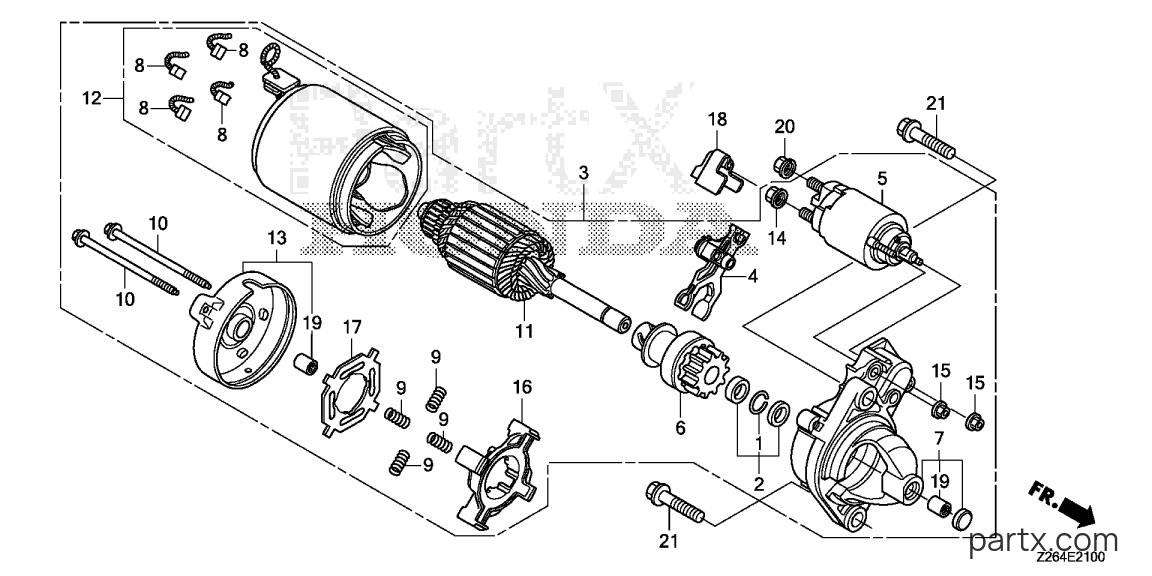

All Years Generator EB - EB10000 AH STARTER MOTOR diagram
001
Honda
RING, SNAP30201-PH9-004
Required: 1
RING, SNAP (DENSO)
N
$3.01
You save $0.53
002
Honda
COLLAR SET30202-PZ1-003
Required: 1
COLLAR SET, CLUTCH STOP
N
$18.34
You save $3.24
003
Honda
STARTER MOTOR ASSY.31200-Z6L-003
Required: 1
STARTER MOTOR ASSY.
N
$294.05
You save $51.89
004
Honda
LEVER, PINION DRIVE31203-PH9-004
Required: 1
LEVER, PINION DRIVE
N
$35.65
You save $6.29
005
Honda
SWITCH ASSY., MAGNET31204-ZJ1-H02
Required: 1
SWITCH ASSY., MAGNET
N
$174.71
You save $30.83
006
Honda
CLUTCH, OVERRUNNING31207-ZE9-H01
Required: 1
CLUTCH, OVERRUNNING
N
$110.16
You save $19.44
007
Honda
HOUSING, DRIVE SIDE31208-Z6L-003
Required: 1
HOUSING, DRIVE SIDE
N
$94.32
You save $16.64
$17.37
You save $3.07
009
Honda
SPRING, BRUSH31212-PH9-004
Required: 4
SPRING, BRUSH
N
$6.36
You save $1.12
010
Honda
BOLT, THROUGH31214-PH9-004
Required: 2
BOLT, THROUGH
N
$9.42
You save $1.66
$115.86
You save $20.45
$273.51
You save $48.27
013
Honda
FRAME31219-Z6L-003
Required: 1
FRAME, COMMUTATOR END
N
$48.84
You save $8.62
014
Honda
NUT, HEX. (8MM)31220-PH9-004
Required: 1
NUT, HEX. (8MM)
N
$3.71
You save $0.65
015
Honda
NUT, HEX. (6MM)31223-PA0-006
Required: 2
NUT, HEX. (6MM)
N
$3.89
You save $0.69
016
Honda
HOLDER, BRUSH31231-PH9-004
Required: 1
HOLDER, BRUSH
N
$51.85
You save $9.15
017
Honda
INSLTR, BRUSH HOLDER31233-PH9-004
Required: 1
INSULATOR, BRUSH HOLDER
N
$31.88
You save $5.63
018
Honda
COVER, TERMINAL31234-Z6L-000
Required: 1
COVER, TERMINAL
N
$4.05
You save $0.71
$8.67
You save $1.53
020
Honda
NUT-WASHER (8MM)94070-08080
Required: 1
NUT-WASHER (8MM)
N
$1.50
You save $0.26
021
Honda
BOLT, FLANGE (10X40)95701-10040-00
Required: 2
BOLT, FLANGE (10X40)
N
$1.56
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
