All diagrams for this model

All Years Engines GXV - GXV340UA2 DX3 LABEL - TOOL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

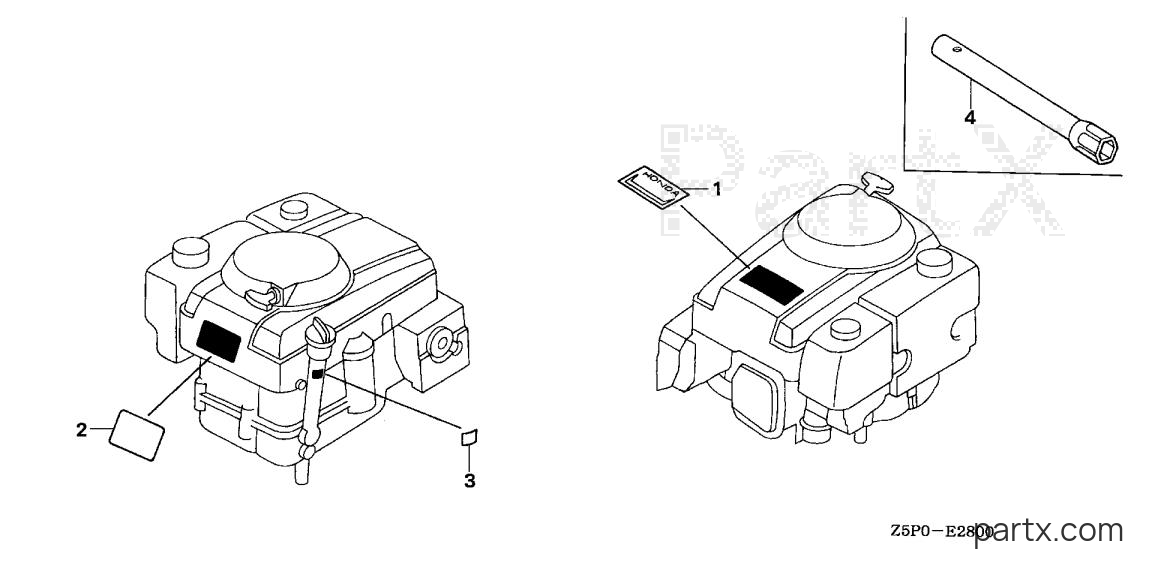

Honda GXV340UA2 DX3 - LABEL - TOOL
Change View:
EMBLEM (11.0)
001
Honda
EMBLEM (11.0)87101-ZE9-V01
Required: 1
EMBLEM, TOP COVER (11.0)
N
Cross Ship
Leaves in 2-5 days
$2.58
$2.19
You save $0.39
More details
MARK
002
Honda
MARK87516-Z4H-810
Required: 1
MARK, OPERATOR CAUTION (PICTOGRAPH)(MADE IN THAI)
N
Cross Ship
Leaves in 2-5 days
$2.06
$1.75
You save $0.31
More details
002
Required: 1
MARK, OPERATOR CAUTION (ENGLISH)(MADE IN THAI)
N
Price unavailable
MARK
002
Honda
MARK87516-Z4H-020
Required: 1
MARK, OPERATOR CAUTION (ENGLISH)(MADE IN THAI)
N
Cross Ship
Leaves in 2-5 days
$5.36
$4.56
You save $0.80
More details
MARK, TYPE (DE33)
003
Honda
MARK, TYPE (DE33)87601-ZF5-W20
Required: 1
MARK, TYPE (DE33)
N
Cross Ship
Leaves in 2-5 days
$4.32
$3.67
You save $0.65
More details
WRENCH, BOX (P21)
004
Honda
WRENCH, BOX (P21)99004-21002
Required: 1
WRENCH, BOX (P21)
N
Cross Ship
Leaves in 2-5 days
$4.72
$4.01
You save $0.71
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
