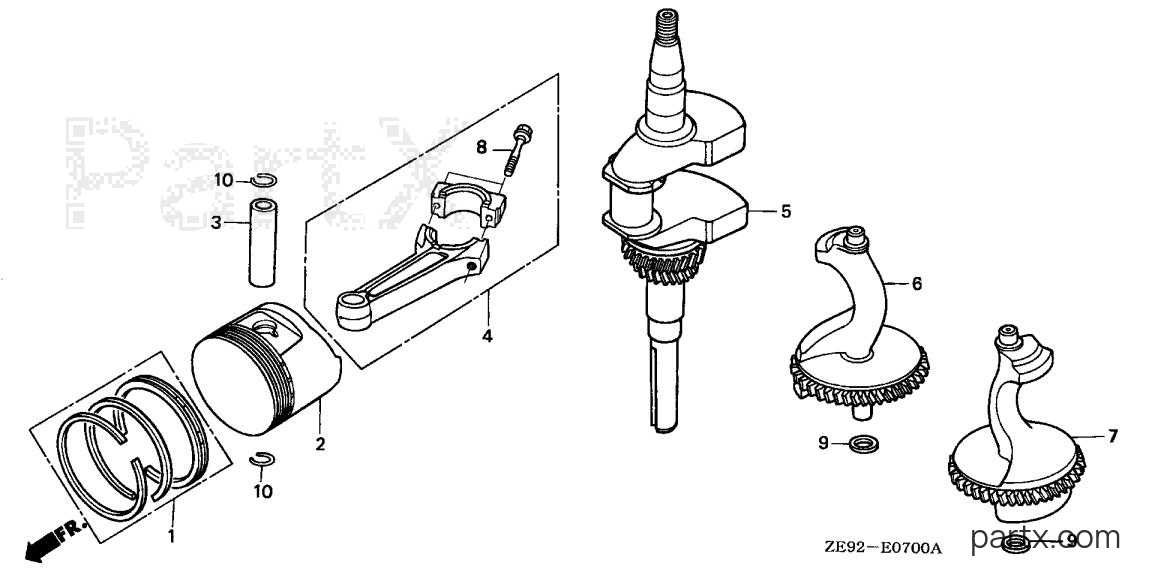

All Years Engines GXV - GXV340K2 DN3 CRANKSHAFT - PISTON diagram
001
Honda
RING SET (STD)13010-ZE3-003
Required: 1
RING SET, PISTON (STD) (NIPPON)
N
$39.10
You save $6.90
001
Honda
RING SET (0.25)13011-ZE3-003
Required: 1
RING SET, PISTON (0.25) (NIPPON)
N
$62.63
You save $11.05
001
Honda
RING SET (0.50)13012-ZE3-003
Required: 1
RING SET, PISTON (0.50) (NIPPON)
N
$55.95
You save $9.87
001
Required: 1
RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE)
N
Price unavailable
001
Required: 1
RING SET, PISTON (0.75) (TEIKOKU)
N
Price unavailable
002
Honda
PISTON (STD)13101-ZE3-W00
Required: 1
PISTON (STD)
N
$52.38
You save $9.24
002
Required: 1
PISTON (0.25) (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
PISTON (0.50) (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
PISTON (0.75) (NOT AVAILABLE)
N
Price unavailable
003
Honda
PIN, PISTON13111-ZF6-000
Required: 1
PIN, PISTON
N
$12.73
You save $2.25
004
Honda
ROD ASSY. (STD)13200-Z1E-000
Required: 1
ROD ASSY., CONNECTING (STD)
N
$124.90
You save $22.04
004
Required: 1
ROD ASSY., CONNECTING (0.25 LOWER SIZE) (NOT AVAILABLE)
N
Price unavailable
005
Honda
CRANKSHAFT13310-ZF5-040
Required: 1
CRANKSHAFT
N
$240.01
You save $42.36
006
Honda
WEIGHT A, BALANCER13351-ZE9-603
Required: 1
WEIGHT A, BALANCER
N
$200.43
You save $35.37
007
Honda
WEIGHT B, BALANCER13356-ZE9-604
Required: 1
WEIGHT B, BALANCER
N
$212.53
You save $37.51
008
Honda
BOLT, CONNECTING ROD90001-ZE8-000
Required: 2
BOLT, CONNECTING ROD
N
$3.69
You save $0.65
009
Honda
WASHER (15MM)90417-HA0-000
Required: 2
WASHER, THRUST (15MM)
N
$4.18
You save $0.74
010
Honda
CLIP (20MM)90601-ZE3-000
Required: 2
CLIP, PISTON PIN (20MM)
N
$1.90
You save $0.34
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
