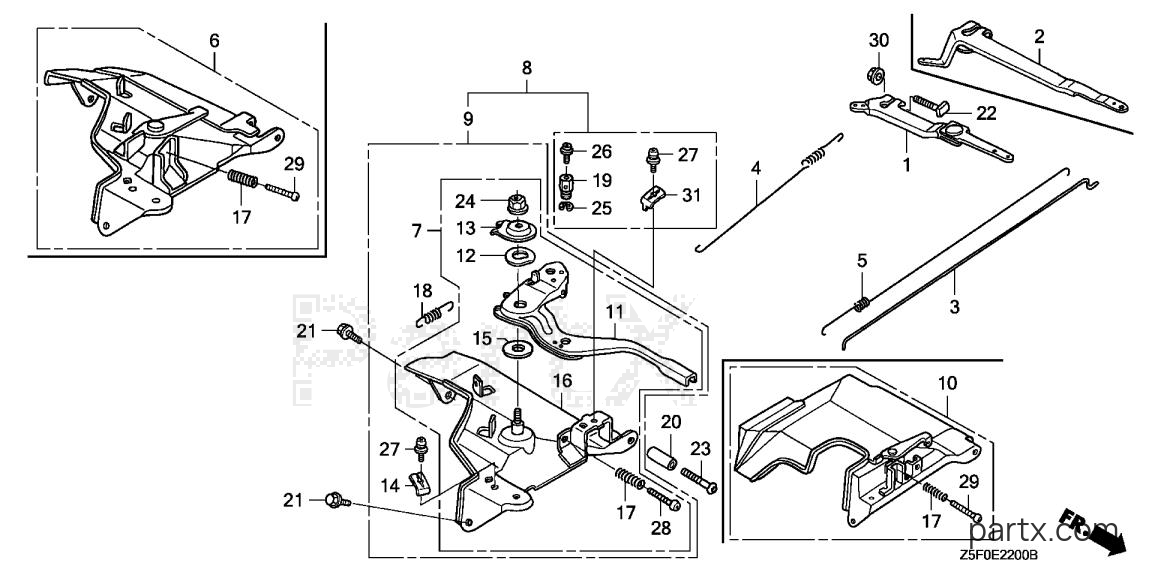

All Years Engines GX - GX240U1 WKK2 CONTROL diagram
002
Honda
ARM, GOVERNOR16551-ZE2-000
Required: 1
ARM, GOVERNOR
N
$15.21
You save $2.69
003
Honda
ROD, GOVERNOR16555-ZE2-000
Required: 1
ROD, GOVERNOR
N
$4.37
You save $0.77
004
Honda
SPRING (L=145.0MM)16561-ZE2-000
Required: 1
SPRING, GOVERNOR (L=145.0MM) (WIRE DIAMETER 1.0MM)
N
$4.74
You save $0.84
005
Honda
SPRING16562-ZE2-000
Required: 1
SPRING, THROTTLE RETURN
N
$4.13
You save $0.73
009
Honda
CONTROL ASSY.16570-ZE2-W20
Required: 1
CONTROL ASSY. (REMOTE)
N
$41.29
You save $7.29
011
Honda
LEVER, CONTROL16571-ZE2-W00
Required: 1
LEVER, CONTROL
N
$11.58
You save $2.04
012
Honda
SPRING, LEVER16574-ZE1-000
Required: 1
SPRING, LEVER
N
$3.50
You save $0.62
013
Honda
WASHER16575-ZE2-W00
Required: 1
WASHER, CONTROL LEVER
N
$4.47
You save $0.79
014
Honda
HOLDER, CABLE16576-891-000
Required: 1
HOLDER, CABLE
N
$4.20
You save $0.74
015
Honda
SPACER16578-ZE1-000
Required: 1
SPACER, CONTROL LEVER
N
$4.44
You save $0.78
016
Honda
BASE, CONTROL16581-ZE2-W00
Required: 1
BASE, CONTROL
N
$16.56
You save $2.92
017
Honda
SPRING16584-883-300
Required: 1
SPRING, CONTROL ADJUSTING
N
$4.13
You save $0.73
018
Honda
SPRING, CABLE RETURN16592-883-310
Required: 1
SPRING, CABLE RETURN
N
$2.75
You save $0.49
021
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 2
BOLT, FLANGE (6X12) (CT200)
N
In stock
Only 3 remaining
$1.60
You save $0.28
022
Honda
BOLT, GOVERNOR ARM90015-ZE5-010
Required: 1
BOLT, GOVERNOR ARM
N
$2.60
You save $0.46
024
Honda
NUT, SELF-LOCK (6MM)90114-SA0-000
Required: 1
NUT, SELF-LOCK (6MM)
N
In stock
Only 3 remaining
$3.12
You save $0.78
027
Honda
SCREW, PAN (5X16)93500-05016-0A
Required: 1
SCREW, PAN (5X16)
N
$0.94
You save $0.17
028
Honda
SCREW, PAN (5X28)93500-05028-0A
Required: 1
SCREW, PAN (5X28)
N
$0.94
You save $0.17
030
Honda
NUT, FLANGE (6MM)94050-06000
Required: 1
NUT, FLANGE (6MM)
N
$0.66
You save $0.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
