All Years Engines GX - GX200UT VGS5 PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

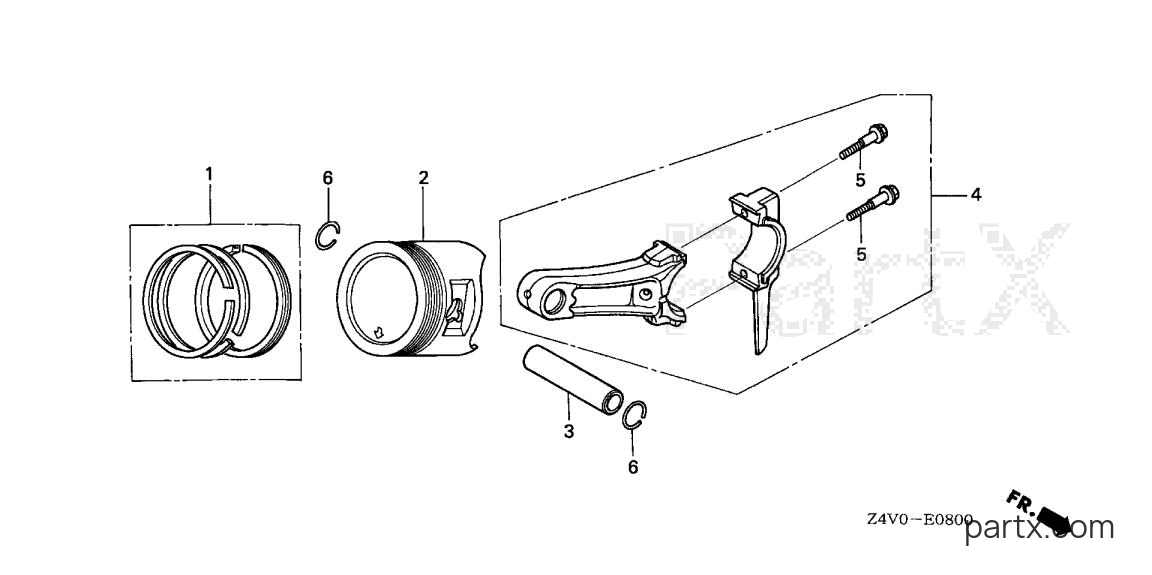

Honda GX200UT VGS5 - PISTON
Change View:
RING SET (STD)
001
Honda
RING SET (STD)13010-Z4K-004
Required: 1
RING SET, PISTON (STD) (TPR)
N
Cross Ship
Leaves in 2-5 days
$32.18
$25.74
You save $6.44
More details
RING SET (STD)
001
Honda
RING SET (STD)13010-Z4M-003
Required: 1
RING SET, PISTON (STD) (RIKEN)
N
Cross Ship
Leaves in 2-5 days
$43.16
$36.69
You save $6.47
More details
PISTON (STD)
002
Honda
PISTON (STD)13101-Z4V-800
Required: 1
PISTON (STD)
N
Cross Ship
Leaves in 2-5 days
$24.72
$21.01
You save $3.71
More details
PIN, PISTON
003
Honda
PIN, PISTON13111-ZDK-003
Required: 1
PIN, PISTON
N
Cross Ship
Leaves in 2-5 days
$9.52
$8.09
You save $1.43
More details
ROD, CONNECTING
004
Honda
ROD, CONNECTING13200-Z4V-900
Required: 1
ROD ASSY., CONNECTING
N
Cross Ship
Leaves in 2-5 days
$12.70
$10.79
You save $1.90
More details
BOLT, CONNECTING ROD
005
Honda
BOLT, CONNECTING ROD90001-ZE1-000
Required: 2
BOLT, CONNECTING ROD
N
Cross Ship
Leaves in 2-5 days
$3.68
$3.13
You save $0.55
More details
CLIP (18MM)
006
Honda
CLIP (18MM)90551-ZE1-000
Required: 2
CLIP, PISTON PIN (18MM)
N
Cross Ship
Leaves in 2-5 days
$1.36
$1.16
You save $0.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
