All Years Engines GX - GX160RT2 VWS1 PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

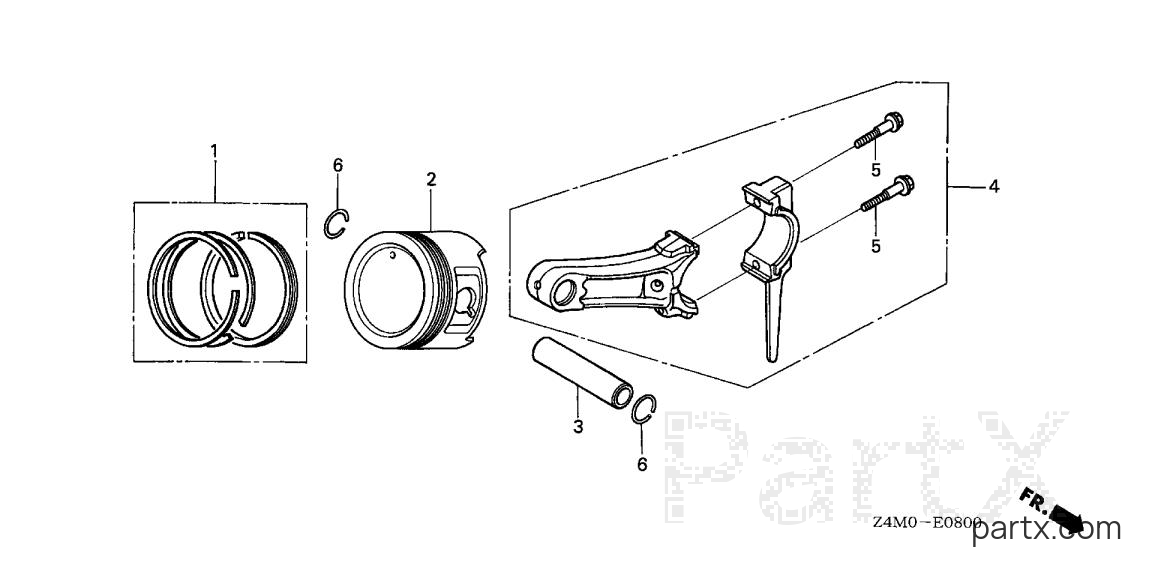

Honda GX160RT2 VWS1 - PISTON
Change View:
RING SET (STD)
001
Honda
RING SET (STD)13010-Z4M-801
Required: 1
RING SET, PISTON (STD) (RIKEN)
N
Cross Ship
Leaves in 2-5 days
$39.42
$33.51
You save $5.91
More details
PISTON (STD)
002
Honda
PISTON (STD)13101-Z4M-801
Required: 1
PISTON (STD)
N
Cross Ship
Leaves in 2-5 days
$17.36
$14.76
You save $2.60
More details
PIN, PISTON
003
Honda
PIN, PISTON13111-ZDK-003
Required: 1
PIN, PISTON
N
Cross Ship
Leaves in 2-5 days
$9.52
$8.09
You save $1.43
More details
BOLT (6X34.5)
005
Honda
BOLT (6X34.5)90001-Z4M-000
Required: 2
BOLT, CONNECTING ROD (6X34.5)
N
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
CLIP (18MM)
006
Honda
CLIP (18MM)90551-ZE1-000
Required: 2
CLIP, PISTON PIN (18MM)
N
Cross Ship
Leaves in 2-5 days
$1.36
$1.16
You save $0.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
