All diagrams for this model

All Years Engines GX - GX110 HX LABEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

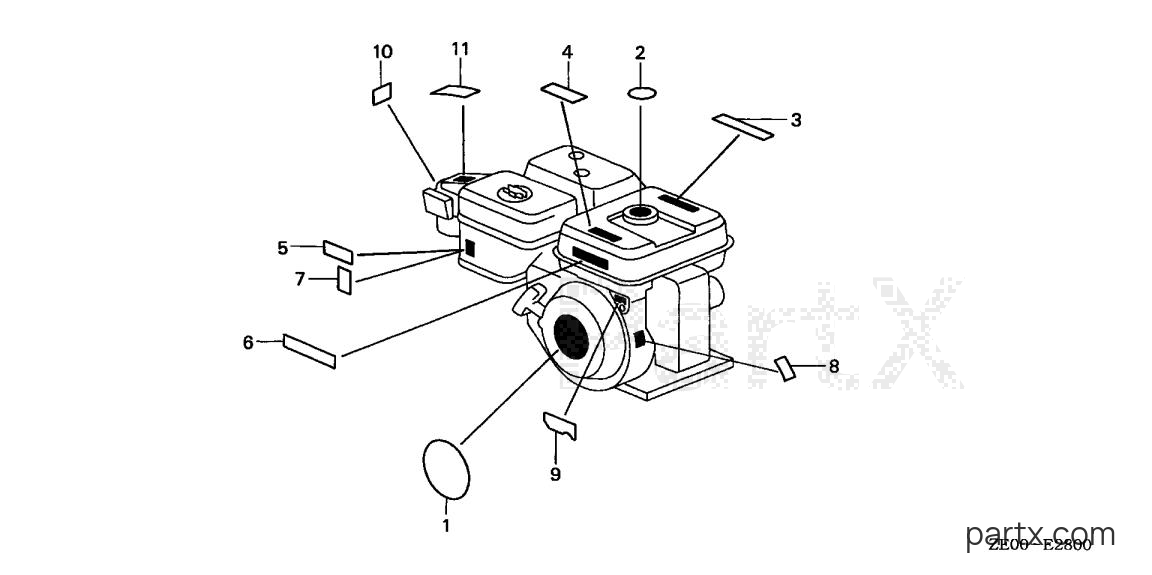

Honda GX110 HX - LABEL
Change View:
001
Required: 1
EMBLEM (EXTERNAL/ALERT) (NOT AVAILABLE)
N
Price unavailable
MARK, CAUTION
002
Honda
MARK, CAUTION87522-ZE1-810
Required: 1
MARK, CAUTION
N
Cross Ship
Leaves in 2-5 days
$2.92
$2.48
You save $0.44
More details
MARK, CHOKE
007
Honda
MARK, CHOKE87528-ZE1-810
Required: 1
MARK, CHOKE
N
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
009
Required: 1
MARK, OIL ALERT (EXTERNAL) (NOT AVAILABLE)
N
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
