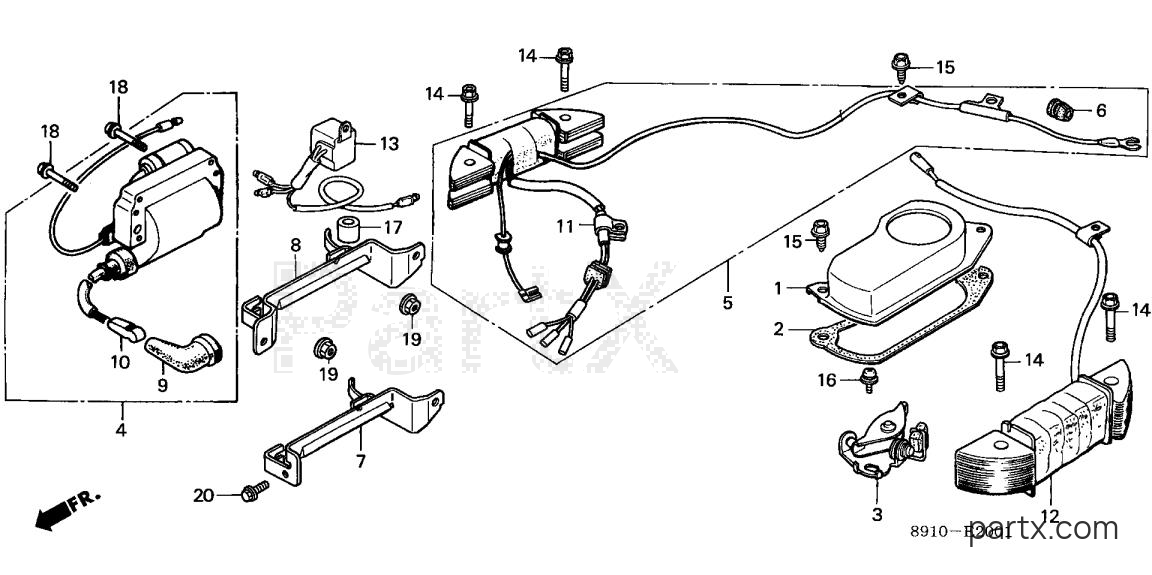

All Years Engines GV - GV400K1 ADJD IGNITION COIL (2) diagram
001
Required: 1
COVER, BREAKER (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
GASKET, BREAKER COVER (NOT AVAILABLE)
N
Price unavailable
003
Honda
POINTS ASSY.30280-890-000
Required: 1
POINTS ASSY. (NOT AVAILABLE)
N
$22.97
You save $4.05
004
Required: 1
COIL ASSY., A.C. IGNITION
N
Price unavailable
004
Required: 1
COIL ASSY., A.C. IGNITION (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
COIL ASSY., PRIMARY (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
GROMMET, PRIMARY WIRE (NOT AVAILABLE)
N
Price unavailable
008
Required: 1
STAY, IGNITION COIL & MODULE IGNITION CONTROL (CDI) (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
CAP, IGNITION
N
Price unavailable
010
Honda
TERMINAL, PLUG30702-888-003
Required: 1
TERMINAL, PLUG
N
$7.94
You save $1.40
011
Honda
CLAMP, IGNITION WIRE30702-890-000
Required: 1
CLAMP, IGNITION WIRE
N
$5.51
You save $0.97
012
Required: 1
COIL ASSY., LAMP (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
RECTIFIER, SILICON (NOT AVAILABLE)
N
Price unavailable
014
Honda
BOLT (6X40) (CT200)90012-888-000
Required: 4
BOLT, FLANGE (6X40) (CT200)
N
$3.82
You save $0.68
015
Honda
BOLT, FLANGE (5X14)90012-896-750
Required: 2
BOLT, FLANGE (5X14)
N
$1.31
You save $0.23
016
Honda
SCREW-WASHER (5X12)90051-883-000
Required: 1
SCREW-WASHER (5X12)
N
$1.73
You save $0.31
017
Required: 1
TUBE, CORD (NOT AVAILABLE)
N
Price unavailable
018
Honda
SCREW-WASHER (6X25)93893-06025-10
Required: 2
SCREW-WASHER (6X25)
N
$1.02
You save $0.18
-50%
019
Honda
NUT, FLANGE (6MM)94050-06080
Required: 2
NUT, FLANGE (6MM)
N
In stock
Only 5 remaining
$0.41
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
