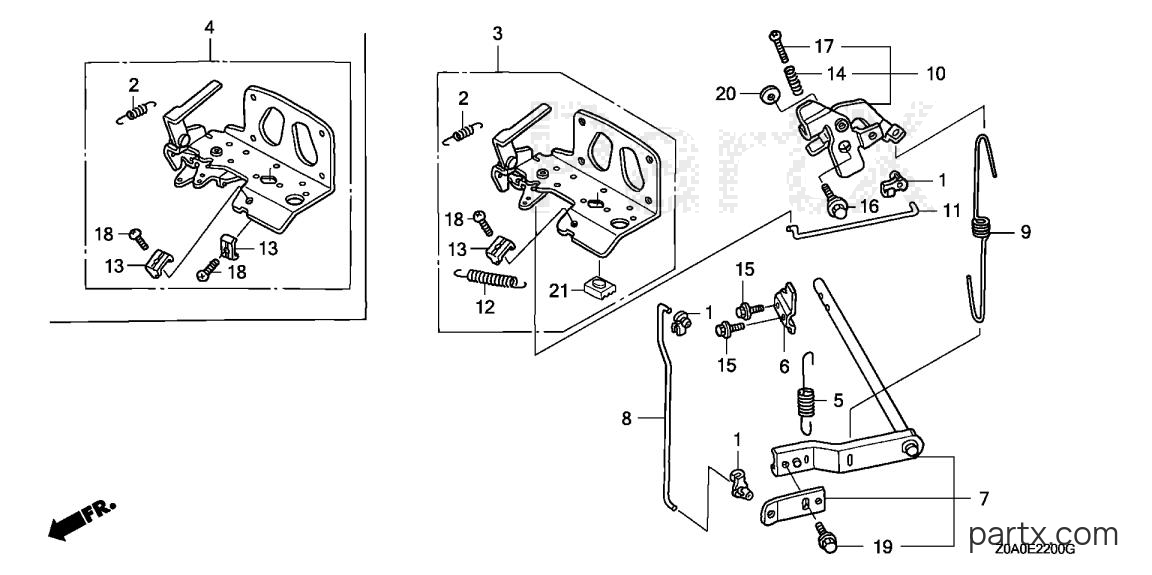

All Years Engines GXV - GXV530 DXA2 CONTROL diagram
001
Honda
ROD, JOINT16263-ZJ7-871
Required: 3
ROD, JOINT
N
$2.21
You save $0.39
002
Honda
SPRING, CHOKE RETURN16268-Z0A-300
Required: 1
SPRING, CHOKE RETURN (NOT AVAILABLE)
N
$2.96
You save $0.52
004
Honda
CONTROL (2-LEVER)16500-Z0A-800
Required: 1
CONTROL ASSY. (2-LEVER) (NOT AVAILABLE)
N
$55.84
You save $9.86
005
Honda
SPRING, STARTER16534-Z0A-000
Required: 1
SPRING, STARTER (NOT AVAILABLE)
N
$2.21
You save $0.39
006
Honda
FORK, GOVERNOR16542-Z0A-000
Required: 1
FORK, GOVERNOR (NOT AVAILABLE)
N
$7.00
You save $1.24
007
Honda
ARM, GOVERNOR16550-Z0A-000
Required: 1
ARM, GOVERNOR (NOT AVAILABLE)
N
$30.77
You save $5.43
008
Honda
ROD, GOVERNOR16555-Z0A-000
Required: 1
ROD, GOVERNOR (NOT AVAILABLE)
N
$3.01
You save $0.53
009
Honda
SPRING, GOVERNOR16561-Z0A-000
Required: 1
SPRING, GOVERNOR
N
$4.32
You save $0.76
010
Honda
LINK, GOVERNOR16565-Z0A-000
Required: 1
LINK, GOVERNOR
N
$18.99
You save $3.35
011
Honda
ROD, GOVERNOR LINK16566-Z0A-000
Required: 1
ROD, GOVERNOR LINK (NOT AVAILABLE)
N
$5.35
You save $0.95
013
Honda
HOLDER, CABLE16576-891-000
Required: 1
HOLDER, CABLE
N
$4.20
You save $0.74
014
Honda
SPRING16584-883-300
Required: 1
SPRING, CONTROL ADJUSTING
N
$4.13
You save $0.73
015
Honda
BOLT, FLANGE (5X10)90002-892-000
Required: 2
BOLT, FLANGE (5X10)
N
$1.46
You save $0.26
016
Honda
BOLT (6MM) (CT200)90015-Z0A-000
Required: 1
BOLT, FLANGE (6MM) (CT200)
N
$2.21
You save $0.39
017
Honda
SCREW (5X25)90016-ZG9-N30
Required: 1
SCREW, RECESSED (5X25)
N
$1.96
You save $0.35
018
Honda
SCREW, PAN (5X16)93500-05016-0A
Required: 1
SCREW, PAN (5X16)
N
$0.94
You save $0.17
019
Honda
BOLT, FLANGE (6X10)95701-06010-00
Required: 1
BOLT, FLANGE (6X10)
N
$1.23
You save $0.31
020
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
N
$0.64
You save $0.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
