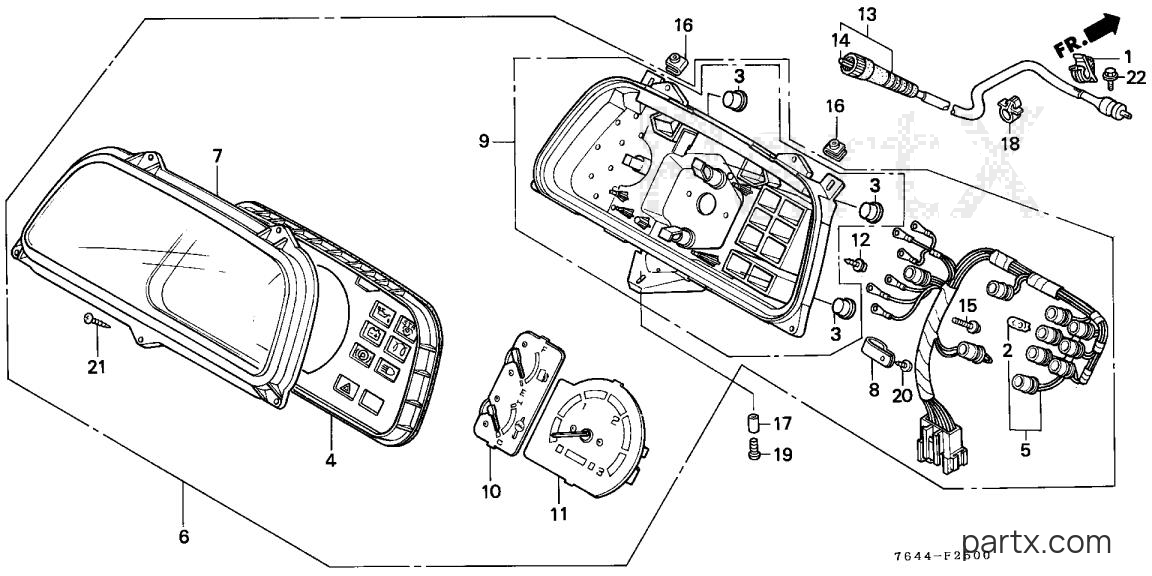

All Years Compact Tractor H - H6522 A2 COMBINATION METER diagram
001
Honda
CLIP B, HARNESS32172-GJ1-003
Required: 1
CLIP B, HARNESS
N
$4.06
You save $0.72
002
Honda
BULB (T10)34908-MB9-871
Required: 10
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)
N
$3.03
You save $0.53
003
Honda
CAP A37116-KG4-008
Required: 3
CAP A (NOT AVAILABLE)
N
$1.61
You save $0.28
004
Required: 1
PLATE, REFLECTING (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
SOCKET (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
METER ASSY., COMBINATION (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
LENS, METER (NOT AVAILABLE)
N
Price unavailable
$2.04
You save $0.36
009
Required: 1
CASE, METER (NOT AVAILABLE)
N
Price unavailable
010
Required: 1
METER, FUEL & TEMPERATURE (NOT AVAILABLE)
N
Price unavailable
011
Required: 1
TACHOMETER (NOT AVAILABLE)
N
Price unavailable
012
Required: 2
SCREW, FLANGE (3X6) (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
CABLE ASSY., TACHOMETER (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
CABLE (INNER) (NOT AVAILABLE)
N
Price unavailable
015
Honda
SCREW-WASHER (3X22)37305-KE5-008
Required: 6
SCREW-WASHER (3X22)
N
$2.99
You save $0.53
016
Honda
NUT, FLOATING (5MM)90306-SA0-000
Required: 2
NUT, FLOATING (5MM)
N
$9.91
You save $1.75
017
Honda
COLLAR (5X3.5)90513-HA5-000
Required: 3
COLLAR (5X3.5)
N
$3.54
You save $0.62
018
Honda
CLIP, TUBE (12MM)90658-759-003
Required: 1
CLIP, TUBE (12MM) (NOT AVAILABLE)
N
$4.68
You save $0.83
019
Honda
SCREW, PAN (5X14)93500-05014-0H
Required: 3
SCREW, PAN (5X14)
N
$0.85
You save $0.15
020
Honda
SCREW, TAP (4X12)93903-24320
Required: 1
SCREW, TAPPING (4X12)
N
$0.94
You save $0.17
021
Honda
SCREW, TAP (4X20)93903-24520
Required: 5
SCREW, TAPPING (4X20)
N
$0.80
You save $0.14
022
Honda
BOLT, FLANGE (6X25)95701-06025-08
Required: 1
BOLT, FLANGE (6X25)
N
$1.87
You save $0.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
