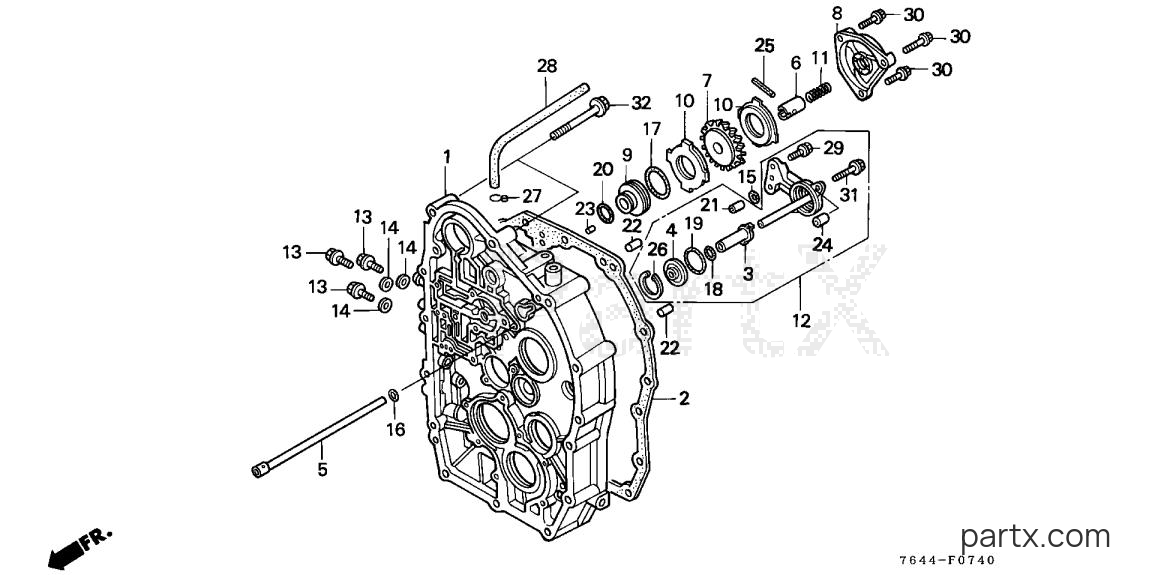

All Years Compact Tractor H - H6522 A2 TRANSMISSION CONTROL CASE diagram
001
Required: 1
CASE, CONTROL (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
GASKET, CONTROL CASE (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
PIPE A, FEED (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
GUIDE A, FEED PIPE (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
PIPE, OIL SUPPLY (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
SHAFT, NEUTRAL BRAKE (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
GEAR, NEUTRAL BRAKE (19T) (NOT AVAILABLE)
N
Price unavailable
008
Required: 1
COVER, NEUTRAL BRAKE (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
PISTON, NEUTRAL BRAKE (NOT AVAILABLE)
N
Price unavailable
010
Required: 2
PLATE, NEUTRAL BRAKE (NOT AVAILABLE)
N
Price unavailable
011
Required: 1
SPRING, NEUTRAL BRAKE (NOT AVAILABLE)
N
Price unavailable
012
Required: 1
HOLDER C ASSY., FEED PIPE (NOT AVAILABLE)
N
Price unavailable
013
Honda
BOLT, SEALING (8MM)90024-612-000
Required: 3
BOLT, SEALING (8MM)
N
$5.92
You save $1.04
014
Honda
GASKET (8MM)90471-580-000
Required: 3
GASKET (8MM)
N
$3.47
You save $0.61
015
Honda
O-RING (7.5X1.5)91302-HB3-004
Required: 2
O-RING (7.5X1.5)
N
$2.26
You save $0.40
016
Honda
O-RING (5.8X1.9)91305-323-000
Required: 1
O-RING (5.8X1.9)
N
$3.18
You save $0.56
017
Required: 1
O-RING (38.5X1.8) (NOT AVAILABLE)
N
Price unavailable
018
Honda
O-RING (8.5X1.9)91314-PC9-004
Required: 1
O-RING (8.5X1.9) (NOK)
N
$4.01
You save $0.71
019
Honda
O-RING (31X1.7)91316-PF4-003
Required: 1
O-RING (31X1.7) (ARAI)
N
$4.32
You save $0.76
020
Required: 1
O-RING (26X1.5) (NOK) (NOT AVAILABLE)
N
Price unavailable
021
Honda
PIN, DOWEL (6X10)94301-06100
Required: 2
PIN, DOWEL (6X10)
N
$2.33
You save $0.41
022
Honda
PIN B, DOWEL (8X14)94302-08140
Required: 2
PIN B, DOWEL (8X14)
N
$2.33
You save $0.41
023
Honda
PIN C, DOWEL (4X6.5)94303-04065
Required: 1
PIN C, DOWEL (4X6.5)
N
$2.33
You save $0.41
024
Honda
PIN, DOWEL (8X14)94301-08140
Required: 2
PIN, DOWEL (8X14)
N
$2.33
You save $0.41
025
Honda
PIN, SPRING (3X32)94305-30322
Required: 1
PIN, SPRING (3X32)
N
$1.78
You save $0.32
026
Honda
CIRCLIP (32MM)94520-32000
Required: 1
CIRCLIP (INNER) (32MM)
N
$1.84
You save $0.32
027
Honda
CLIP, TUBE (B10)95002-02100
Required: 1
CLIP, TUBE (B10)
N
$1.97
You save $0.35
028
Honda
BULK HOSE (5.5X3000)95005-55003-20M
Required: 1
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X300)
N
$40.92
You save $7.22
029
Honda
BOLT, FLANGE (6X18)95701-06018-08
Required: 1
BOLT, FLANGE (6X18)
N
$1.68
You save $0.30
030
Honda
BOLT, FLANGE (6X22)95701-06022-08
Required: 3
BOLT, FLANGE (6X22)
N
$1.87
You save $0.33
031
Honda
BOLT, FLANGE (6X28)95701-06028-08
Required: 2
BOLT, FLANGE (6X28)
N
$2.26
You save $0.40
032
Honda
BOLT, FLANGE (10X50)95701-10050-08
Required: 2
BOLT, FLANGE (10X50)
N
$2.69
You save $0.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
