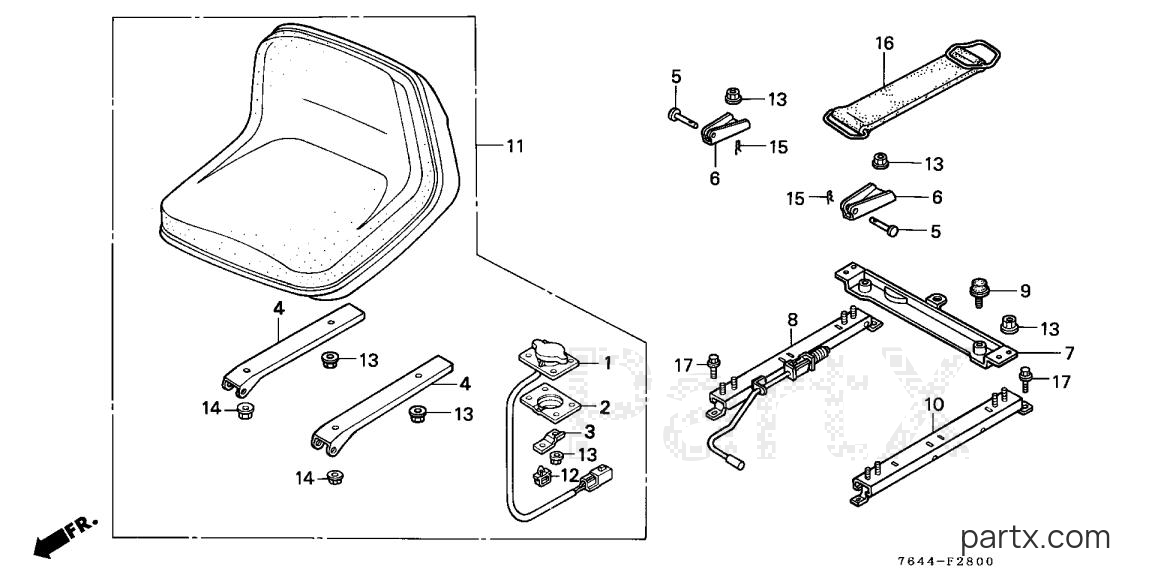

All Years Compact Tractor H - H6522 A2H SEAT diagram
001
Required: 1
SWITCH, SEAT (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
COVER, SEAT SWITCH (NOT AVAILABLE)
N
Price unavailable
003
Honda
BASE, CLIP35806-758-000
Required: 1
BASE, CLIP (NOT AVAILABLE)
N
$5.00
You save $0.88
004
Honda
BASE, SEAT (UPPER)77223-750-003
Required: 2
BASE, SEAT (UPPER)
N
$52.75
You save $9.31
005
Honda
PIN, SEAT BASE (8MM)77226-750-003
Required: 2
PIN, SEAT BASE (8MM)
N
$5.02
You save $0.88
006
Required: 2
HINGE, SEAT (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
CROSSMEMBER, SLIDE ADJUSTER (NOT AVAILABLE)
N
Price unavailable
008
Required: 1
ADJUSTER, R. SLIDE (NOT AVAILABLE)
N
Price unavailable
009
Required: 2
RUBBER, SEAT (NOT AVAILABLE)
N
Price unavailable
010
Required: 1
ADJUSTER, L. SLIDE (NOT AVAILABLE)
N
Price unavailable
011
Required: 1
SEAT ASSY. (NOT AVAILABLE)
N
Price unavailable
012
Honda
CLIP, HARN (6MM)90654-SA4-003
Required: 1
CLIP, WIRE HARNESS (6MM) (WHITE)
N
$0.24
You save $0.04
-50%
013
Honda
NUT, FLANGE (6MM)94050-06080
Required: 14
NUT, FLANGE (6MM)
N
In stock
Only 5 remaining
$0.41
You save $0.41
014
Honda
NUT-WASHER (6MM)94071-06080
Required: 2
NUT-WASHER (6MM)
N
$1.51
You save $0.27
015
Honda
PIN, LOCK (8MM)94251-08000
Required: 2
PIN, LOCK (8MM)
N
$1.27
You save $0.23
016
Required: 1
BAND C, BATTERY (NOT AVAILABLE)
N
Price unavailable
017
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 4
BOLT, FLANGE (6X12)
N
$1.73
You save $0.31
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
