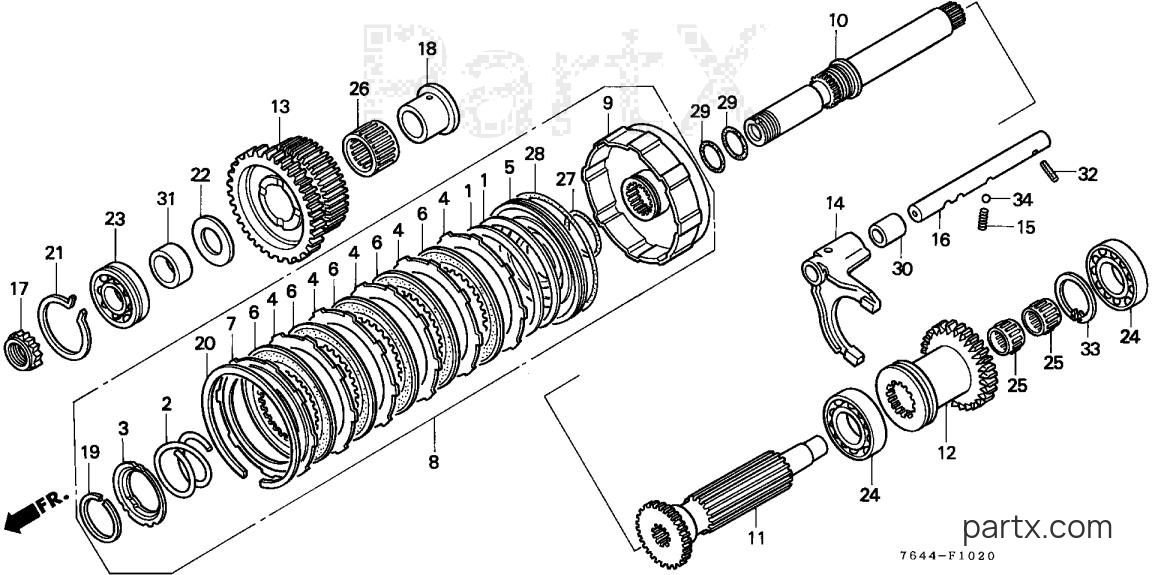

All Years Compact Tractor H - H6522 A4 P.T.O. COUNTERSHAFT diagram
001
Honda
SPRING, CLUTCH DISK22537-759-610
Required: 2
SPRING, CLUTCH DISK
N
$20.47
You save $3.61
002
Required: 1
SPRING, CLUTCH RETURN (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
SPRING, CLUTCH RETURN (NOT AVAILABLE)
N
Price unavailable
003
Honda
SEAT, CLUTCH SPRING22542-PA9-000
Required: 1
SEAT, CLUTCH SPRING (SOURCE: VINTAGE PARTS INC.)
N
$6.78
You save $1.20
004
Required: 5
PLATE, CLUTCH (106MM) (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
PISTON, CLUTCH (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
PISTON, CLUTCH (NOT AVAILABLE)
N
Price unavailable
006
Required: 5
DISK, CLUTCH (NOT AVAILABLE)
N
Price unavailable
007
Honda
PLATE (1) (2.3MM)22551-PA9-010
Required: 1
PLATE, CLUTCH END (1) (2.3MM)
N
$30.35
You save $5.36
007
Honda
PLATE (2) (2.6MM)22552-PA9-010
Required: 1
PLATE, CLUTCH END (2) (2.6MM)
N
$30.35
You save $5.36
007
Honda
PLATE (3) (2.9MM)22553-PA9-010
Required: 1
PLATE, CLUTCH END (3) (2.9MM)
N
$29.84
You save $5.27
007
Honda
PLATE (4) (3.2MM)22554-PA9-010
Required: 1
PLATE, CLUTCH END (4) (3.2MM)
N
$29.84
You save $5.27
007
Honda
PLATE (5) (3.5MM)22555-PA9-010
Required: 1
PLATE, CLUTCH END (5) (3.5MM)
N
$30.35
You save $5.36
007
Honda
PLATE (11) (2.15MM)22561-PA9-010
Required: 1
PLATE, CLUTCH END (11) (2.15MM)
N
$30.35
You save $5.36
007
Honda
PLATE (12) (2.45MM)22562-PA9-010
Required: 1
PLATE, CLUTCH END (12) (2.45MM)
N
$30.35
You save $5.36
007
Honda
PLATE (13) (2.75MM)22563-PA9-010
Required: 1
PLATE, CLUTCH END (13) (2.75MM)
N
$30.35
You save $5.36
007
Honda
PLATE (14) (3.05MM)22564-PA9-010
Required: 1
PLATE, CLUTCH END (14) (3.05MM)
N
$30.35
You save $5.36
007
Honda
PLATE (15) (3.35MM)22565-PA9-010
Required: 1
PLATE, CLUTCH END (15) (3.35MM)
N
$29.84
You save $5.27
007
Honda
PLATE (16) (3.65MM)22566-PA9-010
Required: 1
PLATE, CLUTCH END (16) (3.65MM)
N
$30.35
You save $5.36
008
Required: 1
CLUTCH ASSY., P.T.O. (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
GUIDE, P.T.O. CLUTCH (NOT AVAILABLE)
N
Price unavailable
010
Required: 1
COUNTERSHAFT A, P.T.O. (NOT AVAILABLE)
N
Price unavailable
011
Required: 1
COUNTERSHAFT, P.T.O. (C) (NOT AVAILABLE)
N
Price unavailable
012
Honda
GEAR (28T)23551-764-640
Required: 1
GEAR, MIDDLE P.T.O. DRIVE (28T)
N
$378.76
You save $66.84
013
Required: 1
GEAR, P.T.O. DRIVEN (38T-38T) (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
FORK, P.T.O. SHIFT (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
SPRING, BALL SETTING (NOT AVAILABLE)
N
Price unavailable
016
Required: 1
SHAFT, P.T.O. SHIFT (NOT AVAILABLE)
N
Price unavailable
017
Honda
NUT, LOCK (25MM)44332-752-000
Required: 1
NUT, LOCK (25MM) (NOT AVAILABLE)
N
$12.39
You save $2.19
018
Required: 1
COLLAR, DISTANCE (25X32X30) (NOT AVAILABLE)
N
Price unavailable
019
Honda
CIRCLIP (40MM)90603-PA9-000
Required: 1
CIRCLIP (OUTER) (40MM)
N
$6.09
You save $1.07
020
Honda
RING, SNAP (114X1.8)90605-PA9-000
Required: 1
RING, SNAP (114X1.8)
N
$17.75
You save $3.13
021
Required: 1
RING, SNAP (52MM) (NOT AVAILABLE)
N
Price unavailable
022
Required: 1
WASHER, THRUST (25X45X4.0) (NOT AVAILABLE)
N
Price unavailable
023
Honda
BEARING (6205C)91001-KT7-003
Required: 1
BEARING, BALL (6205C)
N
$40.19
You save $7.09
024
Honda
BEARING (60/32)91003-733-701
Required: 2
BEARING, RADIAL BALL (60/32)
N
$22.75
You save $4.01
025
Required: 2
BEARING, NEEDLE (17X21X10) (NOT AVAILABLE)
N
Price unavailable
026
Required: 1
BEARING, NEEDLE (32X37X27) (KOYO)
N
Price unavailable
026
Required: 1
BEARING, NEEDLE (32X37X27) (THOMPSON)
N
Price unavailable
026
Required: 1
BEARING, NEEDLE (32X37X27) (NTN) (NOT AVAILABLE)
N
Price unavailable
027
Honda
O-RING (39.8X2.2)91302-PA9-003
Required: 1
O-RING (39.8X2.2) (ARAI)
N
$5.24
You save $0.92
028
Honda
O-RING (100X2.2)91303-PA9-004
Required: 1
O-RING (100X2.2) (NOK)
N
$10.29
You save $1.81
029
Honda
O-RING (31.2X1.9)91307-PA9-003
Required: 2
O-RING (31.2X1.9) (ARAI)
N
$4.59
You save $0.81
030
Required: 1
COLLAR (14.5X19.1X21.8) (NOT AVAILABLE)
N
Price unavailable
031
Required: 1
COLLAR, DISTANCE (25MM) (NOT AVAILABLE)
N
Price unavailable
032
Honda
PIN, SPRING (3X18)94305-30182
Required: 1
PIN, SPRING (3X18)
N
$1.31
You save $0.23
033
Honda
CIRCLIP (58MM)94520-58000
Required: 1
CIRCLIP, INNER (58MM)
N
$3.89
You save $0.69
034
Honda
BALL (#10) (5/16)96211-10000
Required: 1
BALL, STEEL (#10) (5/16)
N
$1.38
You save $0.24
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
