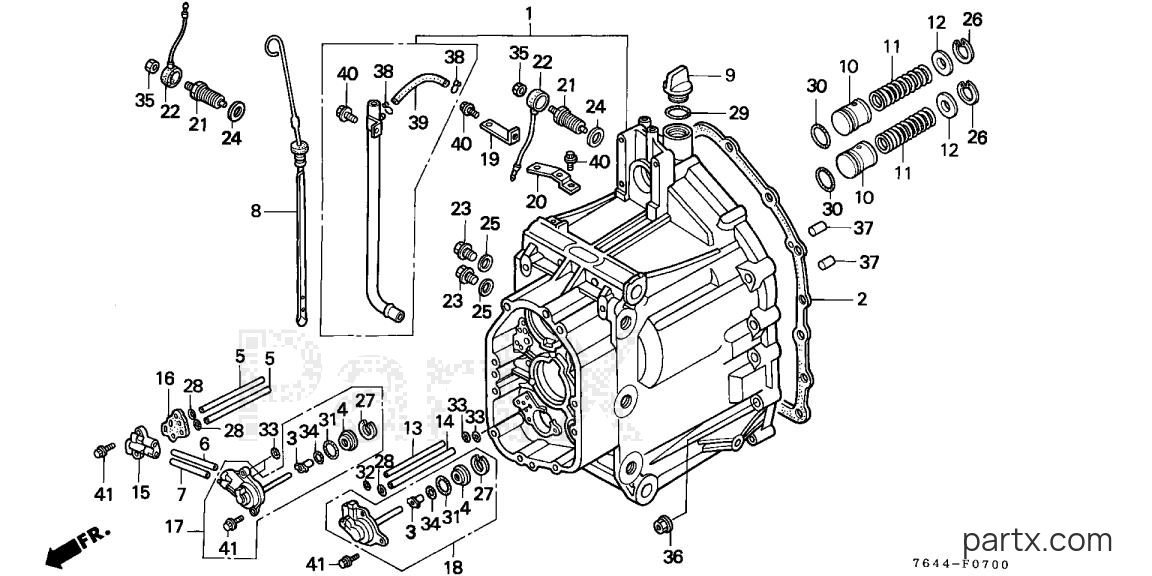

All Years Compact Tractor H - H6522 A2 FRONT TRANSMISSION CASE diagram
001
Required: 1
CASE, FR. TRANSMISSION (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
GASKET, FR. CASE (NOT AVAILABLE)
N
Price unavailable
003
Required: 2
PIPE A, FEED (NOT AVAILABLE)
N
Price unavailable
004
Honda
GUIDE A, FEED PIPE22713-PC9-010
Required: 2
GUIDE A, FEED PIPE
N
$9.89
You save $1.75
005
Required: 2
PIPE, CLUTCH SUPPLY (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
PIPE, SECOND CLUTCH (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
PIPE, THIRD CLUTCH (NOT AVAILABLE)
N
Price unavailable
008
Honda
GAUGE25610-759-000
Required: 1
GAUGE (NOT AVAILABLE)
N
$19.92
You save $3.52
009
Required: 1
CAP (ATF) (NOT AVAILABLE)
N
Price unavailable
010
Required: 2
PISTON, LOW ACCUMULATOR (NOT AVAILABLE)
N
Price unavailable
011
Required: 2
SPRING, ACCUMULATOR (NOT AVAILABLE)
N
Price unavailable
012
Required: 2
COVER, ACCUMULATOR (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
PIPE, P.T.O. SUPPLY (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
PIPE, P.T.O. CLUTCH (NOT AVAILABLE)
N
Price unavailable
015
Honda
HOLDER, FEED PIPE27911-764-640
Required: 1
HOLDER, FEED PIPE (A)
N
$76.14
You save $13.44
016
Required: 1
GASKET, FEED PIPE HOLDER (NOT AVAILABLE)
N
Price unavailable
017
Required: 1
HOLDER ASSY. B, FEED PIPE (NOT AVAILABLE)
N
Price unavailable
018
Honda
HOLDER, FEED PIPE27940-764-640
Required: 1
HOLDER ASSY., FEED PIPE (D)
N
$239.28
You save $42.22
019
Honda
BRACKET, HARN32111-759-000
Required: 1
BRACKET, WIRE HARNESS
N
$8.45
You save $1.49
020
Honda
BRACKET32114-759-000
Required: 1
BRACKET, WIRE HARNESS CLIP (C)
N
$11.98
You save $2.12
021
Required: 2
SWITCH, REVERSE (TOYO) (NOT AVAILABLE)
N
Price unavailable
022
Required: 2
WIRE, NEUTRAL SWITCH (NOT AVAILABLE)
N
Price unavailable
023
Honda
BOLT, SEALING (8MM)90024-612-000
Required: 2
BOLT, SEALING (8MM)
N
$5.92
You save $1.04
024
Honda
WASHER90443-KR0-000
Required: 2
WASHER, NEUTRAL SWITCH
N
$1.39
You save $0.25
025
Honda
GASKET (8MM)90471-580-000
Required: 2
GASKET (8MM)
N
$3.47
You save $0.61
026
Required: 2
CIRCLIP (INNER) (30MM) (NOT AVAILABLE)
N
Price unavailable
027
Required: 2
CIRCLIP (INNER) (38MM) (NOT AVAILABLE)
N
Price unavailable
028
Honda
O-RING (7.7X2.3)91301-PC9-003
Required: 3
O-RING (7.7X2.3) (ARAI)
N
$3.47
You save $0.61
029
Honda
O-RING (21.5X3.2)91307-425-003
Required: 1
O-RING (21.5X3.2)
N
$2.91
You save $0.51
030
Honda
O-RING (22.5X2.7)91302-PC9-003
Required: 2
O-RING (22.5X2.7)
N
$4.56
You save $0.80
031
Honda
O-RING (34X1.9)91305-PC9-003
Required: 2
O-RING (34X1.9) (ARAI)
N
$4.62
You save $0.82
032
Honda
O-RING (5.7X2.2)91308-MB0-003
Required: 1
O-RING (5.7X2.2) (ARAI)
N
$2.41
You save $0.43
033
Honda
O-RING (8.2X1.5)91308-MC7-000
Required: 4
O-RING (8.2X1.5)
N
$2.40
You save $0.42
034
Honda
O-RING (8.5X1.9)91314-PC9-004
Required: 2
O-RING (8.5X1.9) (NOK)
N
$4.01
You save $0.71
035
Honda
NUT, HEX. (4MM)94001-04080-0S
Required: 2
NUT, HEX. (4MM)
N
$1.07
You save $0.19
036
Honda
NUT, FLANGE (10MM)94050-10080
Required: 11
NUT, FLANGE (10MM)
N
$4.03
You save $0.71
037
Honda
PIN B, DOWEL (8X14)94302-08140
Required: 2
PIN B, DOWEL (8X14)
N
$2.33
You save $0.41
038
Honda
CLIP, TUBE (B10)95002-02100
Required: 2
CLIP, TUBE (B10)
N
$1.97
You save $0.35
039
Honda
BULK HOSE (5.5X3000)95005-55003-20M
Required: 1
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X125)
N
$40.92
You save $7.22
040
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 3
BOLT, FLANGE (6X12)
N
$1.73
You save $0.31
041
Honda
BOLT, FLANGE (6X20)95701-06020-08
Required: 8
BOLT, FLANGE (6X20)
N
$0.41
You save $0.07
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
