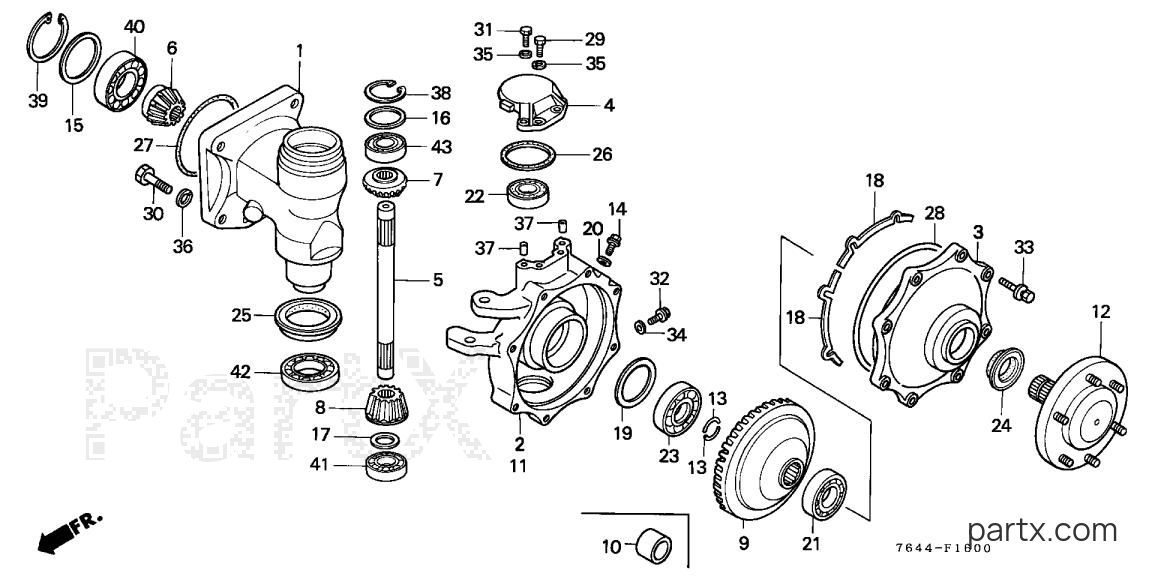

All Years Compact Tractor H - H6522 A2 FRONT FINAL REDUCTION CASE diagram
001
Required: 2
CASE A, FINAL REDUCTION (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
CASE B, R. FINAL REDUCTION (NOT AVAILABLE)
N
Price unavailable
003
Required: 2
COVER, FINAL REDUCTION (NOT AVAILABLE)
N
Price unavailable
004
Required: 2
PIVOT, FINAL REDUCTION (UPPER) (NOT AVAILABLE)
N
Price unavailable
010
Required: 2
COLLAR, FR. AXLE SHAFT (NOT AVAILABLE)
N
Price unavailable
011
Required: 1
CASE B, L. FINAL REDUCTION (NOT AVAILABLE)
N
Price unavailable
012
Required: 2
SHAFT, FR. AXLE (NOT AVAILABLE)
N
Price unavailable
013
Required: 4
KEY, AXLE SHAFT LOCK (NOT AVAILABLE)
N
Price unavailable
014
Honda
BOLT, DRAIN PLUG90131-ZE1-000
Required: 2
BOLT, DRAIN PLUG
N
$2.52
You save $0.44
020
Honda
WASHER (10.2MM)90601-ZE1-000
Required: 2
WASHER, DRAIN PLUG (10.2MM)
N
$1.06
You save $0.26
021
Honda
BEARING (6207)91005-PL0-008
Required: 2
BEARING, SEALED BALL (6207) (NTN)
N
$68.99
You save $12.17
022
Honda
BEARING (60/28)91052-759-003
Required: 2
BEARING, RADIAL BALL (60/28)
N
$24.40
You save $4.30
022
Required: 2
BEARING, RADIAL BALL (60/28) (NOT AVAILABLE)
N
Price unavailable
023
Required: 2
BEARING, RADIAL BALL (62/32SP) (NOT AVAILABLE)
N
Price unavailable
024
Required: 2
SEAL, WATER (42X62X13.5) (NOT AVAILABLE)
N
Price unavailable
025
Required: 2
SEAL, WATER (50X70X20) (NOT AVAILABLE)
N
Price unavailable
026
Required: 2
OIL SEAL (60X70X5) (NOT AVAILABLE)
N
Price unavailable
027
Required: 2
O-RING (85.4X3.1) (NOT AVAILABLE)
N
Price unavailable
028
Honda
O-RING (169.4X3.1)91394-759-003
Required: 2
O-RING (169.4X3.1) (NOK) (NOT AVAILABLE)
N
$10.18
You save $1.80
029
Honda
BOLT, HEX. (10X25)92101-10025-0G
Required: 4
BOLT, HEX. (10X25) (NOT AVAILABLE)
N
$1.77
You save $0.31
030
Honda
BOLT, HEX. (12X40)92101-12040-0G
Required: 12
BOLT, HEX. (12X40) (NOT AVAILABLE)
N
$1.96
You save $0.35
031
Honda
BOLT, HEX. (10X40)92201-10040-0G
Required: 4
BOLT, HEX. (10X40) (NOT AVAILABLE)
N
$1.77
You save $0.31
032
Honda
BOLT, DRAIN (12MM)92800-12000
Required: 2
BOLT, DRAIN PLUG (12MM)
N
$4.01
You save $0.71
033
Honda
BOLT-WASHER (8X32)93402-08032-08
Required: 16
BOLT-WASHER (8X32) (NOT AVAILABLE)
N
$1.78
You save $0.32
034
Honda
WASHER, DRAIN (12MM)94109-12000
Required: 2
WASHER, DRAIN PLUG (12MM)
N
In stock
5+ in stock
$1.27
You save $0.23
035
Required: 8
WASHER, SPRING (10MM) (NA USE ALT: 94111-10400)
N
Price unavailable
036
Honda
WASHER (12MM)94111-12700
Required: 12
WASHER, SPRING (12MM)
N
$1.05
You save $0.19
037
Honda
PIN A, DOWEL (12X16)94301-12160
Required: 4
PIN A, DOWEL (12X16)
N
$2.55
You save $0.45
038
Honda
CIRCLIP (52MM)94520-52000
Required: 2
CIRCLIP (INNER) (52MM)
N
$3.25
You save $0.57
042
Honda
BEARING (6008UU)96150-60080-10
Required: 2
BEARING, RADIAL BALL (6008UU)
N
$33.78
You save $5.96
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
