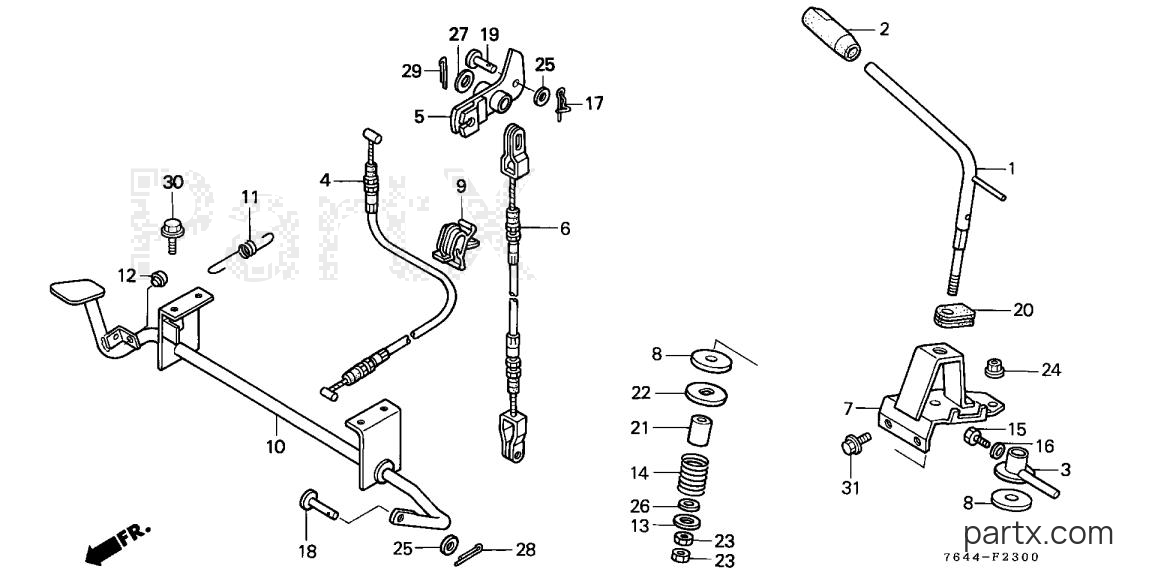

All Years Compact Tractor H - H6522 A2 ACCELERATOR LEVER diagram
001
Required: 1
LEVER, ACCELERATOR (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
GRIP, ACCELERATOR LEVER (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
ARM, ACCELERATOR LEVER (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
CABLE, ACCELERATOR (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
HOLDER, ACCELERATOR WIRE (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
CABLE, FOOT ACCELERATOR (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
BRACKET, ACCELERATOR (NOT AVAILABLE)
N
Price unavailable
008
Required: 2
WASHER, LINING (NOT AVAILABLE)
N
Price unavailable
009
Honda
CLIP, WIRE HARNESS32171-GJ1-003
Required: 1
CLIP, WIRE HARNESS
N
$4.32
You save $0.76
010
Required: 1
PEDAL, ACCELERATOR (NOT AVAILABLE)
N
Price unavailable
011
Required: 1
SPRING, ACCELERATOR PEDAL (NOT AVAILABLE)
N
Price unavailable
012
Honda
RUBBER B, STOPPER50354-428-000
Required: 1
RUBBER B, STOPPER
N
$2.99
You save $0.53
013
Honda
PLATE53101-GN5-900
Required: 1
PLATE, HANDLE SETTING
N
$4.66
You save $0.82
014
Required: 1
SPRING, SPLASH GUARD ADJUSTING(UPPER) (NOT AVAILABLE)
N
Price unavailable
015
Honda
BOLT, SPECIAL (6X16)90154-759-000
Required: 1
BOLT, SPECIAL (6X16)
N
$2.28
You save $0.40
016
Honda
WASHER (6MM)90411-744-000
Required: 1
WASHER, CONICAL SPRING (6MM)
N
$4.49
You save $0.79
017
Honda
PIN, SNAP (6MM)90705-SD2-931
Required: 1
PIN, SNAP (6MM)
N
$4.30
You save $0.76
018
Honda
PIN90712-752-000
Required: 1
PIN, P.T.O. CHANGE ROD
N
$2.82
You save $0.50
019
Honda
PIN, CLUTCH JOINT90755-751-010
Required: 1
PIN, CLUTCH JOINT
N
$3.77
You save $0.67
020
Required: 1
GROMMET, THROTTLE LEVER (NOT AVAILABLE)
N
Price unavailable
021
Required: 1
COLLAR, ACCELERATOR (NOT AVAILABLE)
N
Price unavailable
022
Honda
WASHER91861-759-000
Required: 1
WASHER, SPRING SETTING (NOT AVAILABLE)
N
$9.33
You save $1.65
023
Honda
NUT, HEX. (8MM)94001-08000-0S
Required: 2
NUT, HEX. (8MM)
N
$1.36
You save $0.24
-50%
024
Honda
NUT, FLANGE (6MM)94050-06080
Required: 1
NUT, FLANGE (6MM)
N
In stock
Only 5 remaining
$0.41
You save $0.41
025
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 2
WASHER, PLAIN (6MM)
N
$0.64
You save $0.16
026
Honda
WASHER, PLAIN (8MM)94101-08800
WASHER, PLAIN (8MM)
N
$2.01
You save $0.35
027
Honda
WASHER, PLAIN (10MM)94102-10800
Required: 1
WASHER, PLAIN (10MM)
N
$3.69
You save $0.65
028
Honda
PIN, COTTER (1.6X25)94201-16250
Required: 1
PIN, COTTER (1.6X25)
N
$1.07
You save $0.19
029
Honda
PIN, SPLIT (2.5X30)94201-25300
Required: 1
PIN, SPLIT (2.5X30)
N
$1.07
You save $0.19
030
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 4
BOLT, FLANGE (6X12)
N
$1.73
You save $0.31
031
Honda
BOLT, FLANGE (6X14)95701-06014-08
Required: 2
BOLT, FLANGE (6X14)
N
$1.68
You save $0.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
