Owner's Manual

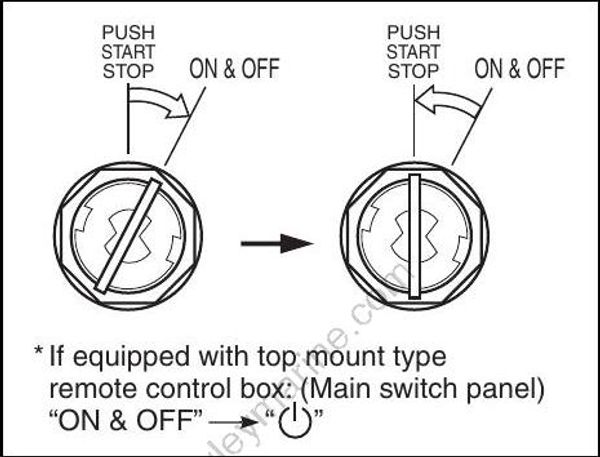

- Turn the emergency key to the “ON & OFF” position and then release it to the “PUSH START/STOP” position to turn the Keyless Start System to OFF state. And then, pull out the emergency key from the key cylinder.
The passcode authentication state is maintained for 15 seconds after turning the emergency key to the “PUSH START/STOP” position. In this state, the engine can be started by turning the emergency key to the left and pressing the main switch. To restart the engine when the 15-second period has elapsed after turning the emergency key to the “PUSH START/STOP” position, repeat the emergency key operation from the beginning.
SHIFTING AND SPEED CONTROL
Severe engine damage may occur if (a) engine speed is not allowed to return to idle and boat speed is not reduced when shifting from “FORWARD” to “REVERSE” or from “REVERSE” to “FORWARD”, or (b) care is not taken when operating the boat in reverse.
Always allow the engine speed to return to idle before shifting. Exercise caution and use minimal speed when operating the boat in reverse. Be sure the handle/ shift lever is in the desired position before accelerating.
If you shift gears when the engine is not running, the shifting mechanism can be damaged.
Avoid shifting gears when the engine is not running.
Shifting

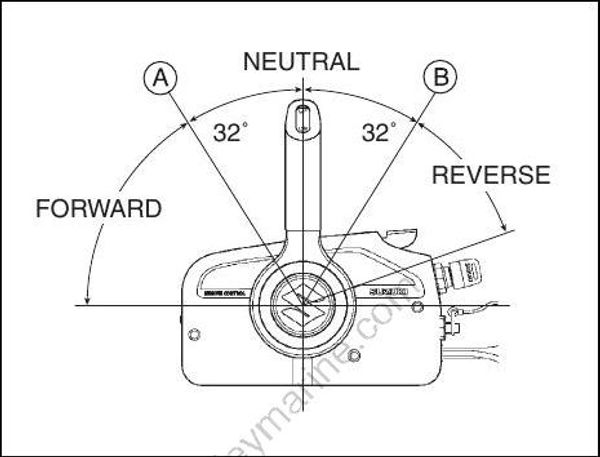

To shift into “FORWARD”, squeeze the lock-out lever on the control handle and move the control handle forward to approximate position A, as shown in the illustration.
To shift into “REVERSE”, squeeze the lock-out lever on the control handle and move the control handle rearward to approximate position B, as shown in the illustration.

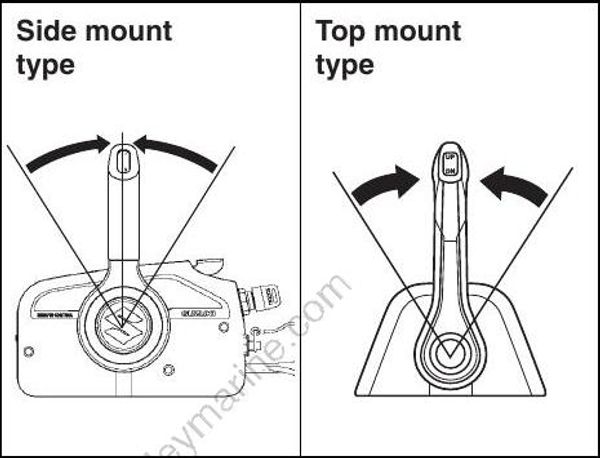

A detent or notch is present on all Suzuki control boxes to provide a “feel” for positions A, B, and neutral. Always shift quickly and firmly from neutral to position A or B to prevent abnormal wear on the gear and clutch engagement sur faces.

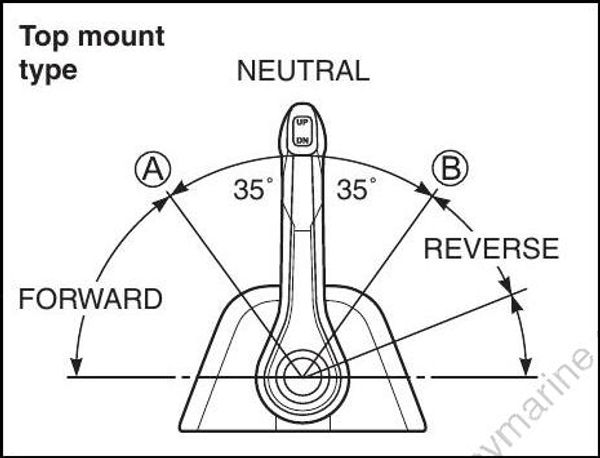

Top mount type
Not equipped with a lock-out lever. Exercise care when selecting neutral position.
Speed control
To increase speed after you have shifted into gear, continue moving the control handle forward or rearward.
Since the same handle is used for shifting and speed control it is possible to move the handle past the detent and engage the throttle. This can cause the boat to move suddenly resulting in personal injury or property damage. You must be careful not to move the control handle too far forward or rearward when shifting.
STOPPING THE ENGINE
When it is necessary to stop the engine in an emergency, pull the emergency stop switch lock plate out of the emergency stop switch by pulling the emergency stop switch cord.
If equipped with Keyless Start System:
To stop the engine:
- Shift into “NEUTRAL”.
After operating at full throttle, cool off the engine a few minutes by allowing it to idle or troll at low speed.

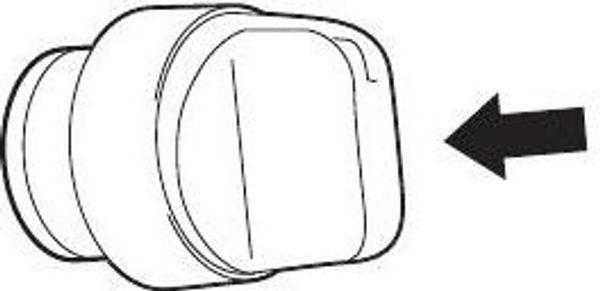

Push the main switch to stop the engine.
