OIL CHANGE REMINDER SYSTEM
This system informs the operator of the time for replacing engine oil on the basis of the maintenance schedule.
The system is designed to register the total operating hours of the outboard motor and function its operation when the preprogrammed hours have reached.
(Refer to the INSPECTION AND MAINTE NANCE section and the last page.)
SYSTEM ACTIVATION
TILLER HANDLE MODEL
When the total operating hours have reached the preprogrammed hours, the buzzer will be gin a series of double beeps (3 times). This in dication will repeat until you cancel the system activation.
REMOTE CONTROL MODEL
When the total operating hours have reached the preprogrammed hours, the OIL lamp will flash. If the engine is not running, the buzzer will begin a series of double beeps additionally. This indication will repeat until you cancel the system activation.
CANCELLATION
Turn the ignition key to the “ON” position.

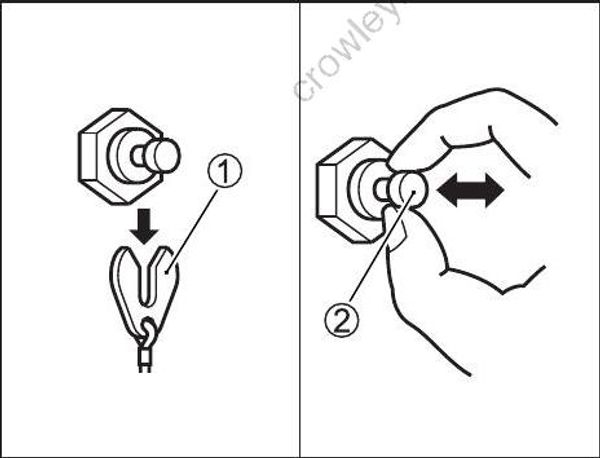

Pull out the emergency stop switch plate (1).
Pull up the emergency stop switch knob (2) three times in 10 seconds. A short beep will be heard if the cancellation is successfully finished.
Turn the ignition key to the “OFF” position.
Set the plate (1) in the original position.
• Canceling of the system activation is possible regardless of whether or not the engine oil has been replaced. Once the system has operated, however, Suzuki strongly recommends that the engine oil be replaced be fore canceling the system activation.
• Even if the engine oil has been replaced with the system not operating, it is still necessary to perform the cancellation.
