TROUBLESHOOTING
This troubleshooting guide is provided to help you find the cause of common complaints.
Failure to troubleshoot a problem correctly can damage your outboard motor. Improper repairs or adjustments may damage the outboard motor instead or fixing it. Such damage may not be covered under warranty.
If you are not sure about the proper action to correct a problem, consult your Suzuki marine dealer.
Recoil starter/starter motor will not operate:
- Shift lever is not in NEUTRAL.
- Fuse is blown out. (Electric start model)
Engine will not start (hard to start):
- Emergency stop switch lock plate is not in position.
- Fuel tank is empty.
- Fuel hose is not properly connected to engine.
- Fuel hose is kinked or pinched.
- Spark plug is fouled.
Engine idles unstably or stalls:
- Fuel hose is kinked or pinched.
- Spark plug is fouled.
Engine speed will not increase (Engine power is low):
- Engine is overloaded.
- Caution/Diagnosis system is activated.
- Propeller is damaged.
- Propeller is not properly matched to loads.
Engine vibrates excessively:
- Engine mounting bolts or clamp screws are loose.
- Foreign object (seaweed etc.) is tangled on propeller.
- Propeller is damaged.
Engine overheats:
- Cooling water intake(s) are blocked.
- Engine is overloaded.
- Propeller is not properly matched to loads.
FUSE
Electric starter model
- Remove the motor cover.

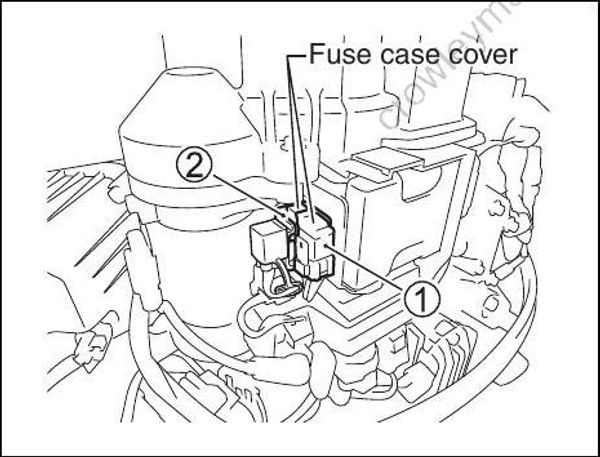

- Remove the fuse case cover and pull off fuse.
(1) Main fuse: 30A (white fuse case): All electric starter model
(2) ECM fuse: 10A (yellow fuse case): DF25AT/25AR/ 30AT

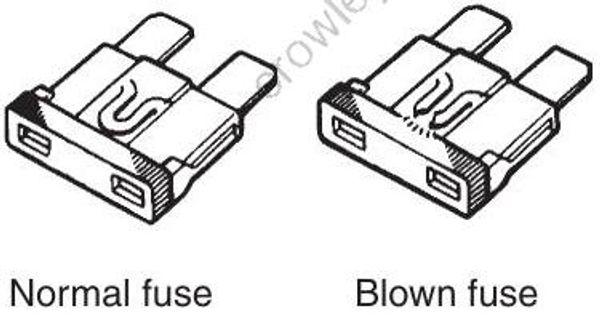

- Inspect the fuse and replace with new fuse if needed.
If a fuse is blown, try to determine the root cause and correct it.
If the cause is not corrected, the fuse may be blown again.
If you replace a blown fuse with a fuse having a different amperage rating or with a substitute such as aluminum foil or a wire, extensive electrical system damage and a fire may result.
Always replace a blown fuse with a fuse of the same type and rating.
If a new fuse blows in a short time after installation, you may have a major electrical system problem.
Consult your SUZUKI marine dealer.

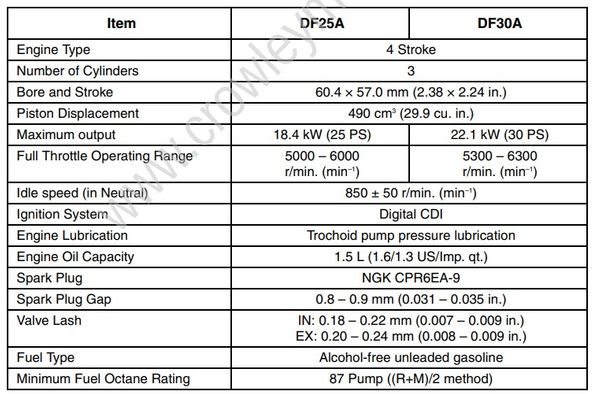

SPECIFICATIONS
Power rated in accordance with NMMA procedure.
