Owner's Manual DF25A, DF30A Oil Change Reminder System

Added Jul 24, 2020Updated Jun 4, 2021
Owner's Manual DF25A, DF30A Oil Change Reminder System
Suzuki Marine

Steps:

Step 1: OIL CHANGE REMINDER SYSTEM

This system informs the operator of the time for replacing engine oil on the basis of the maintenance schedule.

The system is designed to register the total operating hours of the outboard motor and function its operation when the preprogrammed hours have reached.

(Refer to the INSPECTION AND MAINTE NANCE section and the last page.)

Step 2: SYSTEM ACTIVATION

TILLER HANDLE MODEL
When the total operating hours have reached the preprogrammed hours, the red OIL lamp will flash while the engine is running. This indication will repeat until you cancel the system activation.

REMOTE CONTROL MODEL
When the total operating hours have reached the preprogrammed hours, the red OIL lamp will flash and a buzzer will sound. This OIL lamp indication will repeat until you cancel the system activation.

The buzzer sound will be stopped after approx. thirty seconds.

Ignition key is turned to the “ON” position while engine is not running.
This system activates, the red OIL lamp will flash but no buzzer sound. This OIL lamp indication will repeat until you cancel the system activation.

Step 3: CANCELLATION

TILLER HANDLE MODEL

  1. Start the motor.

    Make sure that the motor is in “Neutral” and the throttle grip is fully closed.

The engine stops when the engine stop button is kept to push more than 0.5 seconds.

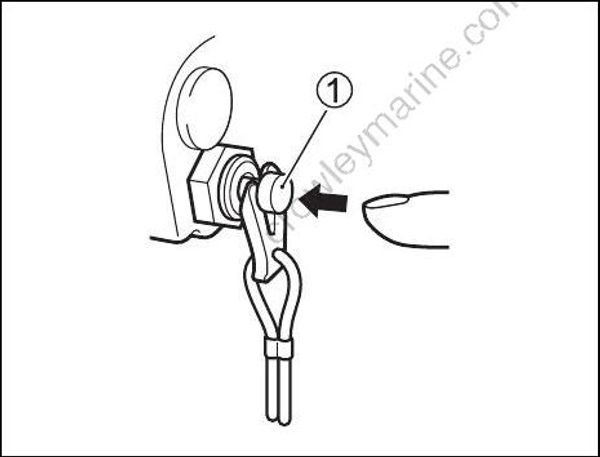

  1. Push the engine stop button (1) three times within three seconds so that the engine should not stall.

    The red OIL lamp is no longer lit when the reminder cancellation is successful.

  1. Stop the engine.

Step 4: REMOTE CONTROL MODEL

  1. Shift into “NEUTRAL”.
  2. Turn the ignition key to the “ON” position.

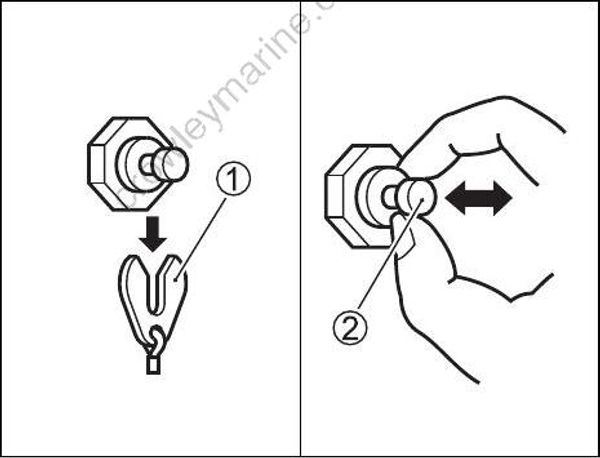

  3. Pull out the emergency stop switch plate (1).
  4. Pull up the emergency stop switch knob (2) three times within 3 seconds. The red OIL lamp is no longer lit when the reminder cancellation is successful. A short beep will be heard if the cancellation is successfully finished.

  1. Turn the ignition key to the “OFF” position.
  2. Set the plate (1) in the original position.

• Canceling of the system activation is possible regardless of whether or not the engine oil has been replaced. Once the system has operated, however, Suzuki strongly recommends that the engine oil be replaced before canceling the system activation.
• Even if the engine oil has been replaced with the system not operating, it is still necessary to perform the cancellation.
