DIAGNOSTIC SYSTEM
If abnormal conditions exist in any sensor signal being sent to the control unit, the self-diagnostic system warns of the abnormal condition.
TILLER HANDLE MODEL

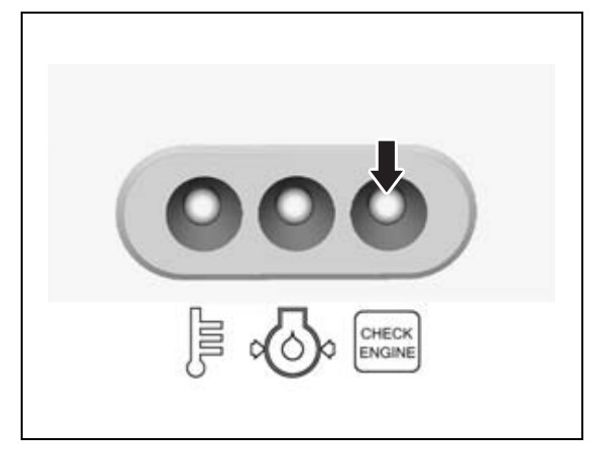

If this system activates, the CHECK ENGINE lamp will flash.
Also incorporated is a fail-safe provision that allows the operation at a restricted speed even under such a failure condition.
• Each time the starter system is operated, the CHECK ENGINE lamp will light briefly for the first two seconds.
• The failed system can be identified by the mode of the CHECK ENGINE lamp flashing. This diagnostic code is designed to appear while the engine is running.
REMOTE CONTROL MODEL
When engine is running.
If this system activates, the CHECK ENGINE lamp will flash and a buzzer will sound.
The buzzer sound with diagnostic system activating will be stopped after approx. thirty seconds.
Ignition key is turned to the “ON” position, when engine is not running.
If this system activates, the CHECK ENGINE lamp will flash.
Also incorporated is a fail-safe provision that allows the operation at a restricted speed even under such a failure condition.
• The CHECK ENGINE lamp will light briefly when the ignition key is turned to the “ON” position.
• The failed system can be identified by the mode of the CHECK ENGINE lamp flashing. This diagnostic code is designed to appear while the ignition key is turned on.
If the diagnostic system activates while you are operating your outboard motor, there is an abnormal condition in one of the sensor signals of the control system. Consult your authorized Suzuki marine dealer for repair of the control system.
