Owner's Manual DF20A, DF15A, DF9.9B Wiring Diagram

Added Jul 24, 2020Updated Jun 8, 2021
Owner's Manual DF20A, DF15A, DF9.9B Wiring Diagram
Suzuki Marine

Sections:

  1. WIRING DIAGRAM
  2. DF9.9BE/15AE/20AE (ELECTRIC STARTER MODEL)
  3. DF9.9BTH/15ATH/20ATH (POWER TILT MODEL)
  1. DF9.9BR/15AR/20AR (REMOTE CONTROL MODEL)
  2. DF9.9BT/20AT (POWER TILT MODEL)

WIRING DIAGRAM

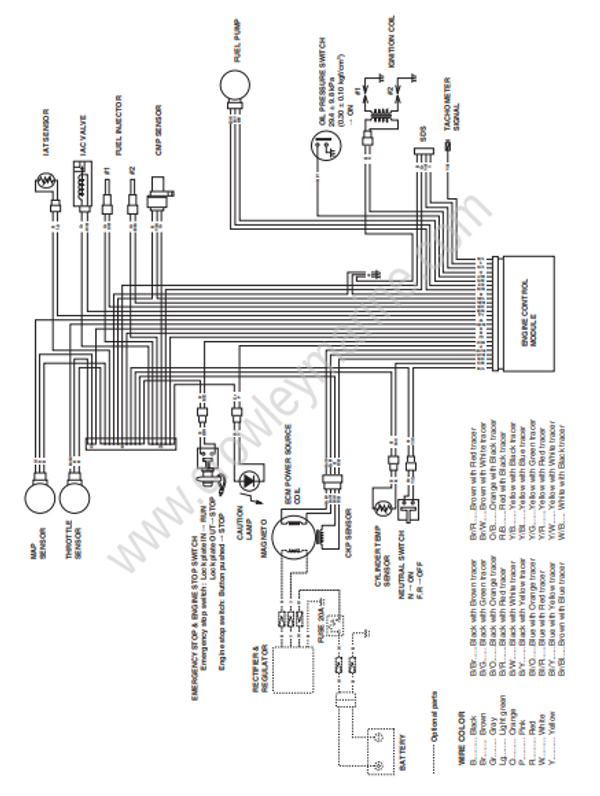

DF9.9B/15A/20A (RECOIL STARTER MODEL)

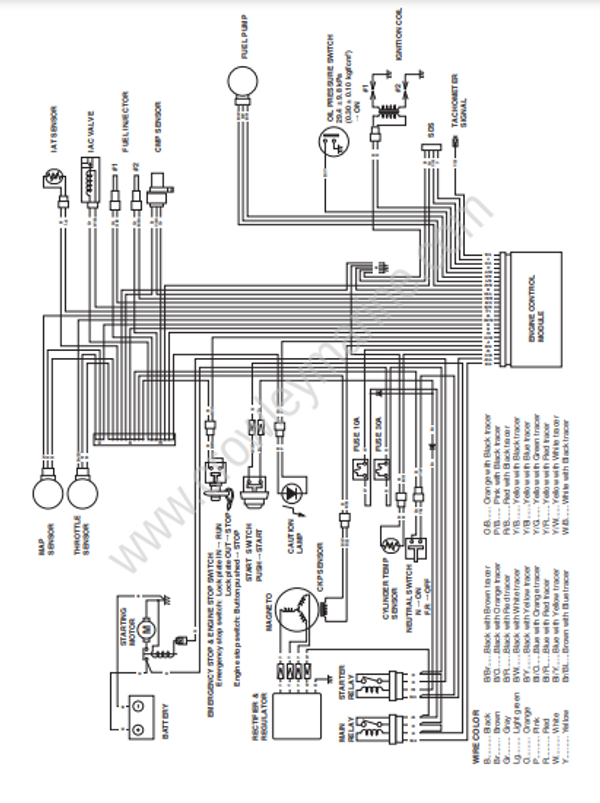

DF9.9BE/15AE/20AE (ELECTRIC STARTER MODEL)

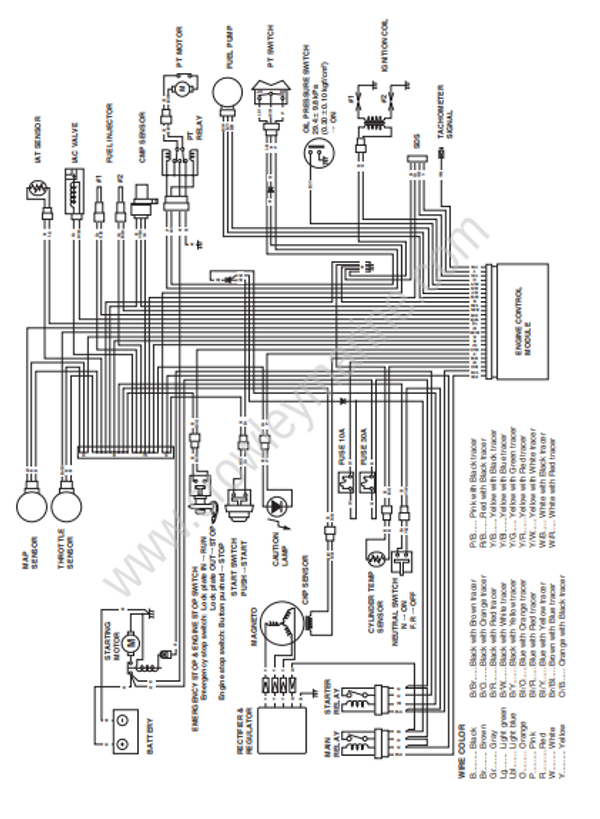

DF9.9BTH/15ATH/20ATH (POWER TILT MODEL)

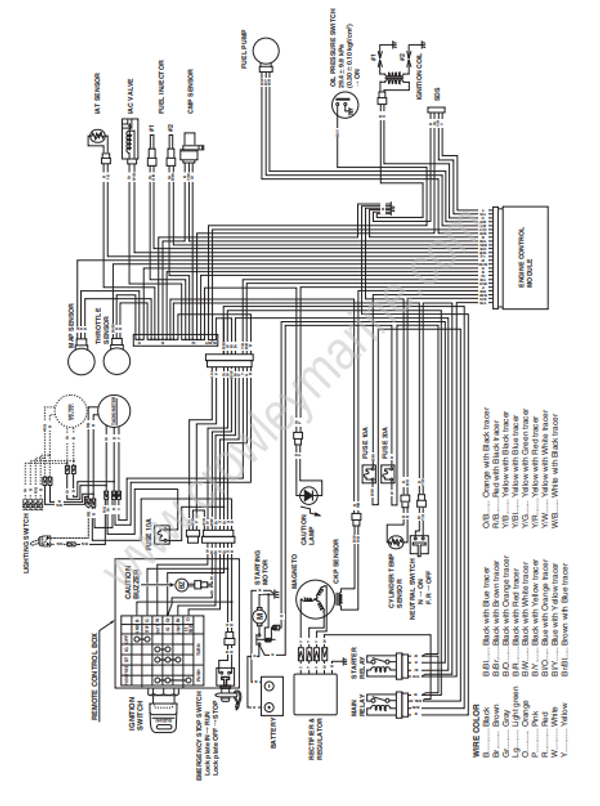

DF9.9BR/15AR/20AR (REMOTE CONTROL MODEL)

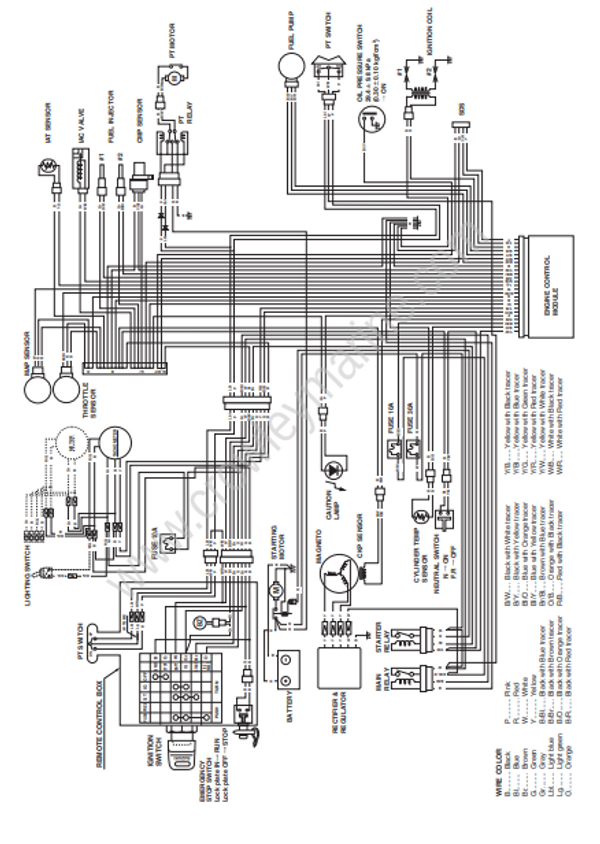

DF9.9BT/20AT (POWER TILT MODEL)
