Owner's Manual DF20A, DF15 Wiring Diagram

Added Jul 24, 2020Updated Nov 10, 2021
Owner's Manual DF20A, DF15 Wiring Diagram
Suzuki Marine

WIRING DIAGRAM

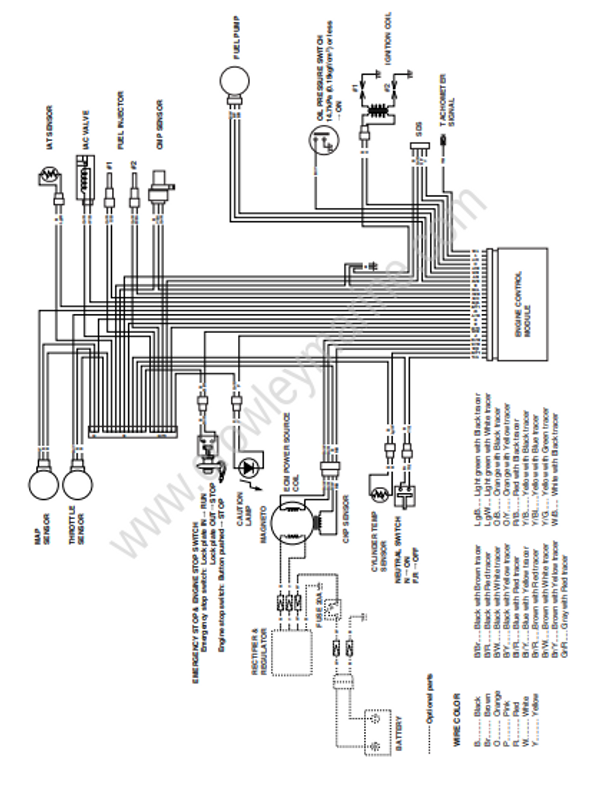

DF15A/20A (RECOIL STARTER MODEL)

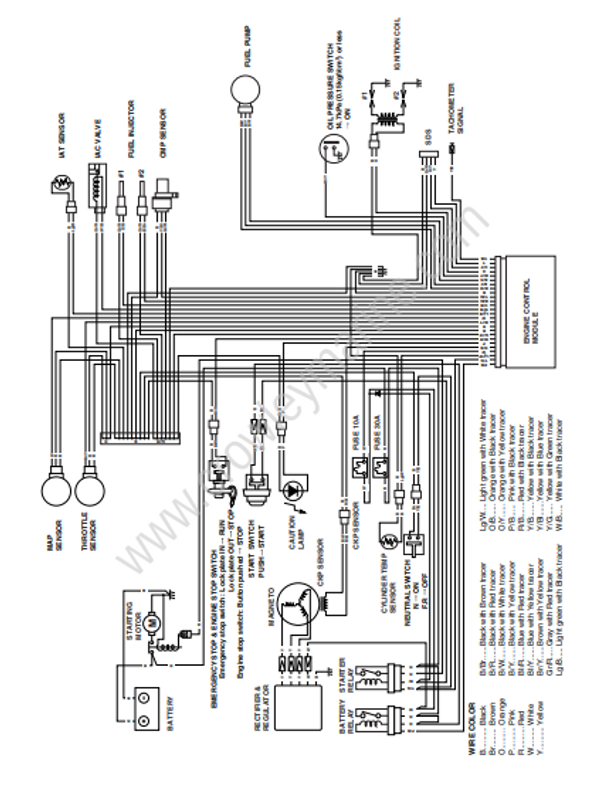

DF15AE/20AE (ELECTRIC STARTER MODEL)

Sources & Attachments

application/pdfOwner's Manual DF20A, DF15 Wiring Diagram
